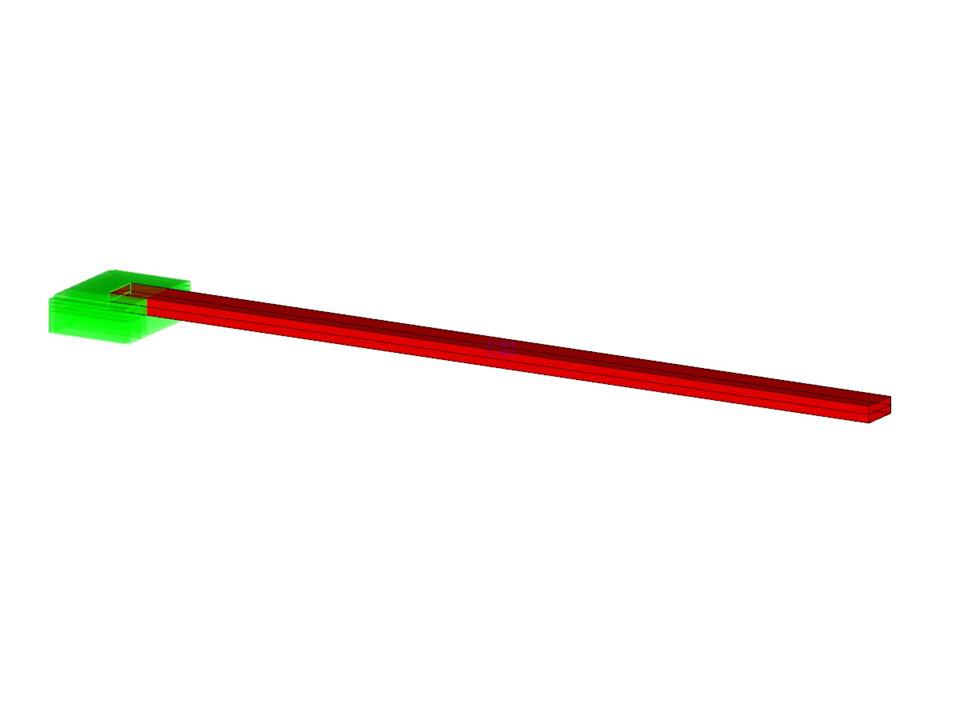

A bimetallic strip is composed of the invar and copper. The left end of the bimetallic strip is fxed, and the right end is free, loaded by temperature difference. While neglecting self-weight, determine the deflection of the bimetallic strip (free end).
Verification Example 000078 | 2
| Number of Nodes | 12 |
| Number of Lines | 20 |
| Number of Surfaces | 11 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.000 tons |
| Dimensions | 0.33 x 0.02 x 0.01 feet |
| Program Version | 5.10.01 |
