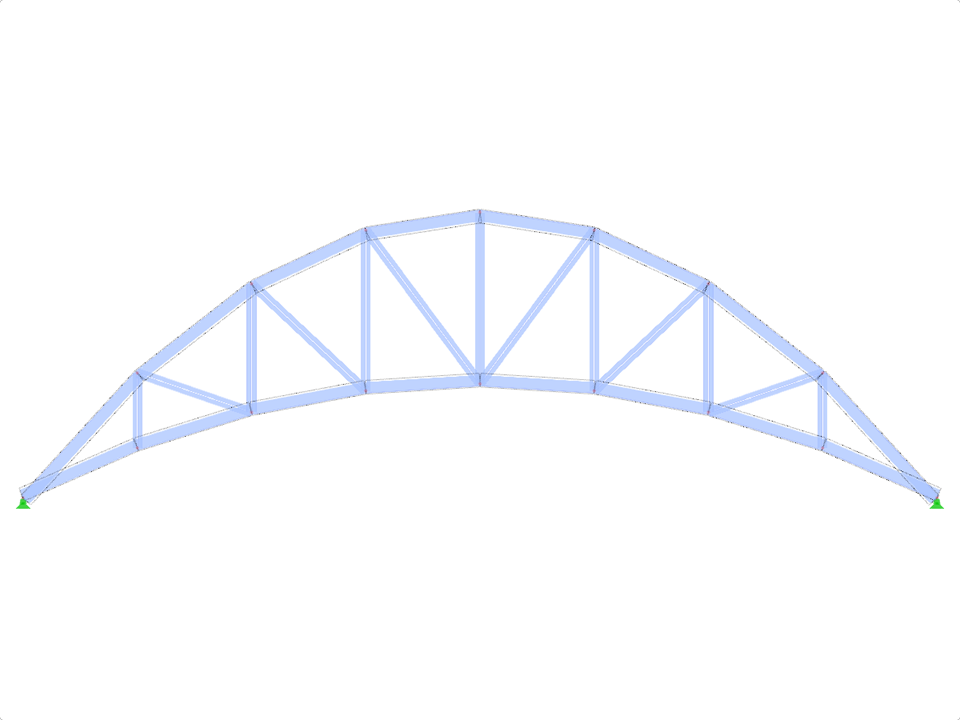

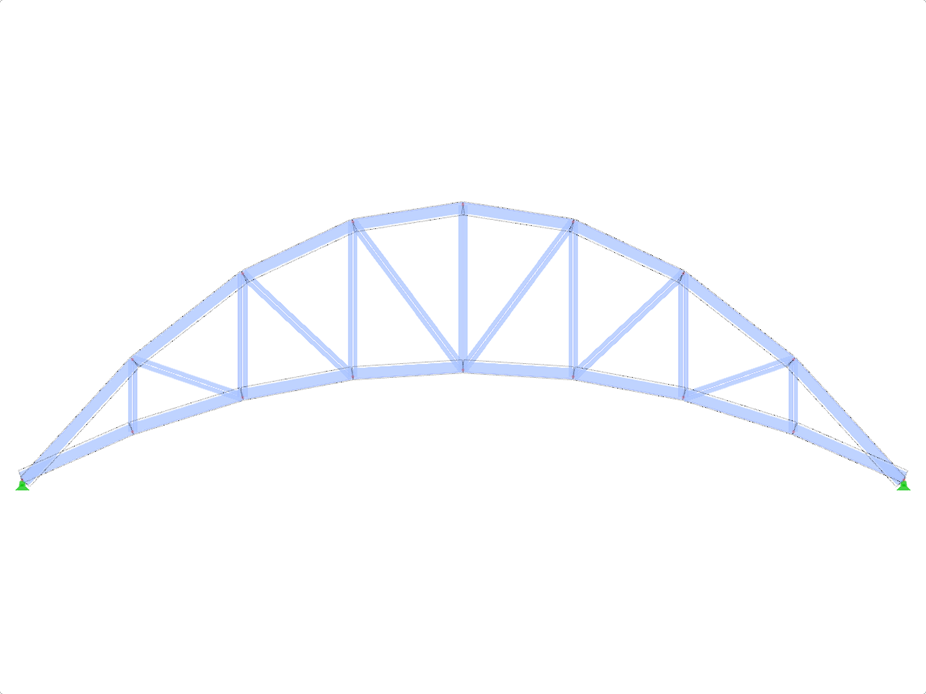

Bowstring truss (parabola - flat chords)Input via total Length (L)/ first and last bays (L_1)/ middle bays (L_2)/ bottom and top chord height (H_1 and H_2)
FT750p-plg | Bowstring Truss
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 29 |
| Number of Members | 29 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.936 tons |
| Dimensions (Metric) | 16,000 x 5,000 x 0,000 m |
| Dimensions (Imperial) | 52.49 x 16.4 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
