Pastry Production and Storage Facility in Montbert, France

In a dynamic and constantly evolving market, the installation of a pastry production and storage facility in Montbert represents a strategic opportunity to meet growing consumer demand. The GH-Girard Hervouet company, a customer of Dlubal Software, was responsible for the steel construction, cladding, roofing, and metal work.

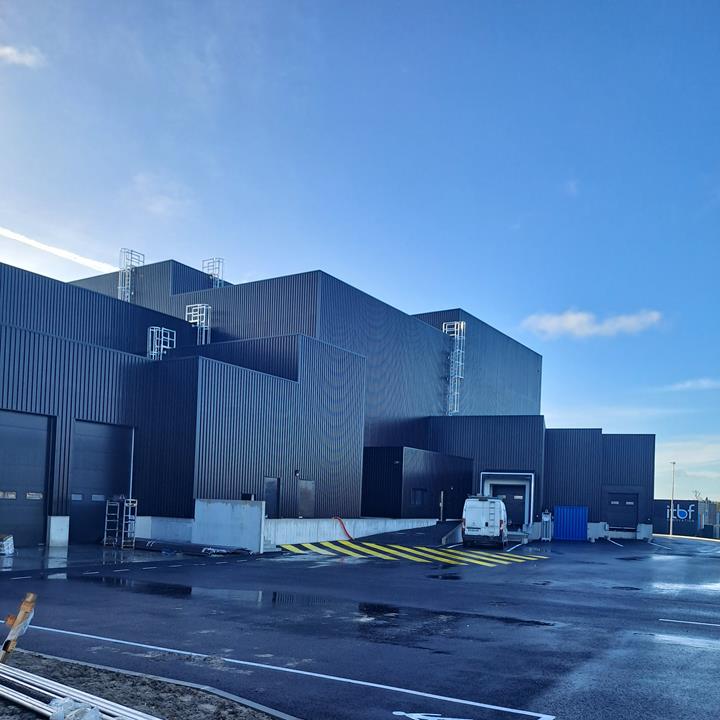

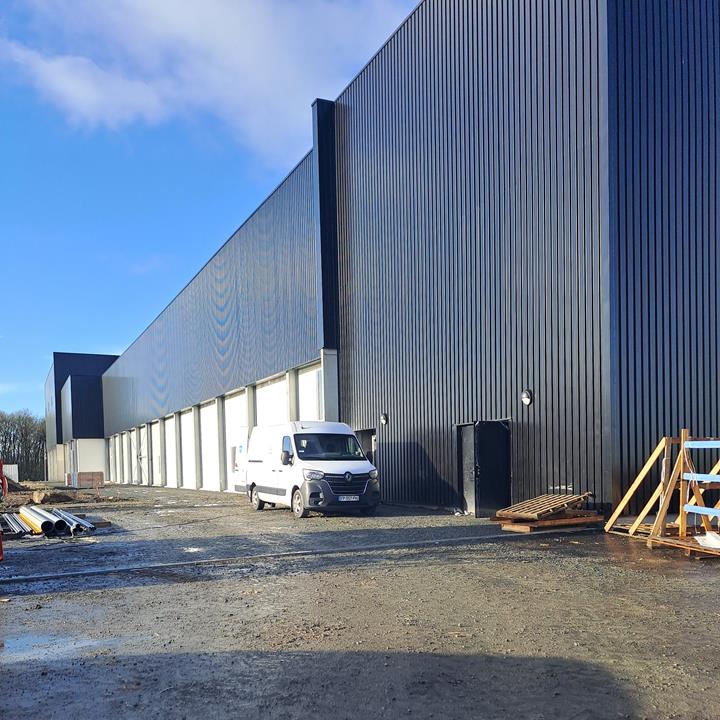

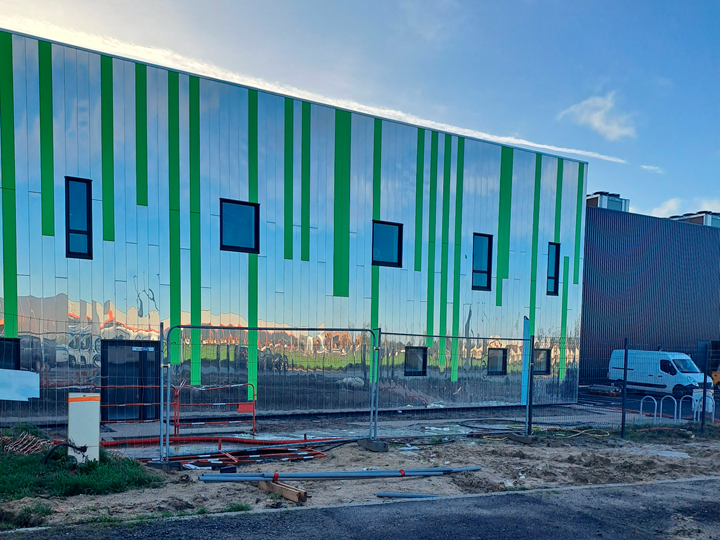

The production and storage facility covers a total area of over 7,000 m² (75,347 ft²). The aim is to create a modern and high-quality infrastructure dedicated to the production and preservation of quality products, while improving the efficiency of production processes. The planned structure combines a steel and concrete frame.

Technical Details

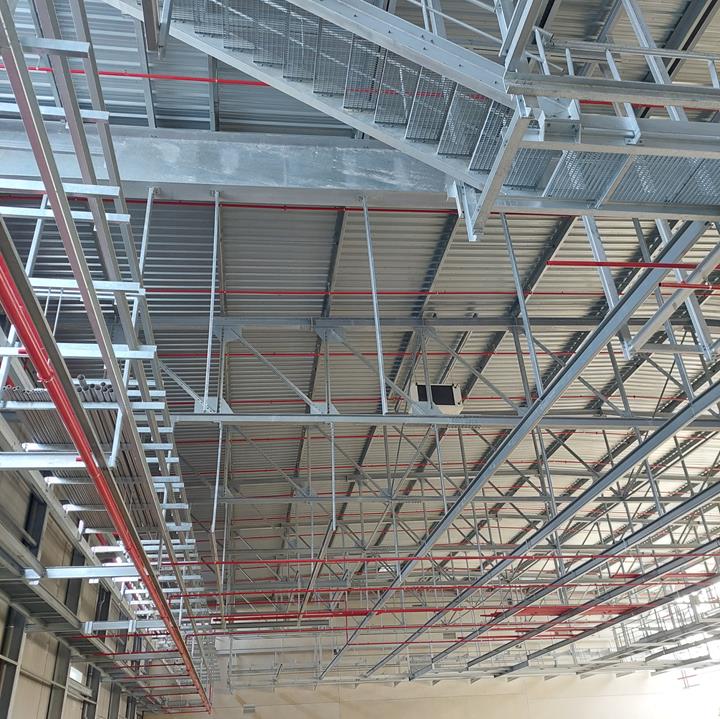

The technical design of the production hall is based on steel trusses with a span of up to 40 m (131 ft). The truss girders will be equipped with cold panel supports under the bottom chord, thus providing optimal thermal insulation of the pastry storage. Furthermore, a technical space will be integrated within the height of the truss structure, designed to accommodate the equipment, walkways, and network ducts required for the smooth operation of the production facility.

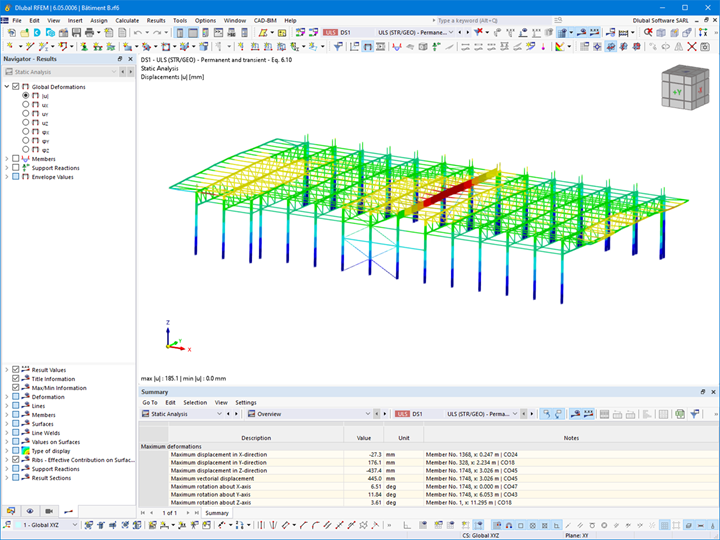

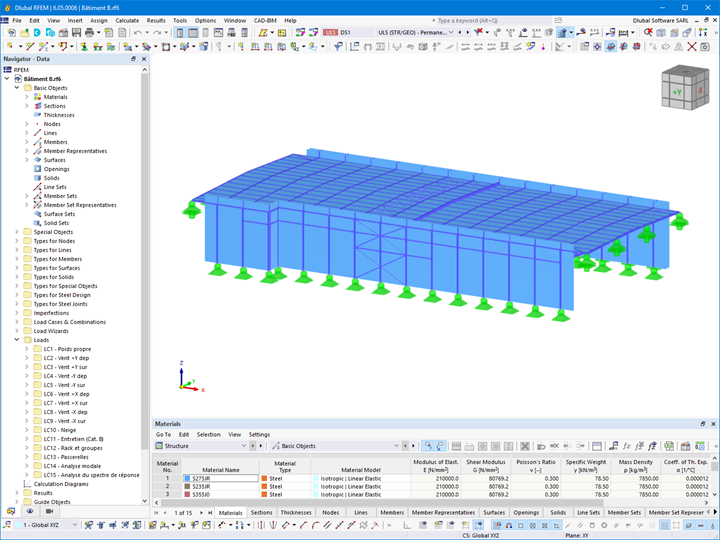

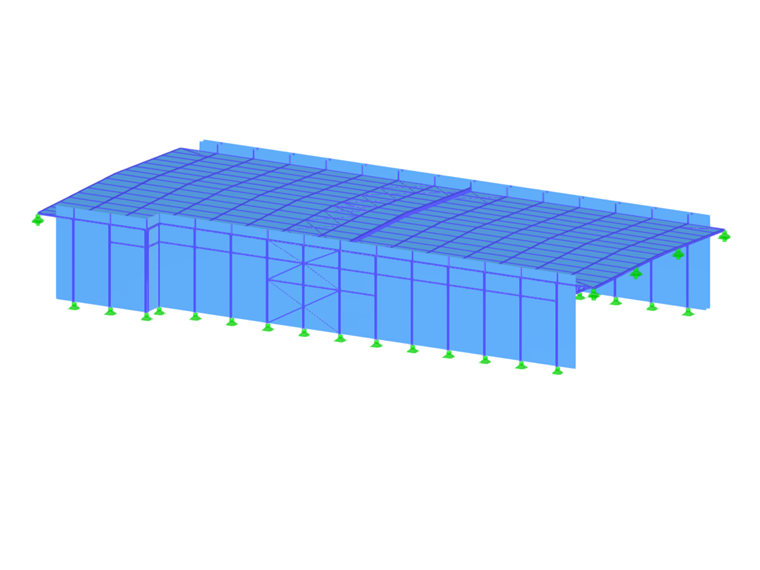

The steel structure was modeled and structurally analyzed using the RFEM 6 program. Various steel connections were designed using the "Steel Joints" add-on.

This project demonstrates a commitment to excellence and innovation in the food industry.

Location 44140 Montbert
France
Project Management SCI-Mill-Boulangerie ANGE
Architecture and Project Management ADENT Ingénierie

Design and Construction GH HERVOUET



Project Specifications

Model Data

Number of Nodes 620
Number of Lines 1321
Number of Members 1236
Number of Surfaces 22
Number of Solids 0
Number of Load Cases 15
Number of Load Combinations 139
Number of Result Combinations 0
Total Weight 155.880 tons
Dimensions (Metric) 182.091 x 12.800 x 195.950 m
Dimensions (Imperial) 597.41 x 41.99 x 642.88 feet
