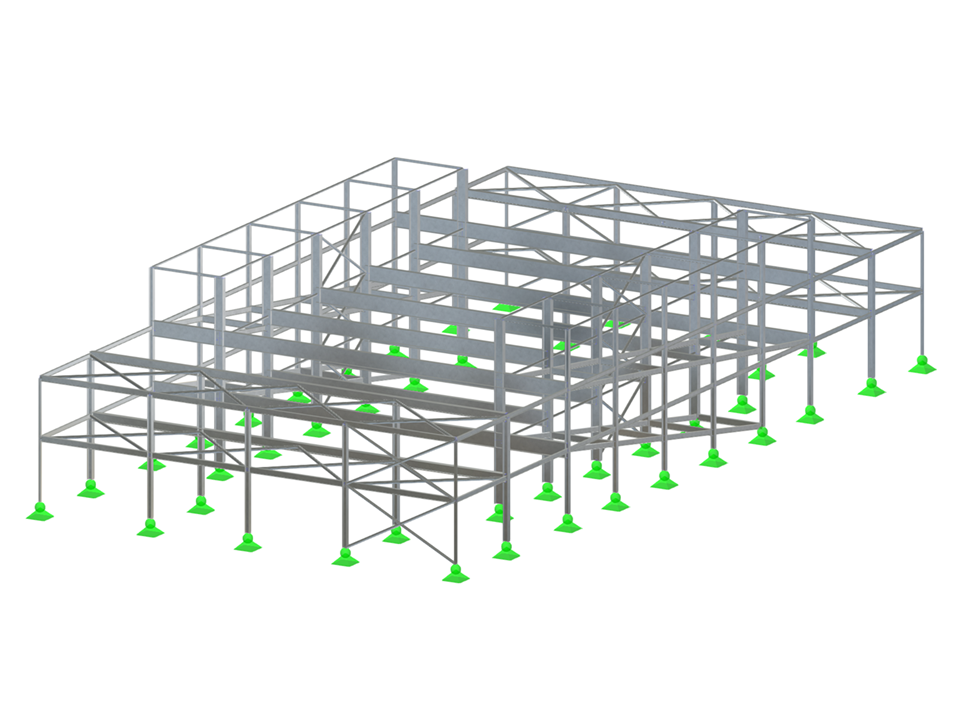

The steel parking garage in Čelákovice is an ingeniously designed two-story structure with plan dimensions of 47.62 × 24.5 m and a total height of 9.4 m. The load-bearing system consists of frames made of HEA 500 and welded crossbars, supplemented by gable walls made of HEA 220 and horizontal beams IPE 300. The structure also includes canopies connected to the main part, and spatial rigidity is ensured by braces made of circular tubes. The author of the model is Irina Okilova from the Department of Steel, Timber, and Glass Structures at CTU in Prague. The work is part of the Dlubal Talent CTU competition.
Steel Structure Parking Garage
| Number of Nodes | 290 |
| Number of Lines | 439 |
| Number of Members | 356 |
| Number of Surfaces | 41 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 22 |
| Number of Result Combinations | 0 |
| Total Weight | 104,827 t |
| Dimensions (Metric) | 24,500 x 9,760 x 47,620 m |
| Dimensions (Imperial) | 80.38 x 32.02 x 156.23 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
