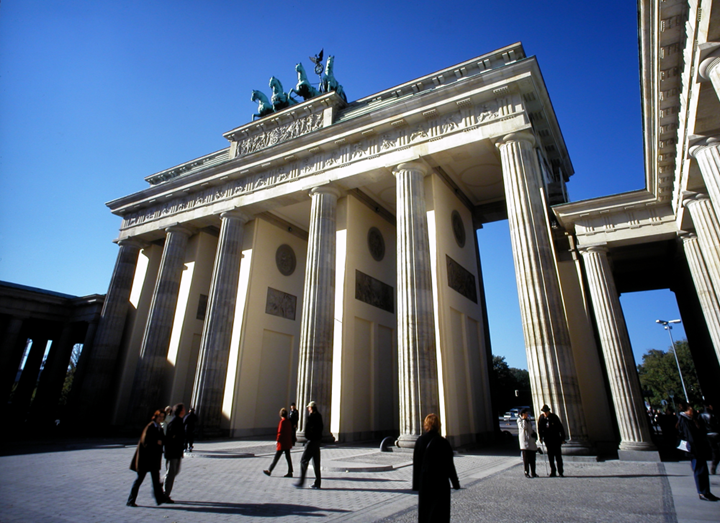

Column Substitution for Brandenburg Gate in Berlin, Germany

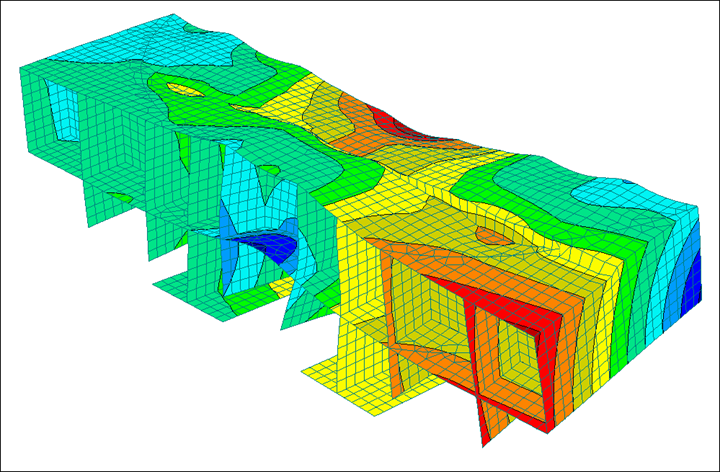

During the final days of World War II, a column segment of the Brandenburg Gate was severely damaged by grenade attacks. When the gate was reconstructed in 2002, the German engineering office of J. Sando in Weimar developed a method by which it was possible to substitute the column segment. The special supporting structure necessary for the substitution process was designed using RFEM.
Structural Engineering Office
Ingenieurbüro für Statik
Dipl.-Ing. Jörg Sando, Weimar, Germany
Structural Analysis (Testing)
Prof. Frank Prietz, Berlin, Germany
Betrieb für Bauwerkssicherung, Klettbach, Germany
CARO Restaurierung und Technologie GmbH, Berlin, Germany
EBK Ingenieurbüro für Bauwerksdiagnostik, Weimar, Germany
Stiftung Denkmalschutz Berlin by order of
Senate Administration for Science, Research and Culture of Berlin
Basic Technical Conditions
The structure load is transferred across masonry arcs into the columns. Lateral supporting is not possible without deconstruction. Engineer Sando has developed a method by which the load is redirected within the column. By constantly checking the force and displacement, it was possible to monitor the work steps at all times. Critical moments, of course, had to be excluded for this building.

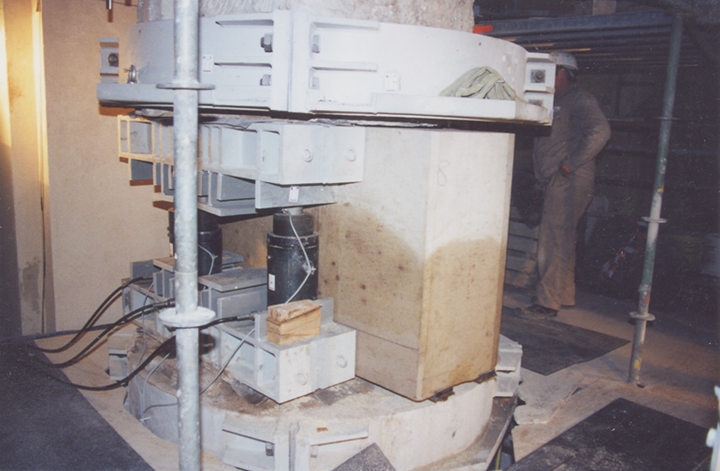

Preparatory work for load increase was followed by mounting the hydraulic supporting structure step by step. The new center piece, which is exactly half of the column segment, was inserted after an intended vertical elongation of 0.2 in. With both side parts, it is now clearly discernible as the new segment. The method chosen was a great success.
