Open-Air Skating Rink Roof Structure, Pasta Island, Jelgava, Latvia

A timber roof structure was recently constructed over an existing open-air ice rink in Jelgava, Latvia. The project, located on Pasta Island, serves as a multi-functional building for recreational, cultural, and social activities.

Roofing of Outdoor Ice Rink, Pasta Island, Jelgava, Latvia

553x

Timber Roof Structure

Because the skating rink was located next to an existing pedestrian bridge and building, the shape and appearance of the roof needed to blend in well with the surroundings. For this reason, curved glued-laminated timber roofing was chosen.

Structure

The roof structure includes a partial frame supported on multiple columns. On the lower side of the structure is a tapered column which is rigidly connected to the curved roof beam. On the higher side, a pinned tapered column supports the structure. The lateral support system includes three spans of circular rod X-bracing.

The total height of the roof amounts to 24 ft, 3 inches on the higher side and 9 ft, 7 inches on the lower side, while the span measures 74 ft, 2 inches. The building is enclosed at the lower side with a membrane structure.

In 2018, the roof structure received 1^st place in the "Timber Building" category at the annual "Building of the Year" awards in Latvia.

Project Specifications

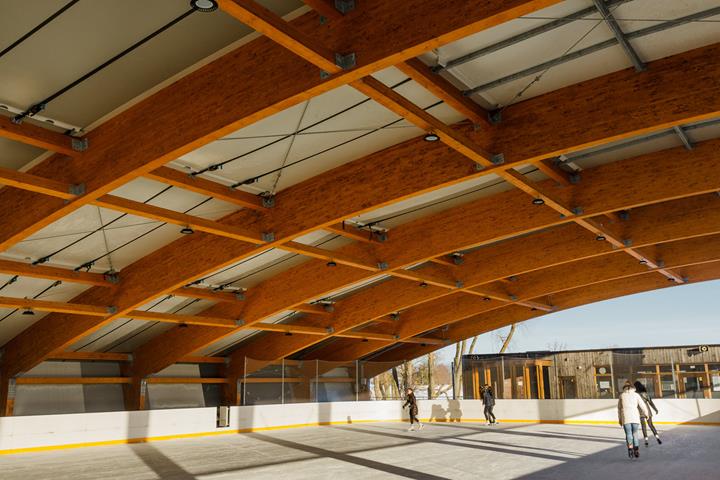

Roof Structure of Open-Air Skating Rink, Pasta Island, Jelgava, Latvia (© Rodentia SIA)

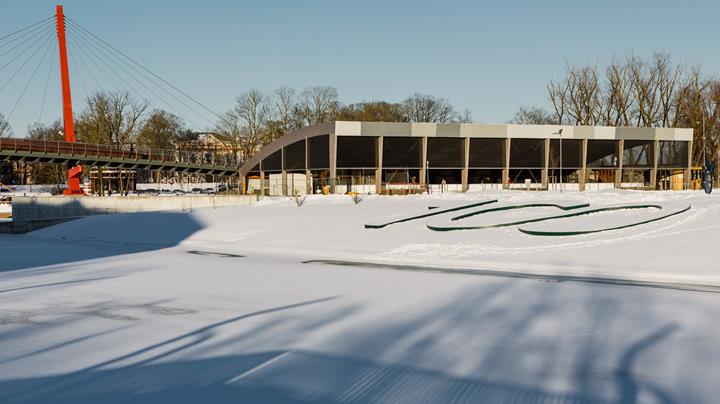

Canopy During Construction (© Rodentia SIA)

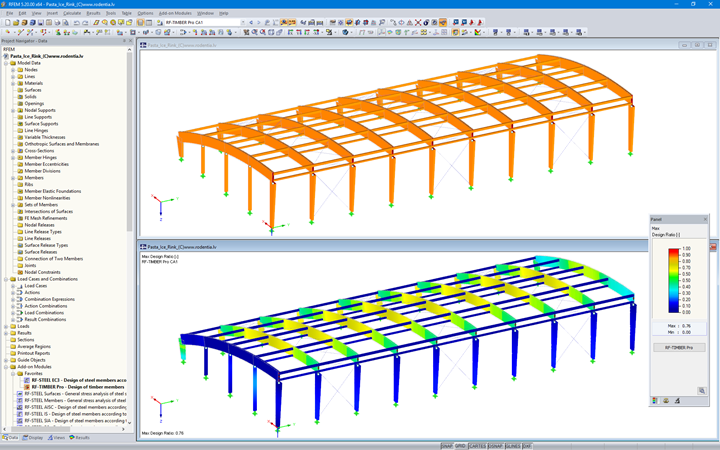

3D Model of Roof (Top) and Design Results in RF-TIMBER Pro (Bottom) in RFEM (© Rodentia SIA)

Model data

Number of Nodes 229

Number of Lines 317

Number of Members 317

Number of Load Cases 14

Number of Load Combinations 312

Number of Result Combinations 3

Total Weight 51.420 tons

Dimensions 76.62 x 154.18 x 23.27 feet

Program Version 5.20.00
