Cruise Terminal | Cruise Center 8 | Warnemünde, Germany
In addition to the cruise terminal located at Berth 7, a second cruise ship check-in terminal was constructed in Warnemünde. There are occasions when three ships may call at the same time.
ROSTOCK PORT GmbH
BASTMANN + ZAVRACKY
BDA ARCHITEKTEN GMBH
INROS LACKNER SE

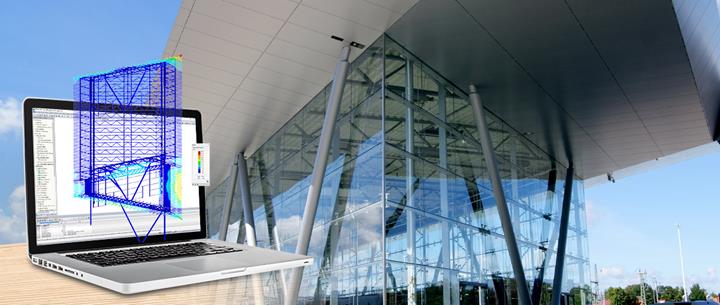

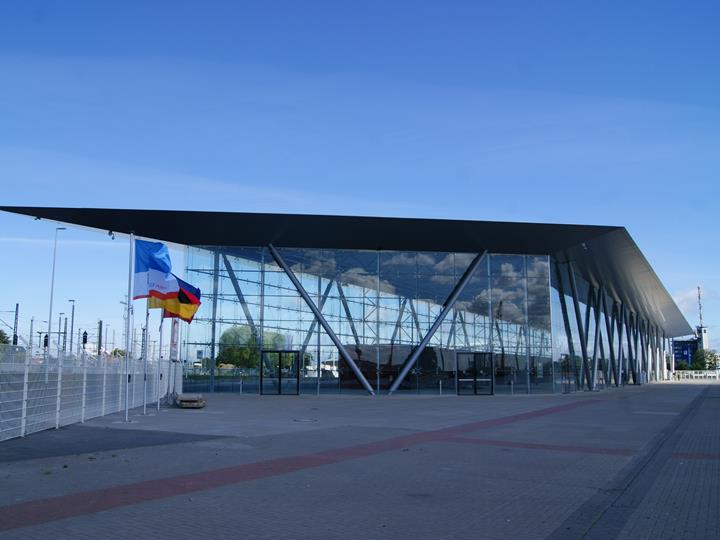

StructureThe new terminal is a four-sided, transparent filigree structure which includes passport, customs, and ticketing facilities. On the land side, solid box structures for building services and restroom facilities were constructed.

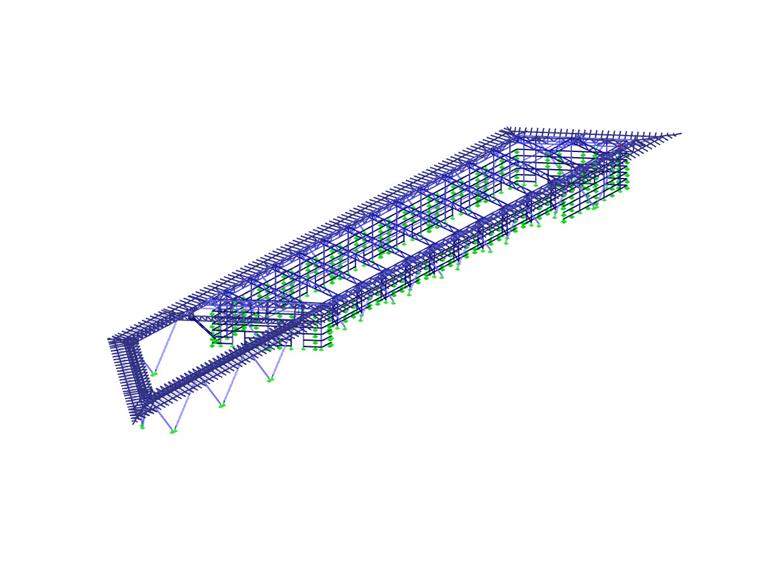

The primary supporting structure includes V-shaped tubular steel columns supporting I-beam truss girders. Due to poor soil conditions in the port area, the columns are further supported on piles.

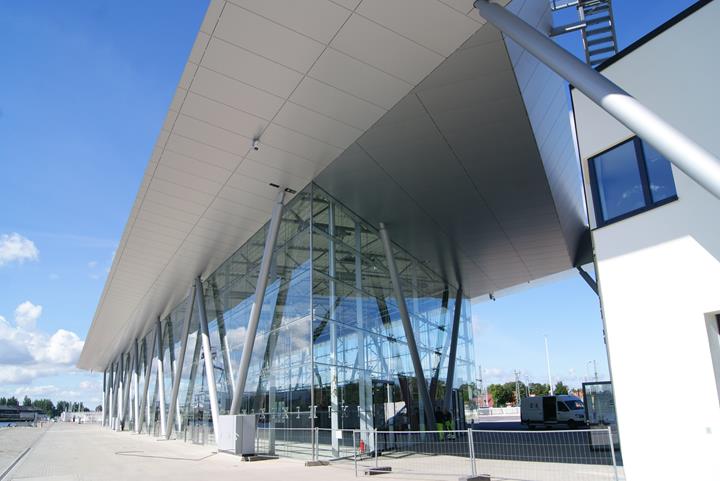

In addition to the check-in hall, there is a large service building for baggage handling as well as customs, police, and port personnel. The glazed terminal building roof provides a narrow covering over the entire terminal building but has no structural connection to it.

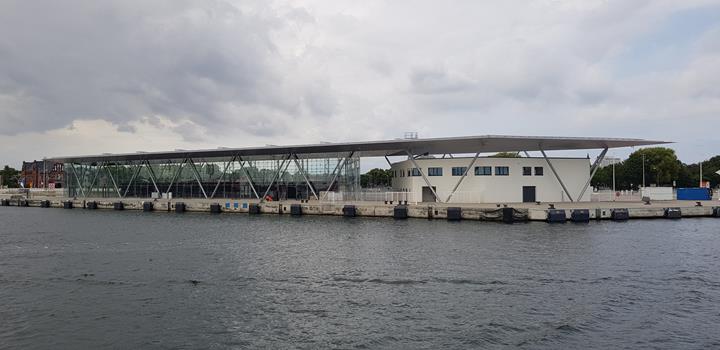

With the trapezoidal building shape, the architect has additionally provided a terminal wharf.
Project LocationAm Passagierkai, Liegeplatz 8
18119 Rostock, Germany
