Spiral Staircase with Glass Stairs, Zlín, Czech Republic

Structures Analysed with Dlubal Software

  • Customer project

Customer Project

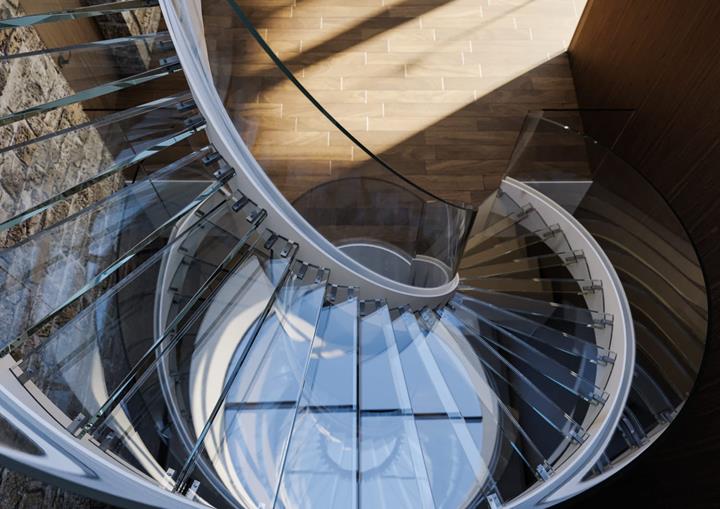

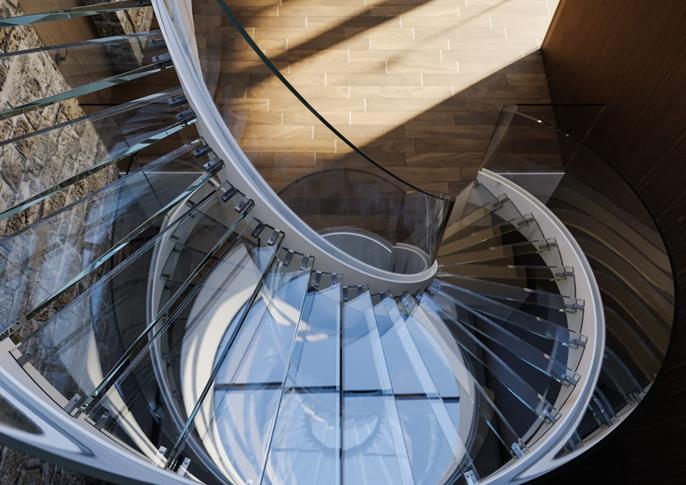

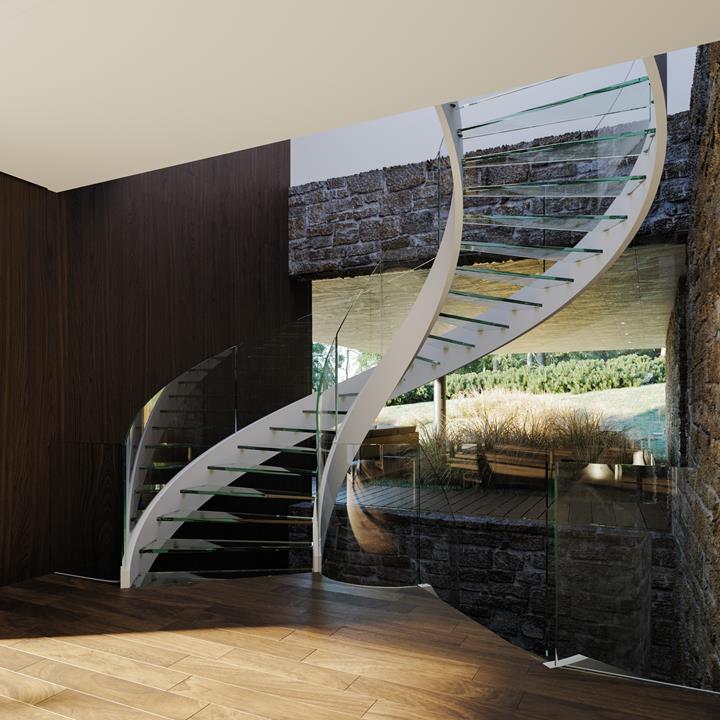

The goal was to design a spiral staircase with glass steps and railings spanning 2 floors. With sophisticated anchoring details and helical stringers created from subtle rectangular hollow sections, a light and elegant staircase was formed. The interior spiral staircase is located inside the educational, training, and rehabilitation center in the city of Zlín.

Structural Analysis Ing. Vítězslav Hapl
Ing. Jan Mařík, Ph.D.
Ing. Jan Seifert
Architectural Design CUBE DESIGN s.r.o.
Construction STAIRS design s.r.o.

Model Parameters

Model

Structure

From the structural point of view and excluding the rigidity of the reinforced concrete structure, the staircase can be separated into two parts – the 1st to 2nd floor section and the 2nd to 3rd floor section. The staircase's supporting structure consists of internal and external helical stringers. The stringers are fixed to the landings (welded to the pre-built anchor elements) and to the 1st-floor slab (anchored via Hilti adhesive anchors).

The stringers are made of welded closed hollow sections with recessed flanges. The upper flange recess creates a groove for mounting a glass railing, while the lower flange recess is purely an architectural element. The stair treads are made of laminated tempered glass.

The treads are attached to a cantilevered box section (1 in wide x 1 in deep), further welded to the stringer web at four locations. The glass tread is supported on the cantilevers by an elastic band and fastened with metric screws. Due to the rigidity of the step-stringer connection, the steps are considered in the computational model.

The inner and outer stringer railings are made of laminated tempered glass bent to the appropriate radius. The railing is inserted into the stringer groove, positioned by elastic spacers, and finally glued into the groove with a suitable elastic material. The railing is considered only as a load and therefore has no load-bearing function.

Model

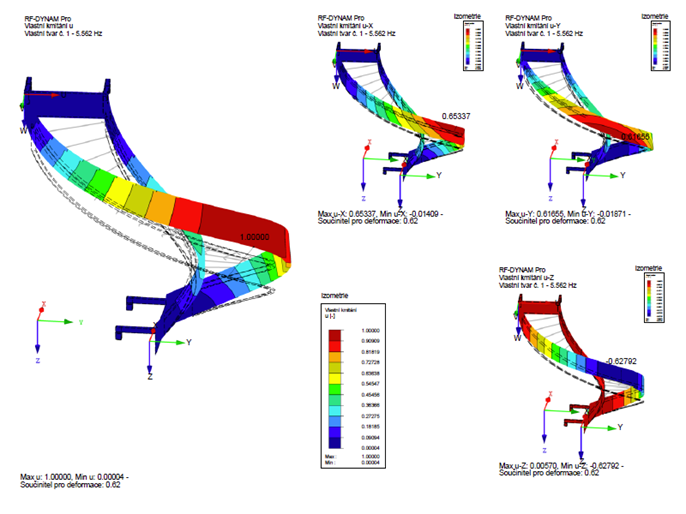

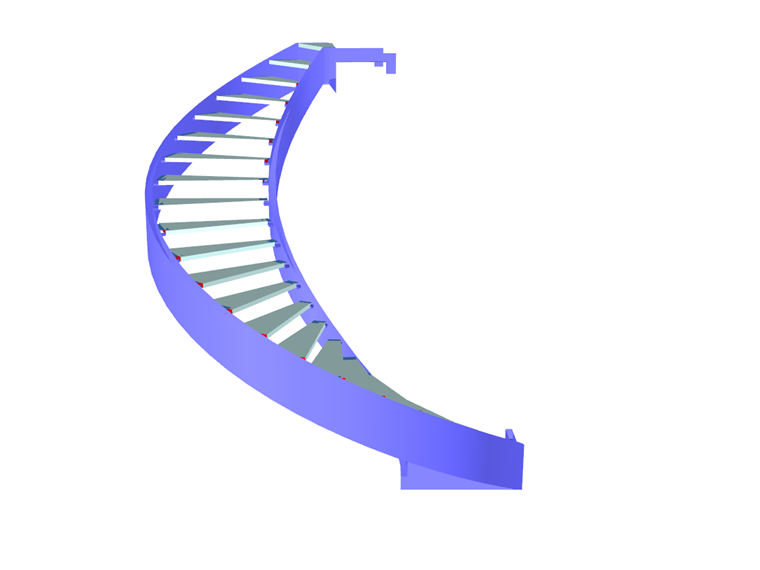

Due to the above-mentioned staircase floor independence, only one section of the staircase is modeled. The stringers and anchor elements are modeled with plate elements, and the stair treads are modeled as members. To estimate the maximum glass step loading and to evaluate the steel stringer maximum loading, two different stiffness values were used for the glass step connection and the support cantilever. The restraint in the reinforced concrete slab is modeled with a nonlinear failure under tension, elastic support applied to the anchor element’s individual surfaces.

Keywords

Steel stringers Glass steps RFEM
