The Timber Design add-on is right for you! It allows you to perform the cross-section resistance design and stability analysis of timber member and plate structures in the ultimate limit state.
Structural Analysis and Design Software for Timber Structures
Structural Analysis and Design Software for Timber Structures
Structural Analysis and Design Software for Timber Structures
Structural Analysis and Design Software for Timber Structures
The program offers a wide range of features, including internal force calculation, compressive design, identification of the strong axis, shear force reduction, and the design of curved members. You can also increase shear resistance, apply code-dependent settings, and view clear results with detailed cost information.

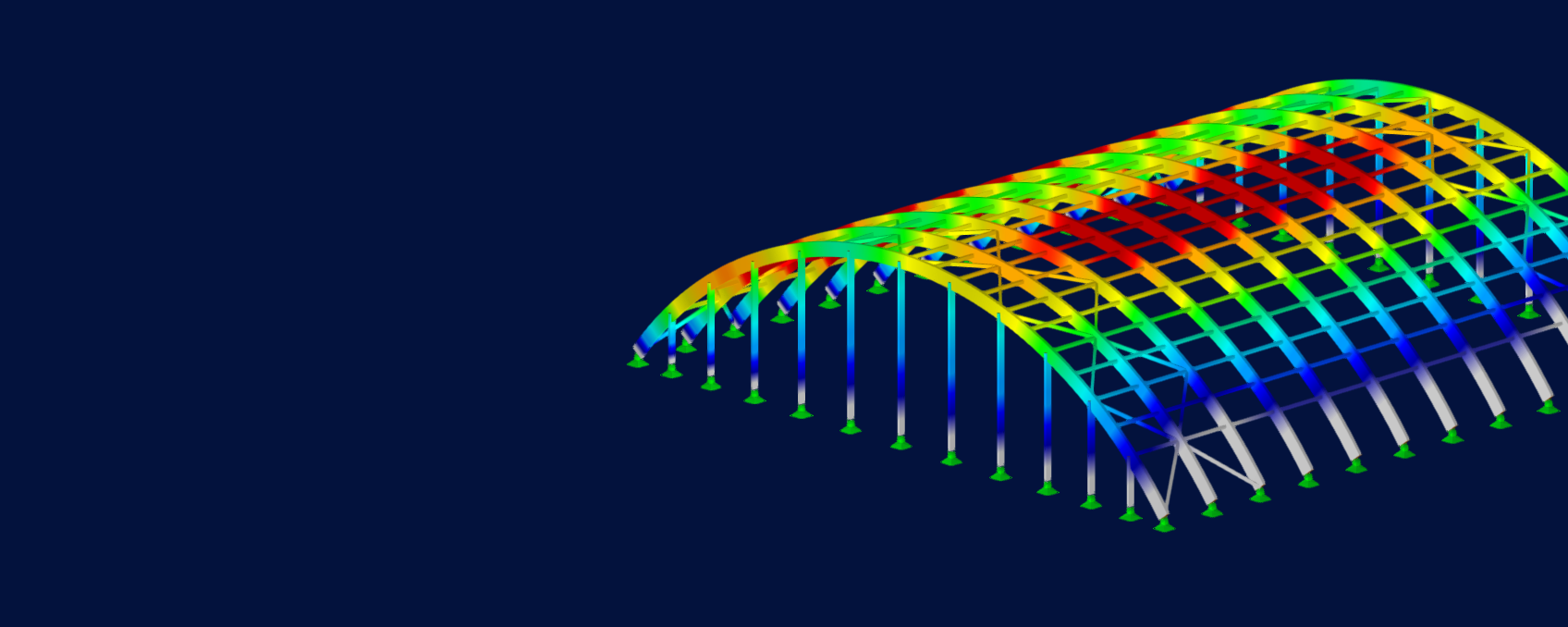

The system allows for alternative consideration of all effects for the stability analysis when determining internal forces in RSTAB (a second-order analysis, imperfections, stiffness reduction, possibly in combination with the Torsional Warping [7 DOF] add-on).
The striking 26-meter-high folded timber shell crowns the new event arena at Knies Children’s Zoo. PIRMIN JUNG Schweiz AG used RSTAB to design the curved glulam structure, stabilized by compression and tension rings, with a free-spanning timber roof formed from prefabricated V-shaped elements.
Hovering 58.5 m above the terrain, this timber-steel lookout trail winds through three towers anchored in a triangular layout. TAROS-NOVA s.r.o. used RSTAB for the design of the glued-laminated timber and steel truss structure, exposed to strong winds and ice loads in alpine conditions.
As part of a heritage-preserving restoration, Konstruktionsgruppe Bauen AG used RSTAB with the Timber Design and Steel Design add-ons to analyze and reinforce this 1852 Howe truss bridge. The timber-steel structure spans 123 m across the Iller River and now serves as a pedestrian and cycle path.

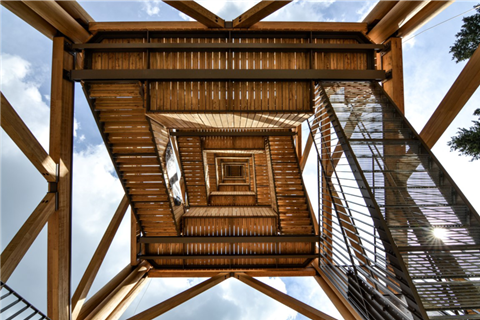

Reconstructed in 2020 after fire damage, this 43-meter-tall timber lookout tower was structurally designed by Wirth Haker PartmbB using RSTAB. The tapering lattice structure made of glued chestnut timber combines historical form with modern engineering and durability.

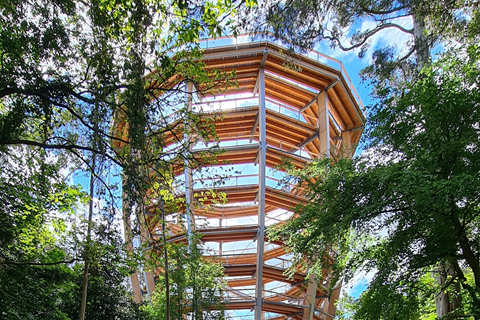

Standing 38 m tall, this timber-steel tree tower offers panoramic views of Avondale Forest and supports Ireland’s first treetop walkway. WIEHAG GmbH used RSTAB with the Timber Design add-on to design the glued-laminated structure, stabilized by a system of diagonal steel members and ring beams.

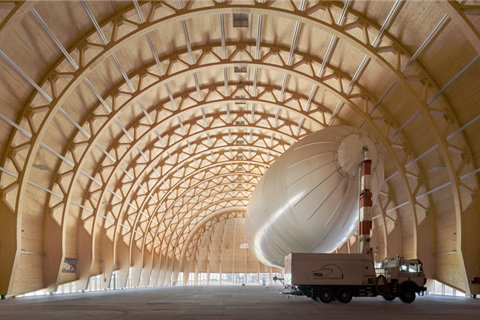

This 92 × 42 m timber hall shelters the airship Theo and serves as a multi-purpose venue. Marx Krontal Partner and Ripkens Wiesenkämper used RSTAB to design the 42 m spanning glulam arches and 592 timber connection nodes that define this sustainable structure.
Customize your individual program package and find out all the prices online!
