FAQ 002550 EN

28 February 2019

Bastian Ackermann Import / Export & BIM RFEM

I have apparently successfully exported a DXF file including isolines/isobands of the current results. Why are the isolines/isobands not visible after the import into AutoCAD?

Answer

For a successful export/import of a DXF file including isolines/isobands, the following requirements must be met:

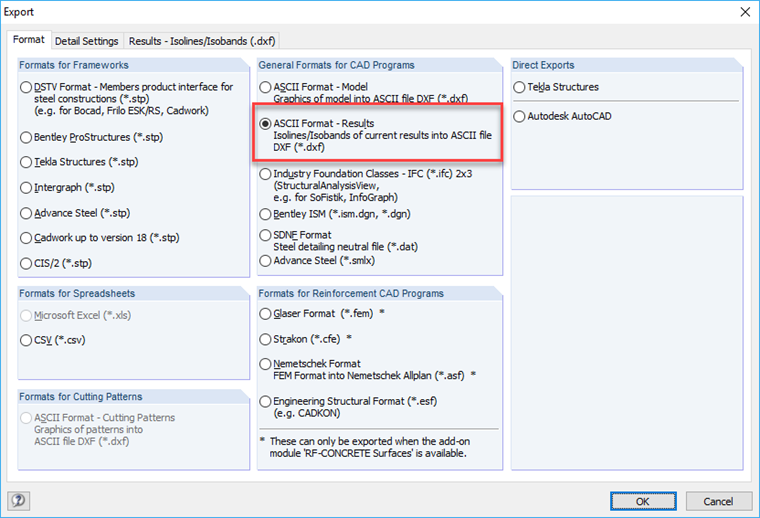

  • Activating the ASCII Format - Results option (see Figure 01)

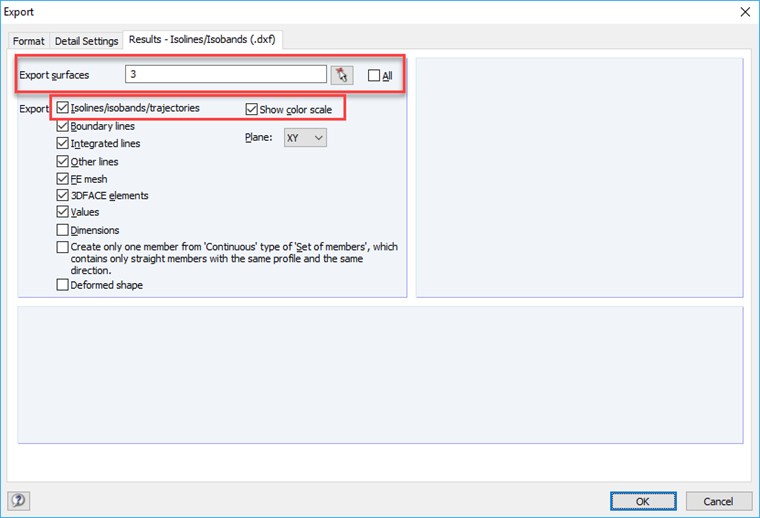

  • Exporting the corresponding surfaces and activating the export of isolines/isobands/trajectories in the 'Results - Isolines/Isobands (.dxf)' tab (see Figure 02)

Keywords

dxf isolines isobands AutoCAD import export
