Modeling | Structure RFEM RFEM 2D

When generating the FE mesh, an error message appears. This means that the tolerance for integrating the nodes into the lines is too large. What can I do?

Answer

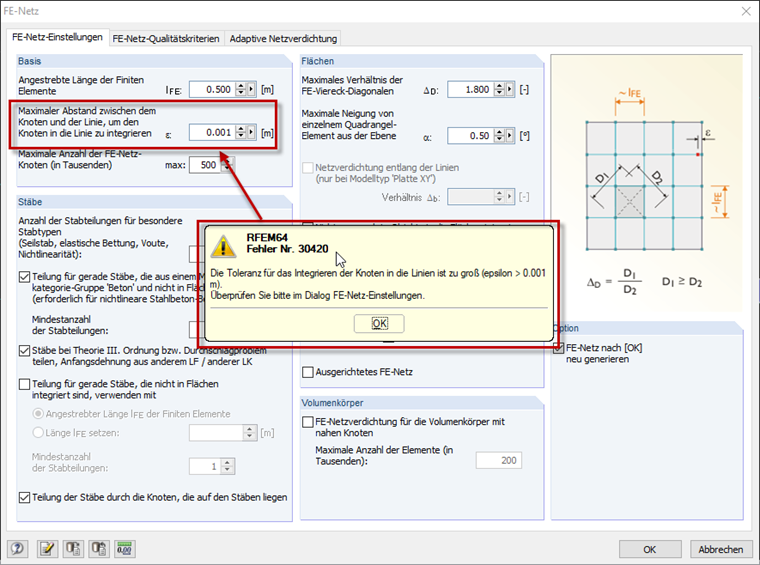

Please reduce the maximum distance between the node and the line in the FE mesh settings. Even with a setting of 0.001 m according to the figure, you can enter a smaller value. If the decimal places are adjusted by means of the corresponding settings, the value is also displayed completely.

Keywords

Tolerance FE mesh Integrate Maximum distance
