After importing a .stp file, there is a free node near each member. Why are these nodes created?

Answer

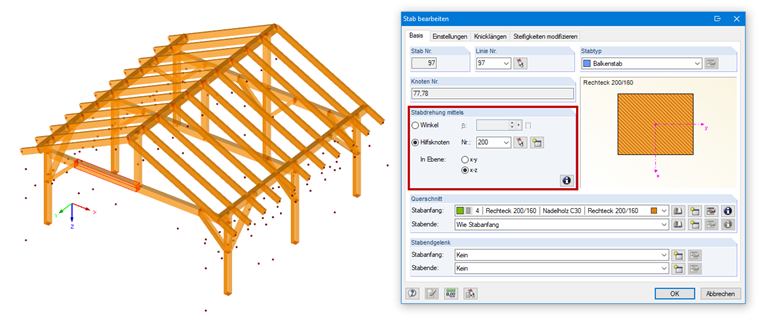

The trigger for this is due to the member rotation of a member. A member rotation can be defined in RFEM and RSTAB using two options:

  • Option 1: Rotation via angle
  • Option 2: Rotation via help node

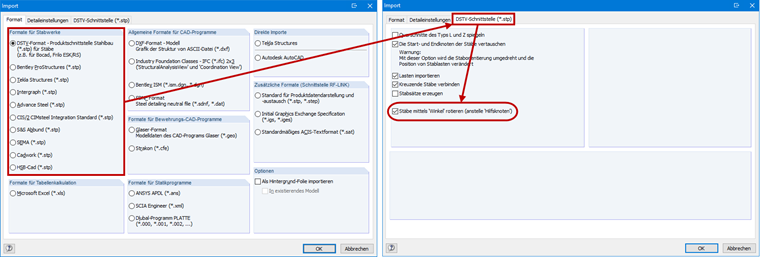

These options can be specified in the detail settings for the import of the .stp file. If the function shown in Figure 02 is activated, the first option with the angle is used. If you deactivate this function, a help node is created automatically with which the member rotation is defined.
