How can I generate load combinations automatically in an existing file retroactively?

Answer

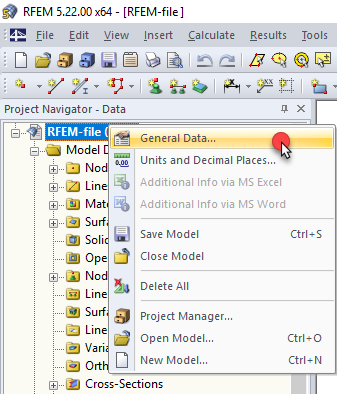

For this, open the "General Data" dialog box of the present model. Right-click the model description in the Data navigator.


Figure 01 - Opening General Data via Shortcut Menu of File

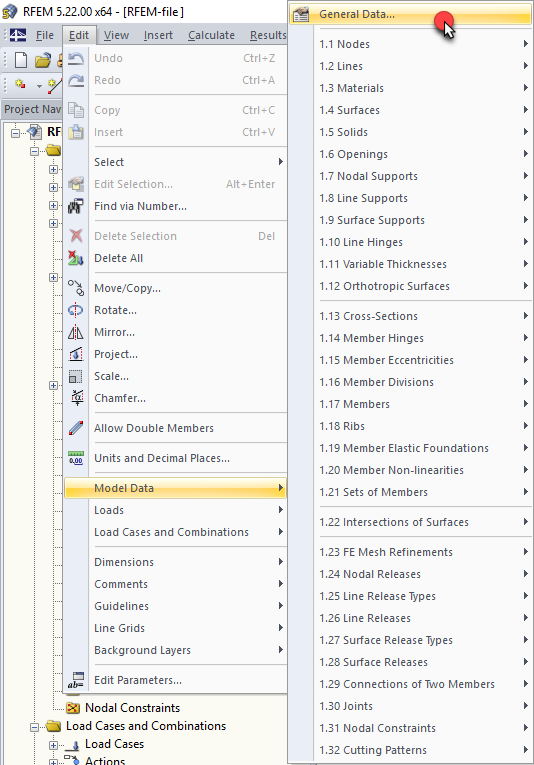

As an alternative, you can open the "General Data" dialog box via the "Edit" menu.

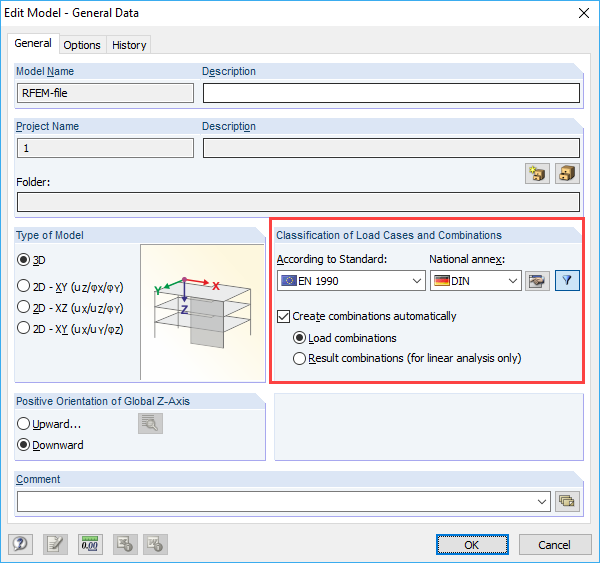

In the "General Data" dialog box, you can first select the standard according to which the combinatorics is to be performed, or whether to create load combinations (CO) or result combinations (RC).

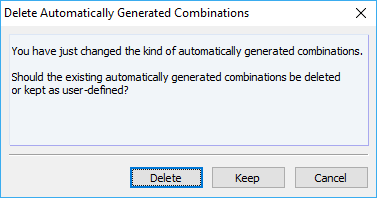

If CO or RC are already available in the existing file, a query appears asking whether the program should delete or keep the existing combinations.
