Is it possible to display a DXF file of the beam geometry by using the program RX‑TIMBER Glued-Laminated Beam?

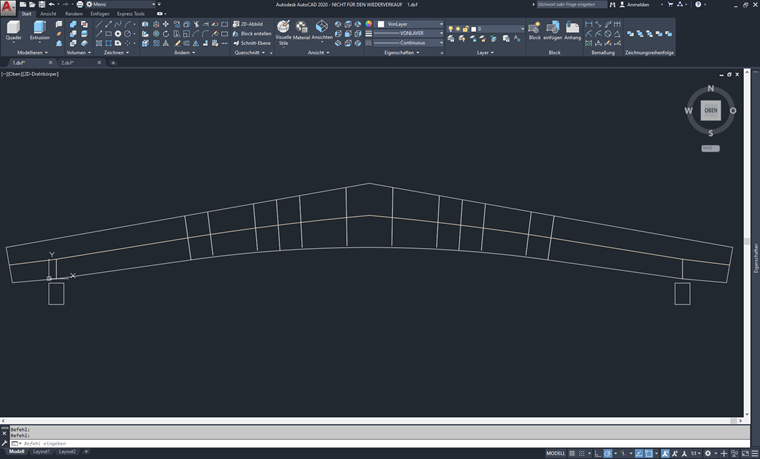

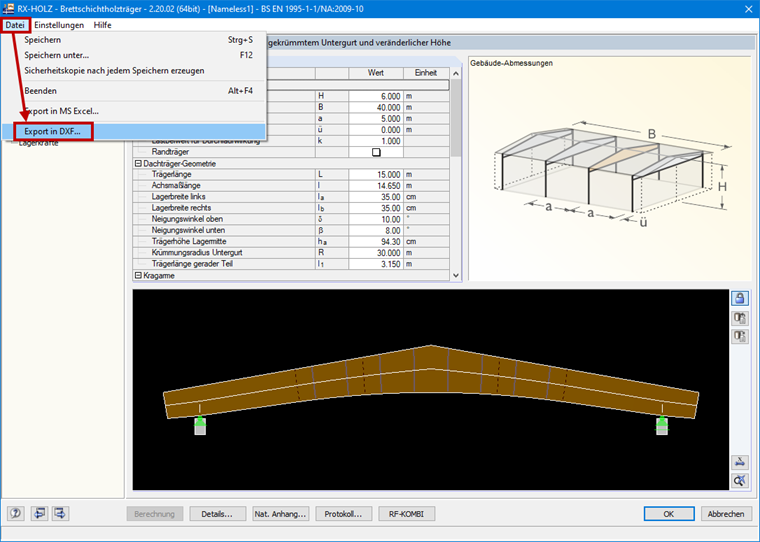

Yes, it is possible. The output is available in the menu File → Export to DXF. In order to also include possible stiffening elements, it is necessary to complete the calculation first and then carry out the export. Otherwise, the stiffening elements will not be displayed in the DXF. The elements, such as nodes, supports, and geometry, are included in different layers and can be deactivated in the CAD program at your will.


DXF Export Beam geometry
