How can I insert a smoothing region/a smoothing line in the result diagram?

Answer

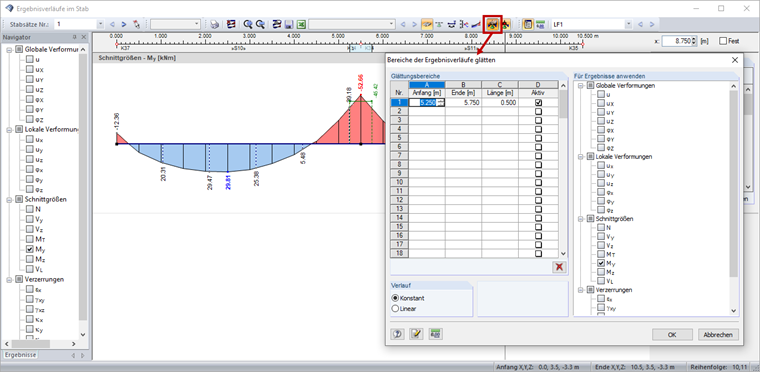

In the Result Diagrams dialog box, you can create smooth ranges to prepare the results for engineering. This function is available with the "Edit smooth regions" button. The dialog box in Figure 1 opens.

Define the Smooth Ranges in the table columns on the left; entries for Start, End, and Length are interactive. Each area can be activated separately. The "Use for Results" section controls for which deformations, internal forces, stresses, or strains a smoothing is to be performed. The smoothing can be constant or linear for all smoothing regions.

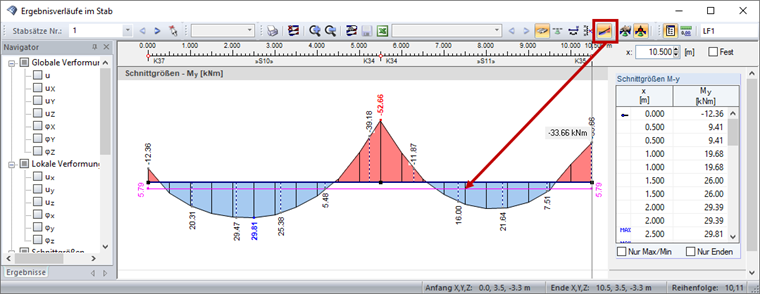

Furthermore, a smoothing line can be displayed over the entire result diagram with the button of the same name (Figure 2).

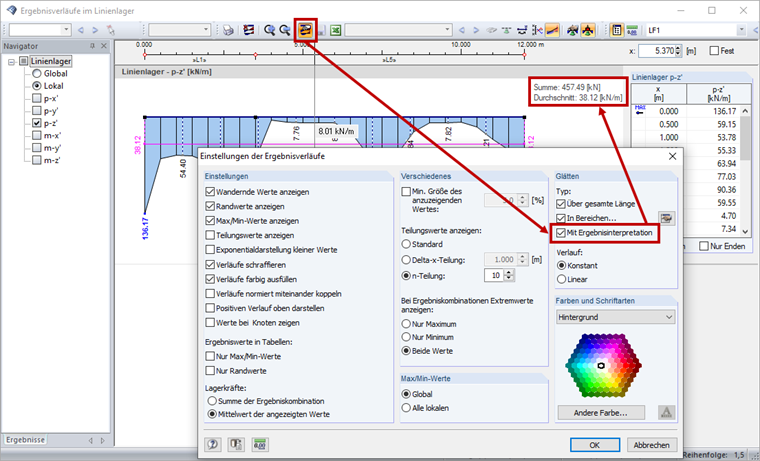

The integral of the smooth region is displayed if the "With result interpretations" check box is selected in the settings of the result diagrams (Figure 3).

Keywords

result diagrams Average Region Smoothing line
