Answer:

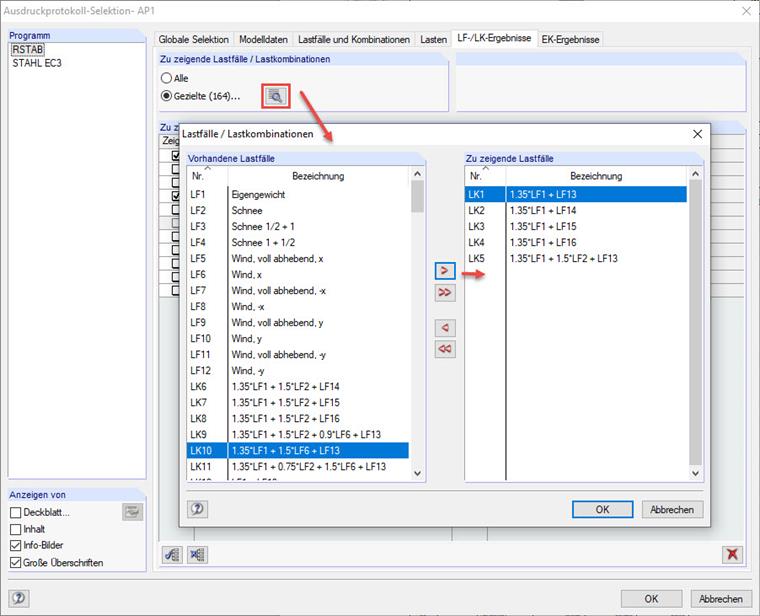

The result data can be prepared using the Specific selection field. In this case, it is possible to limit the printout report to display the results of certain load cases or load combinations.
Selection of Load Combinations in Printout Report
How can I set the printout report to display only the resulting internal forces of the load combinations and not the load cases?
Author
Ms. Matula provides technical support for our customers.
References
- Dlubal Software. (2018). Manual RFEM. Tiefenbach.
- Dlubal Software. (2016). Manual RSTAB. Tiefenbach: Dlubal Software.
