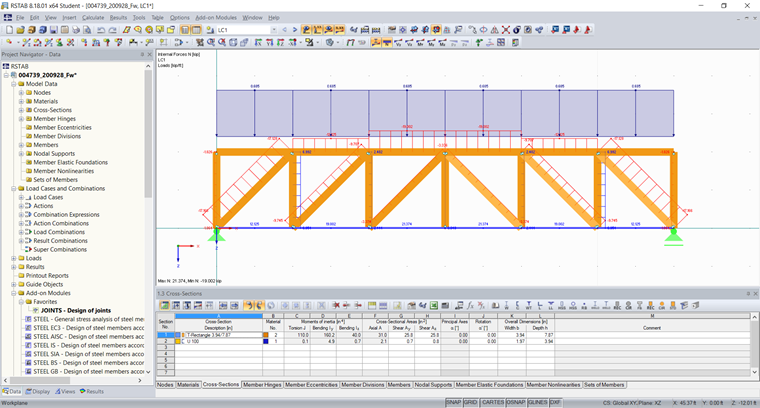

For a truss with the steel lower flange and timber diagonals, I would like to design the connection of the diagonals. Is this possible?

Answer

Yes, this is possible with the RF‑/JOINTS Timber - Steel to Timber add-on module. You can design the connection of two diagonals if they are connected with steel plates and dowels, for example. For this, it is reasonable to use the "Main member only" joint type.

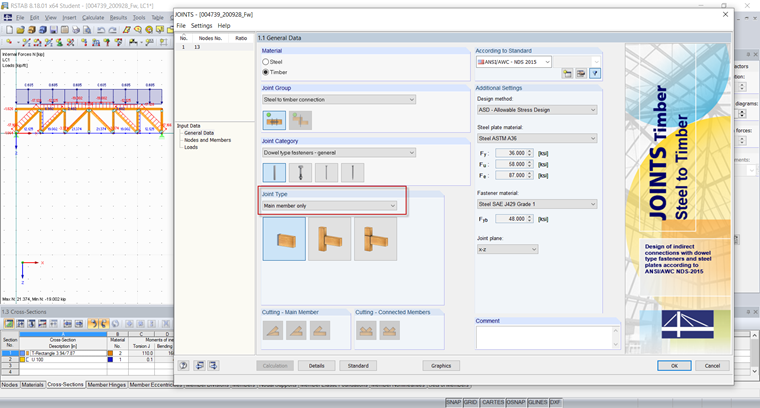

Figure 02 - Add-on Module - Joint Type "Main Member Only"

After selecting the node in the program, the connection is still marked as insufficiently defined due to the steel bottom flange.

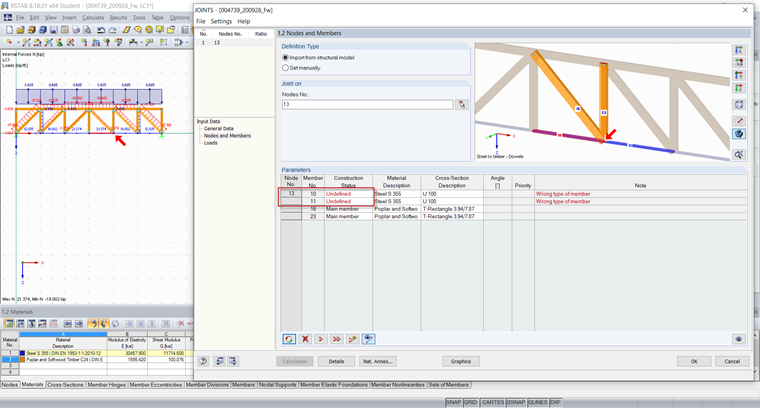

Figure 03 - Add-on Module - Entering Structure from Model

You can now deactivate both steel members to perform the design for the connection of the two diagonals only.

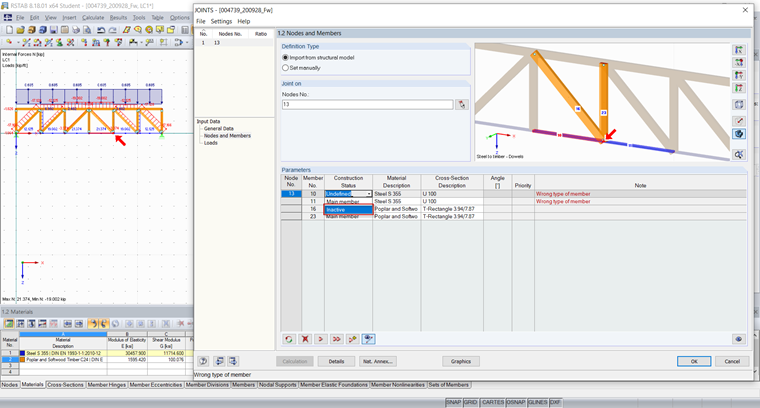

Figure 04 - Add-on Module - Entering Structure with Members Inactive

This design is possible in the add-on module.

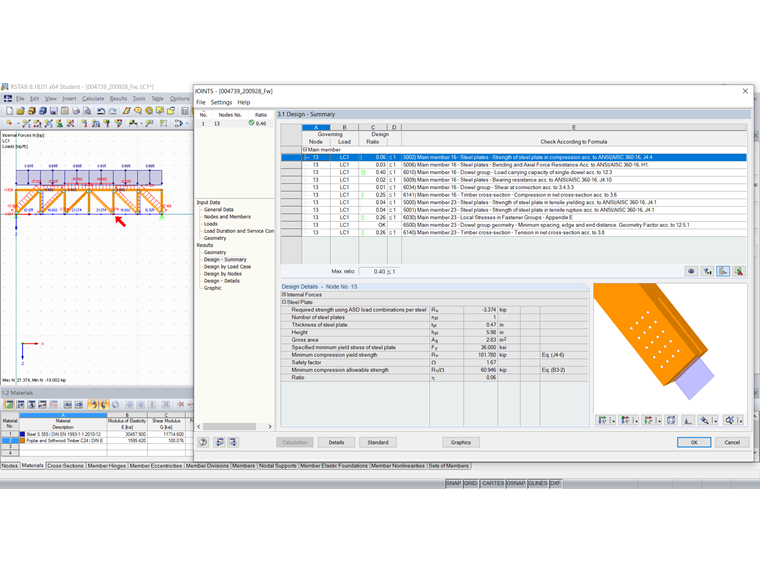

Figure 05 - Add-on Module - Results

Keywords

Joint Main member only Timber-steel connection Diagonal
