Overstrength Factors

1) Open the Load Cases & Combinations dialog box. Under the Base tab, select the Edit Parameters of Edition option. The default values are set to 2.0 (Image 01)

FAQ

FAQ 005320 | How do I include the overstrength factor(s) Ω-o in the ASCE 7 load combinations?

Edit Parameters of Edition

Case A: To apply the same factor in the X and Y directions, use the generic (no direction) overstrength factor Ω_o.

Case B: To apply different factors in each direction, use the overstrength factors X and Y, Ω_o,x and Ω_o,y. The generic factor Ω_o in the first row is not used.

2) Under the Load Cases tab, create a seismic load case with Qe as the Action Category. Next, activate the 'Additional Settings | Consider X and Y independently' option. Then, select the Additional Settings tab and pick the direction. There is also option to consider orthogonal combination (Image 02)

Create Seismic Load Case

Note: When neither or both directions are activated under the same load case, the generic overstrength factor, Ωo is used. Create a separate load case to apply the individual factors, Ω_o,x and Ω_o,y.

3) Under the Design Situations tab, select the applicable overstrength Design Situation Type. Both LRFD and ASD methods are available (Image 03)

Overstrength Design Situations

4) In the Load Combinations or Result Combinations tab, verify that the correct factor(s) have been applied. Click OK to exit (Image 04)

Verify the Overstrength Factor

5) The final step is to assign the applicable limit state type to the overstrength design situation. For members without assigned seismic configuration, select the "Strength limit state" (LRFD or ASD) as the Limit State Type.

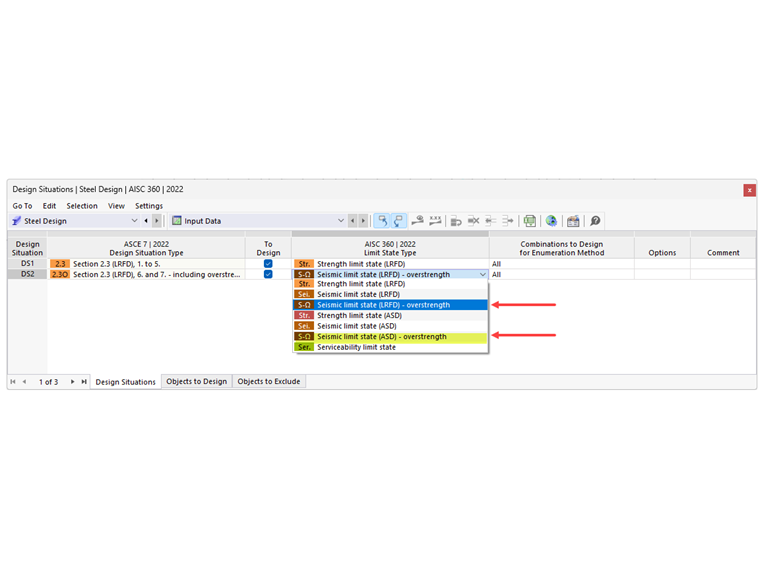

For members with assigned seismic configuration, use “Seismic limit state – overstrength” (LRFD or ASD) (Image 05)

Overstrength Limit State Type
