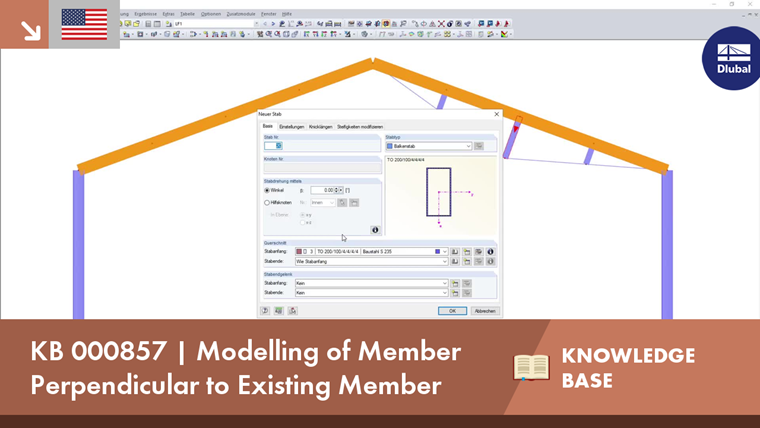

Modelling of Member Perpendicular to Existing Member
For a frame trussed from below, compression members are to be modelled perpendicular to the inclined beam. The member length and the intersection with the horizontal beam are defined.
One way to do this would be to rotate the grid by 90 degrees and place the origin in the respective node. Then you can place the compression members along the grid points.
Another possibility is the modeling with a polar coordinate systems. However, this requires precise angle information.

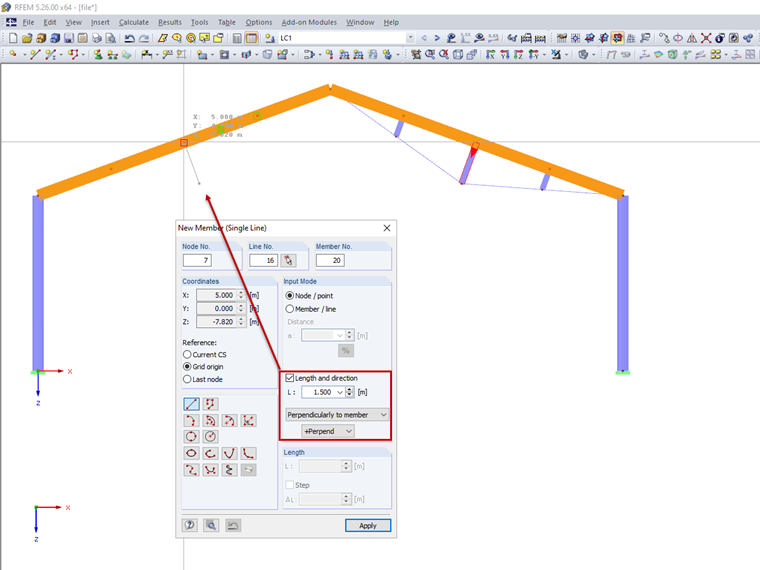

So the solution with the least modeling effort is to use the alternative input modes of members. You can see in the picture that only the member length is required in that case. If you point on the members with the mouse then the member preview appears.
Dipl.-Ing. (FH) Lukas Sühnel
Product Engineering & Customer Support
