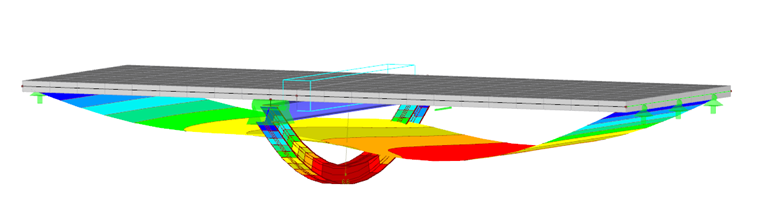

Accordingly, only vertical compressive forces are transferred from the downstand beam to the floor (Figure 01).
.png?mw=760&hash=bfdca79d25847511b344419e4c856d97777b60c8)
Since the "Rib" member type is out of the question due to the non-existent composite, you have to assign the "Beam" member type to the downstand beam.
The "Line Release" function is useful to implement the condition that only compressive forces should be transferred in the Z-direction. In this case, all forces and moments must be activated - that is, released - in the "New Line Release Type" dialog box. In addition, the "Fixed if positive vz" nonlinearity must be defined for uz (Figure 02).
You should select the line of the member within the corresponding area as a line to be released, and the corresponding surface as a released object.
.png?mw=350&hash=ca765893463738ec48553a48efbf221ebebe6f5c)
.png?mw=600&hash=49b6a289915d28aa461360f7308b092631b1446e)
