The concrete design data of the members is also part of the printout report. Double-click the 1 item in the Printout Reports category of the 'Navigator - Data' again (see the Opening Printout Report image). Chapter 10 now also includes the design data of the concrete members.
Chapter 10.7.4.1 contains the required reinforcement of the concrete members.

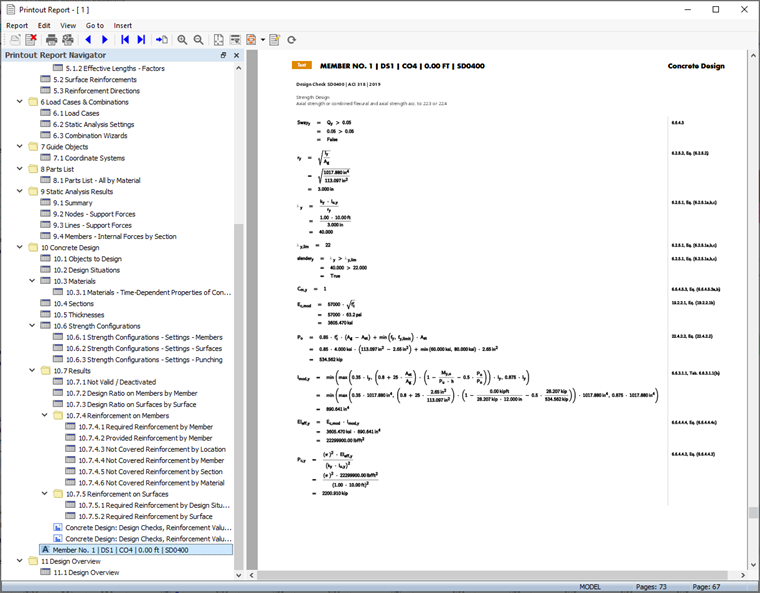

The design details that you have printed in the table (see the Design check details image) are placed at the end of Chapter 10. If you want, you can drag that item to another location, for example after Chapter 10.7.4.
Adjusting an Image

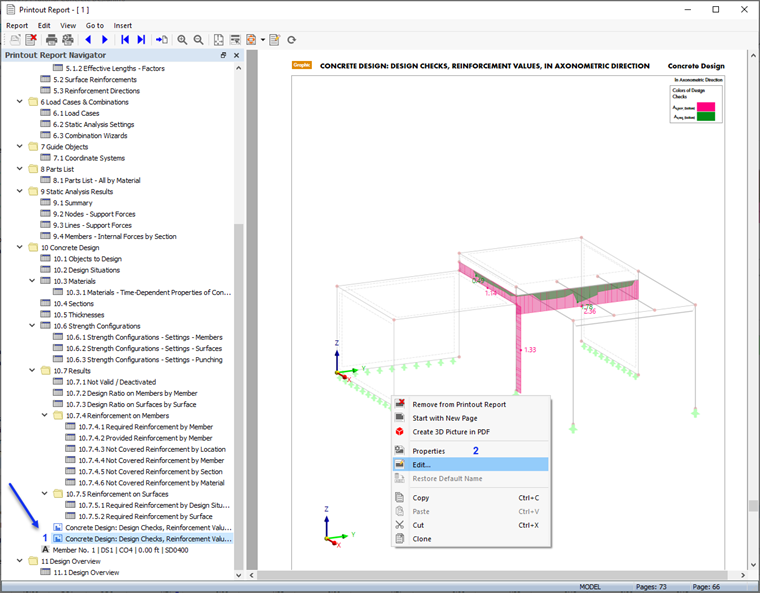

The printout report also includes the image of the bottom reinforcements. Select it in the navigator (1). To change the area of the view, right-click the image and select the Edit in the shortcut menu (3).

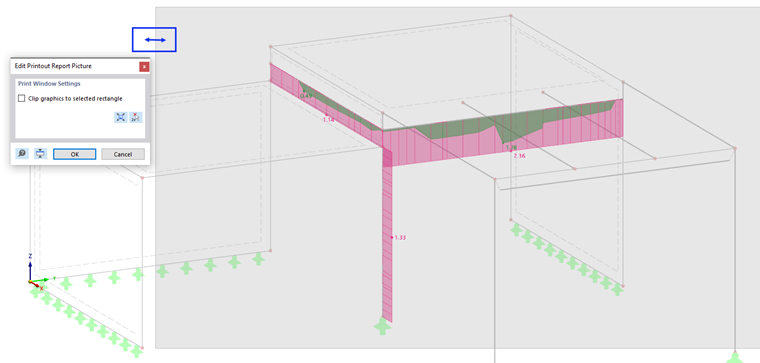

You are taken to the main workspace where you can resize the image by dragging the borders of the gray rectangle.
Click OK to apply the new clipping area and update the image in the printout report.
Close the printout report by clicking the
button.
Info
You have now completed the concrete design part of the tutorial. Save the data by clicking the
button on the toolbar.
