Design of Local Load Introduction According to DIN EN 1993-1-3:2010-12, 6.1.7

Description

The example shows the design of local load introduction according to DIN EN 1993-1-3:2010-12 [1], Section 6.1.7, for a single-span beam subjected to wind suction load. The cross-section consists of a cold-formed C-section with edge stiffening.
The model is based on Example 1.2.2 from [2].

Material		Modulus of elasticity	E	210,000.00	N/mm²
		Poisson's ratio	ν	0.30
		Shear modulus	G	80,769.23	N/mm²
		Basic yield strength S235	f_yb	235.00	N/mm²
		Partial safety factor for component resistance against stability failure	γ_M1	1.10
Geometry	System	Beam length	L	4,500.00	mm
	System	Length of rigid load introduction	s_s	90.00	mm
	Cross-Section	Height	h	180.00	mm
		Width	b	65.00	mm
		Thickness	t	1.46	mm
		Inner radius	r_i	4.00	mm
		Stiffener height	c	20.00	mm
Design Loads		Wind suction	q_Ed	0.75	kN/m

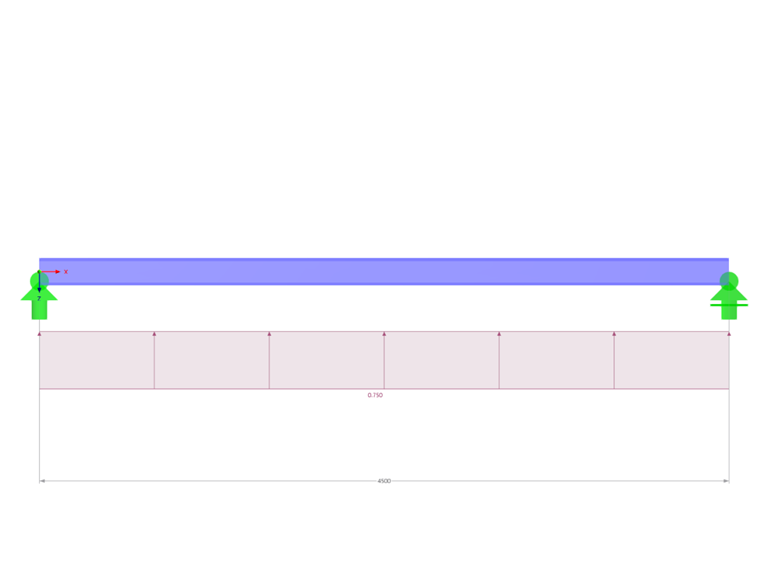

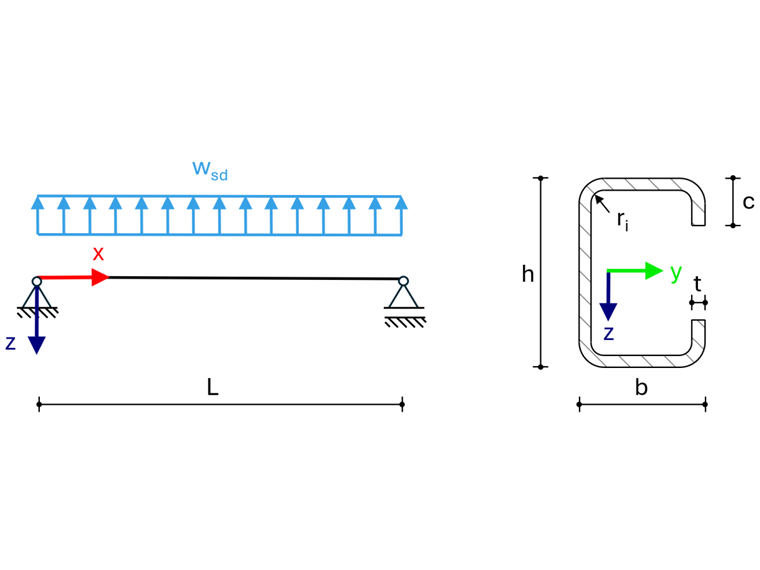

Structural System and Loading

RFEM Settings

Modeled in RFEM 6.11.0011
Linear static analysis
Isotropic linear-elastic material model

Results

Reference Value	Literature	RFEM 6	Deviation
Load-bearing capacity of the web under local load introduction R_w,Rd according to (6.15a)	3.80 kN	3.80 kN	0.00%

209x

43x

Verification Example 9960

References

DIN. (1993). Eurocode 3: Design of Steel Structures – Part 1‑3: General Rules – Supplementary Rules for Cold-Formed Members and Sheeting, EN 1993‑1‑3:2010‑12. Berlin: Beuth Verlag GmbH.
Vayas, I., Ermopoulos, J., & Ioannidis G. (2001). Bemessungsbeispiele im Stahlbau nach Eurocode 3. Berlin, Ernst & Sohn.

;
