Steel Construction for 360° Panorama

Customer Project

Structural Engineering Steel Construction
Ingenieurbüro Knapp, Gernsbach, Germany
www.tragwerk-knapp.de
and
Ingenieurbüro Schnur, Waldmohr, Germany


Track System
Büro für Leichtbau - Tritthardt + Richter, Radolfzell, Germany
www.tapweb.de

Solid Construction
Kreiling Krieger Lietzow - Beratende Ingenieure, Pforzheim, Germany
www.kkl-bi.de
Construction Construction Management
PSB Ingenieurbüro Ehrle Vivas, Hohenfels-Liggersdorf, Germany
Architect Gunter Schwarz, Eppingen, Germany
www.g.schwarz-architekturbuero.de
Investor Parkhotel Pforzheim GmbH & Co. KG, Pforzheim, Germany
www.gasometer-pforzheim.de

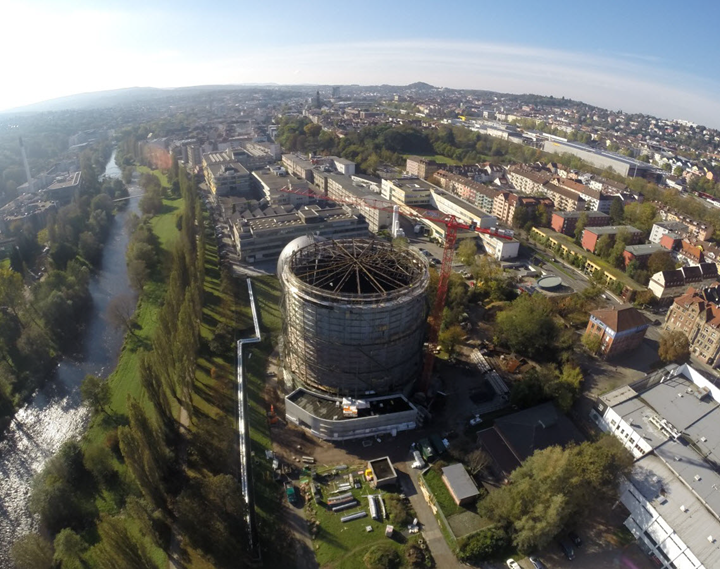

The link between the businessman Wolfgang Schweidtweiler from Pforzheim (Germany) and the panorama artist Yadegar Asisi made it possible that the 100-year-old gasometer threatened by demolition can now be used in such a spectacular way.

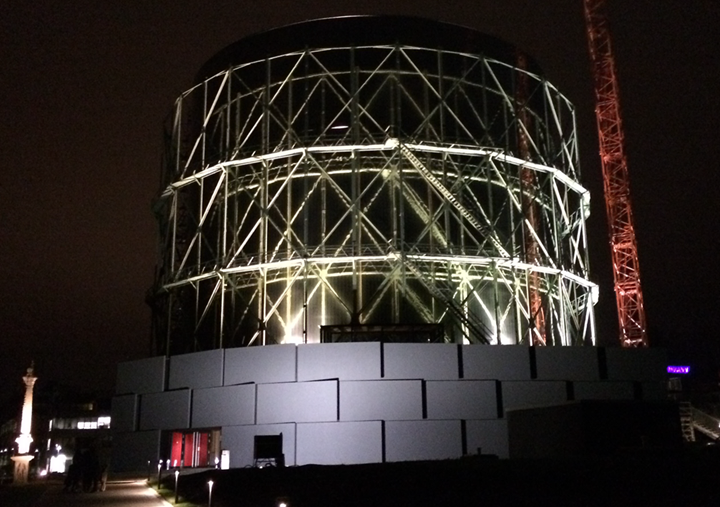

The former gas storage facility has been transformed to an extraordinary event area by a completely new interior design. A steel construction of around 115 ft with a diameter of 131 ft has been built on top of an approximately 20 ft high massive ground floor. Since the end of 2014, the 360° panoramas of the Berlin artist Asisi have been exhibited inside the building.

Construction

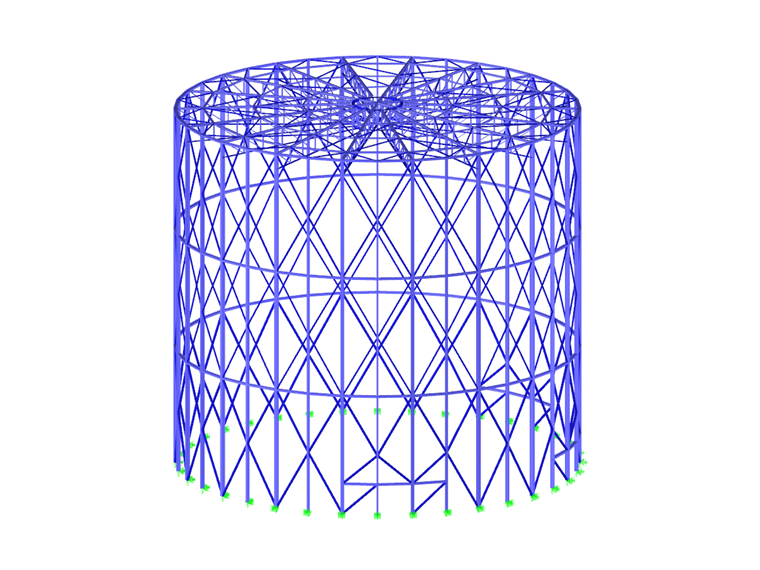

18 radially moving truss girders which are connected together by a compression ring at the ridge and a tension ring at the upper and lower chord form the main structure of the roof. Pressure tubes and diagonals arranged around it form the roof panel.

The primary structure of the façade is made up of 18 bracket and façade supports which are arranged in a grid of 10°. The stiffening of the cylinder is guaranteed by the arrangement of horizontal ring stiffeners in connection with compression and tensile-rigid diagonals.

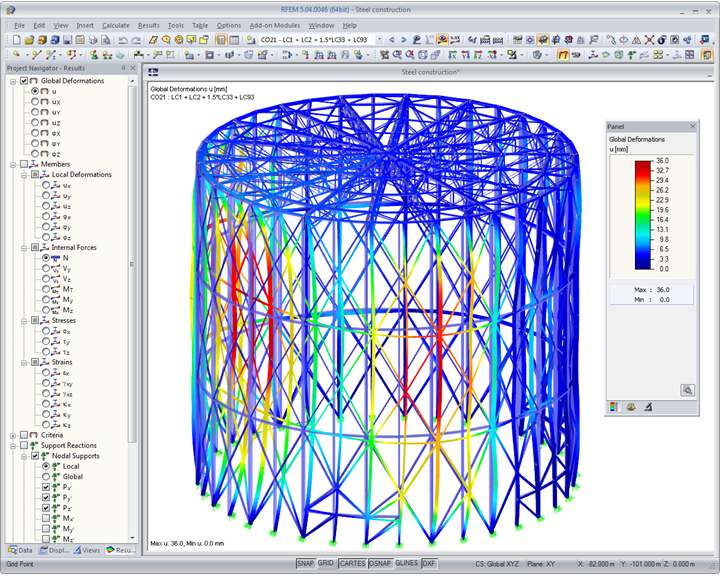

To be able to determine the unevenly distributed wind load as realistically as possible, the entire main structure has been modeled spatially with RFEM.
