Frans Masereel Centrum in Kasterlee, Belgium
Customer Project

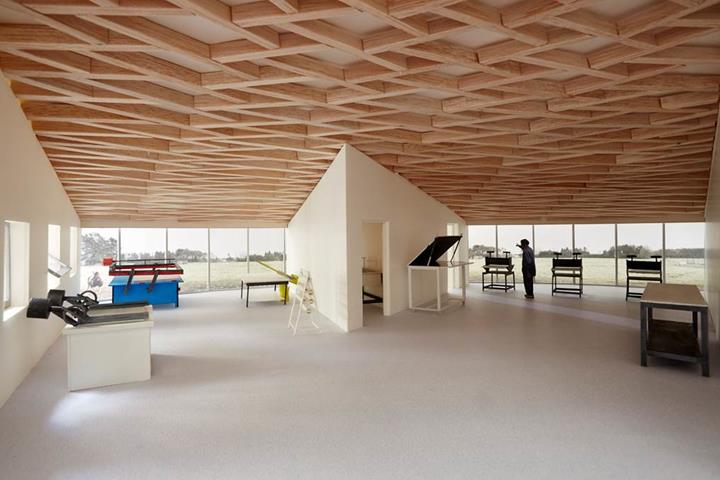

Frans Masereel Centrum, founded in 1972, offers residencies and working spaces for 70 graphic designers, artists and critics who want to extend their knowledge in intaglio, 3D printing or lithography.In 2013, the center started the expansion with a new graphics studio, a darkroom and new exhibition rooms.
Structural Engineering |
Engineering office Bollinger+Grohmann Ingenieure, France www.bollinger-grohmann.com |
Architect | LIST & Hideyuki Nakayama Architects |
Investor |
Frans Masereel Centrum, Belgium fransmasereelcentrum.be |
To withstand the acting snow loads, the new pavilion at ground level has a conic shape where six triangles have been cut out.
A corridor which leads outside connects the extension with the existing building.
Construction
The walls with varying height between 2.3 and 5.9 m, are made of reinforced concrete and are filled with calcium silicate units.
The walls support a conic roof with a diameter of 29 m which uses the principle of the reciprocal structure with 7 rows. Therefore, no central support is needed.
The reciprocal structure consists of about 1,000 wooden beams with a section of 8 x 23 cm and a length of up to 6 m.
