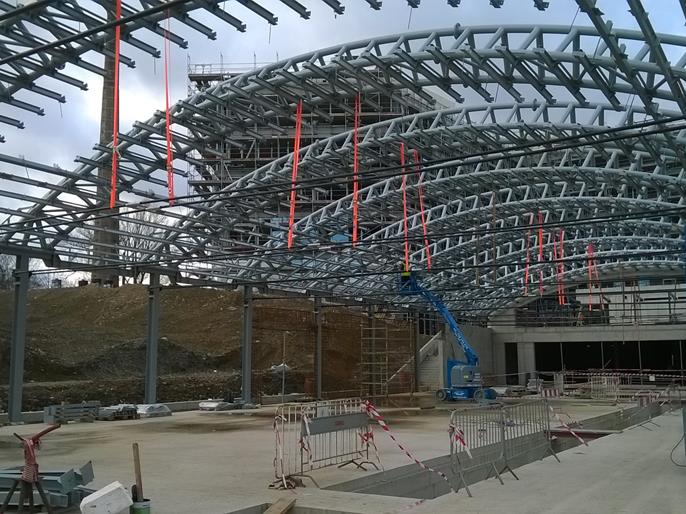

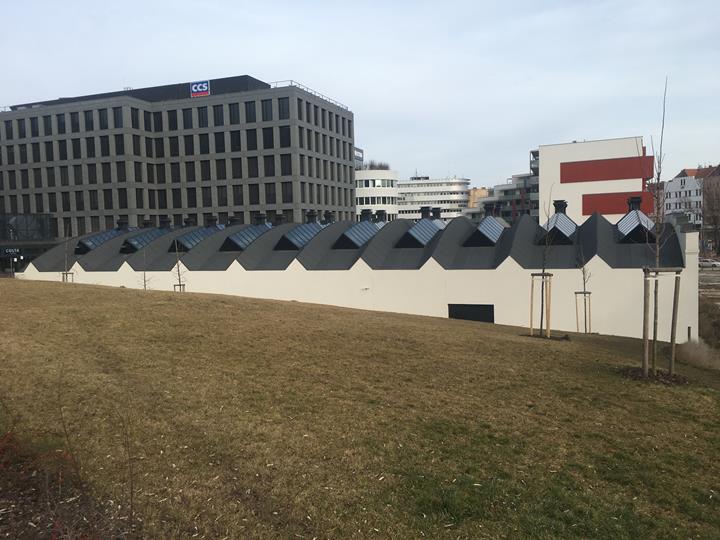

Office Building Palmovka Open Park IV - Arch Hall, Czech Republic
The arched hall includes a 72 ft x 177 ft rectangular floor plan, height of 33 ft and roof radius of 66 ft. The structure houses large offices with additional storage space available.
Ing. Pavel Korejčík
Ing. Jan Seifert
|Architectural Design||Aulík Fišer Architekti s.r.o.|
The steel structure is entirely covered at both the ceiling and wall locations. Only the steel frame tie rods and continuous purlins in the place of the skylights are visible. Portions of the original structure are still utilized throughout the building, but do not serve any structural capacity. This includes specifically the timber arched trusses with tie rods and struts, steel lattice columns, and roof skylights.

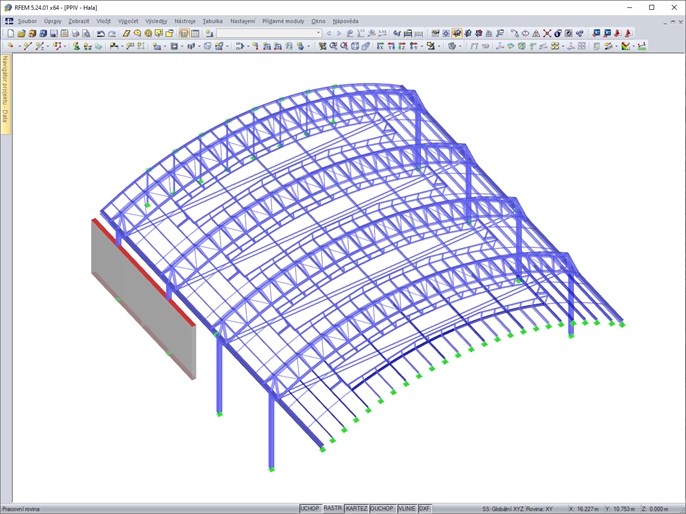

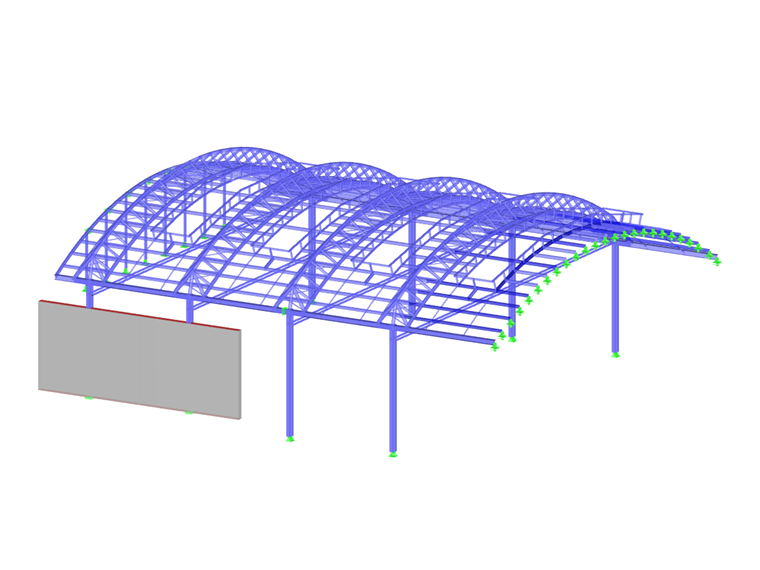

StructureThe main structural components include ten steel frames 32.5 ft in height, spanning 79.6 ft, spaced 18 ft on-center. The frames are laterally restrained and consist of columns, tie rods, and arched lattice rafters. Geometrically, the steel frames are asymmetrical due to the various column distances from the arch axis.
The steel frame columns are reinforced HEA sections, the tie rods are flat bars, and the frame rafters are round tubes. The frame rafter includes a triangular lattice arch truss (one top chord and two bottom chords), struts (crossbeams), and diagonal bracing between the bottom chords. The trusses further connect at the base to the reinforced HEA columns. Purlins constructed from IPE sections (welded I-beams) connect to the undersides of the arch trusses.
Project LocationPrague, Palmovka, Czech Republic
