FAQ 002401 EN 12 February 2019

Markus Baumgärtel Display Settings RFEM RSTAB

When displaying the storage reactions of a combination of results, the two values are displayed almost one above the other. Can one adjust the distance?

Answer

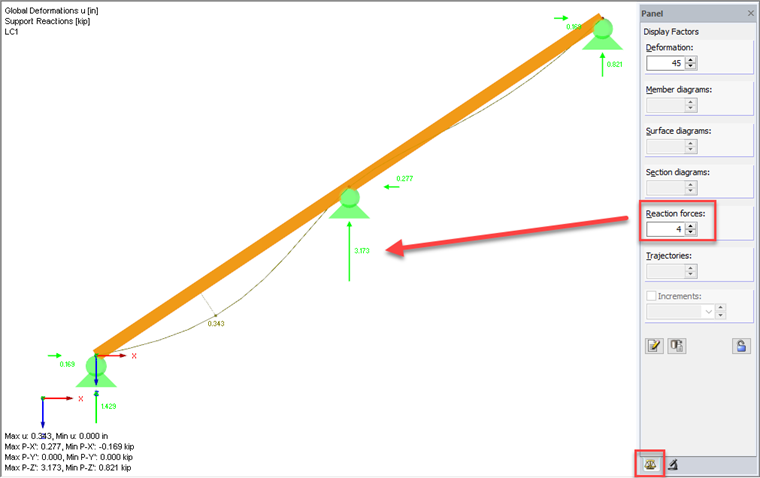

So that the result values of the bearing forces are not displayed one above the other, you can adjust the "display factor" for the bearing forces in the result panel (to the right of the graphics window).
If you enlarge it, the presentation should be better (see Figure 1).

Alternatively, you can also right-click in the graphics window and adjust the "Display Properties". Under the category "Results"> "Storage reactions"> "Nodal forces" you can adjust the size of the representation.

If the input has an effect, you can also adjust the "Relative limit settings" in the detail settings (see Figure 2).

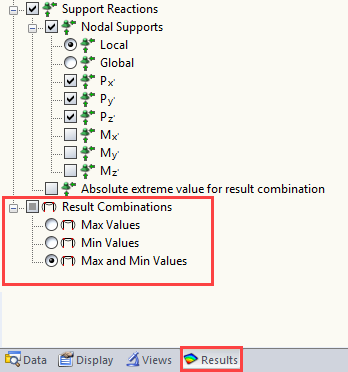

If you only want to display a value "Max" or "Min value" in the EC results, you can set this in the result navigator for the EC results (see Figure 3).

Keywords

Representation of bearing reactions values one above the other result combination of bearing forces
