FAQ 002499 EN

25 February 2019

Markus Baumgärtel Import / Export & BIM SHAPE-THIN

I would like to import a cross-section as DXF in SHAPE‑THIN and to convert it automatically into a cross-section. Where can I find this feature?

Answer

You can import a DXF file using the menu 'File → Import'. However, it is usually necessary to rework the file.

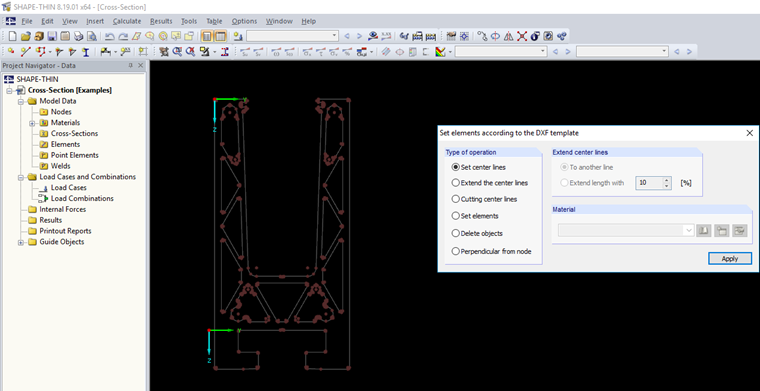

Elements can be set retrospectively on the basis of the DXF template. This feature is available using the menu 'Edit → Set Elements with DXF Template'. The 'Set Elements According to DXF Template' dialog box appears (see the figure).

First, it is necessary to create center lines by clicking the opposite DXF contour lines. Then, use the 'Set Elements' option to set the elements by clicking the center lines. For non-parallel contour lines, the elements must be set manually as SHAPE‑THIN can only create elements and arcs from the parallel lines.

The video recording of this info day shows the DXF import from minute 45:50 onward. You can find the video under Links below.

Keywords

DXF SHAPE-THIN import DXF import DXF SHAPE-THIN
