Answer:
Installation problems often have the following causes:
- Antivirus Software
- User Rights
- Windows Updates
Question

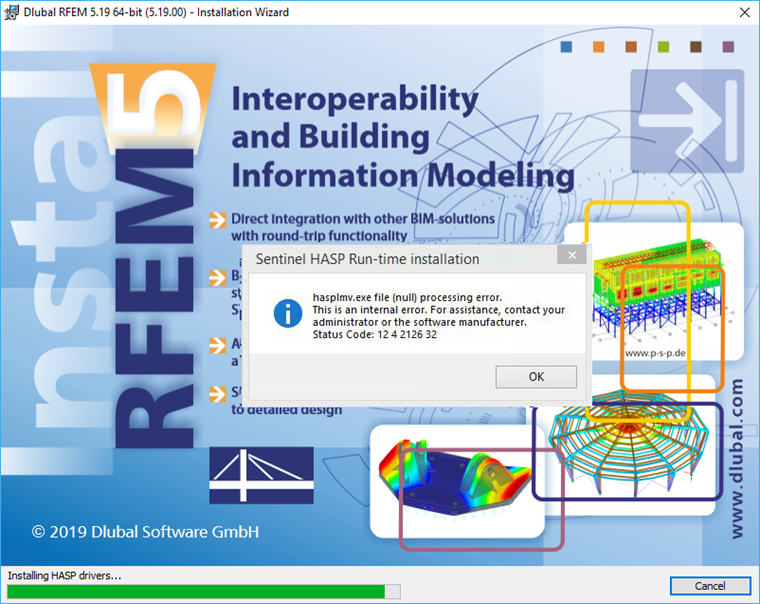

I have problems installing Dlubal Software programs. What could be the reason for this?
