Is it also possible to rearrange the distribution of stresses and internal forces in surfaces? For example, averaged within an FE element?

Answer

Yes, there is a setting for this in the Display navigator. See the following figures:

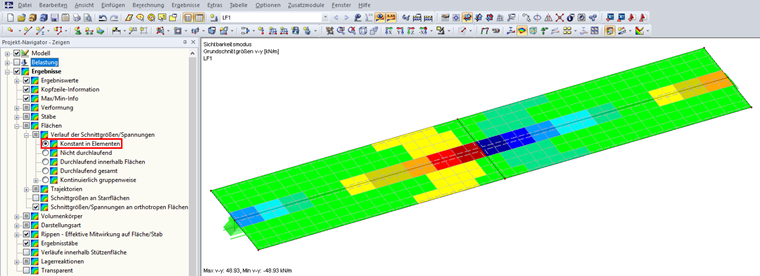

Constant on Elements


Non-Continuous

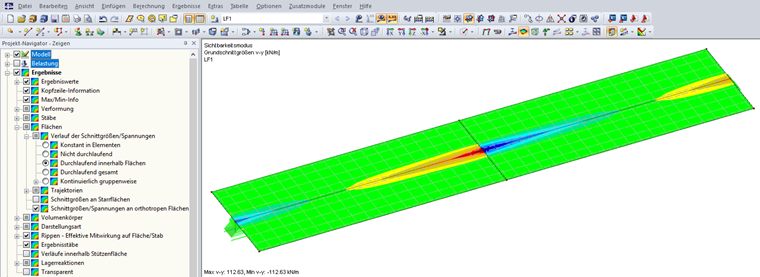

Continuous Within Surfaces


Continuous Total

Keywords

Smoothing Surface internal force Internal force Stress Surfaces Distribution Continuous Constant
