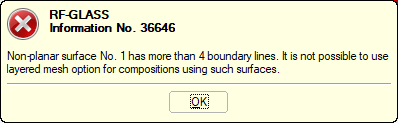

When calculating a curved surface in RF-GLASS, I get a message indicating that the surface has more than 4 boundary curves and thus no layered FE mesh can be used. How can I avoid this message?

Answer

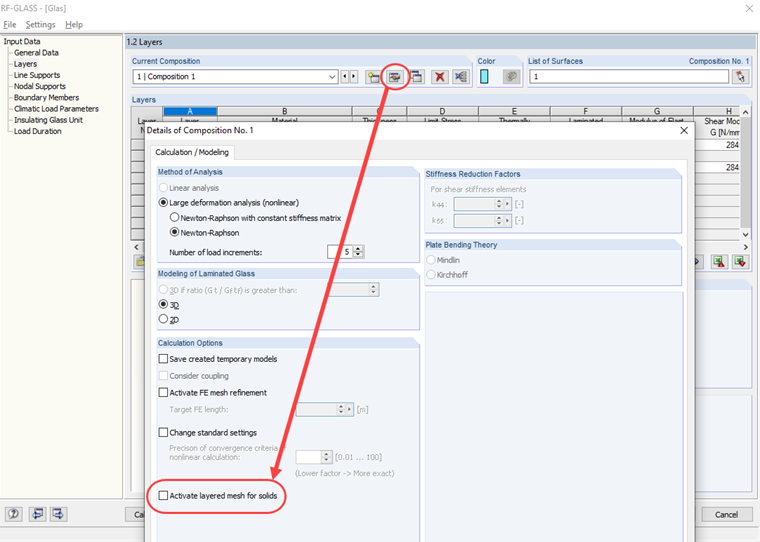

The same requirements apply for a layered FE mesh as for a contact solid (see the links below this FAQ). If the requirements are not met, the layered FE mesh must be deactivated in the layer layout details (see Figure 02).

Keywords

Layered FE mesh Contact solid Boundary curve
