Drawing Plane in CAD Application for DXF Import in SHAPE-THIN

In which drawing plane must a cross-section be drawn in a CAD application so that it can be imported into SHAPE‑THIN using the dxf import?

Answer:

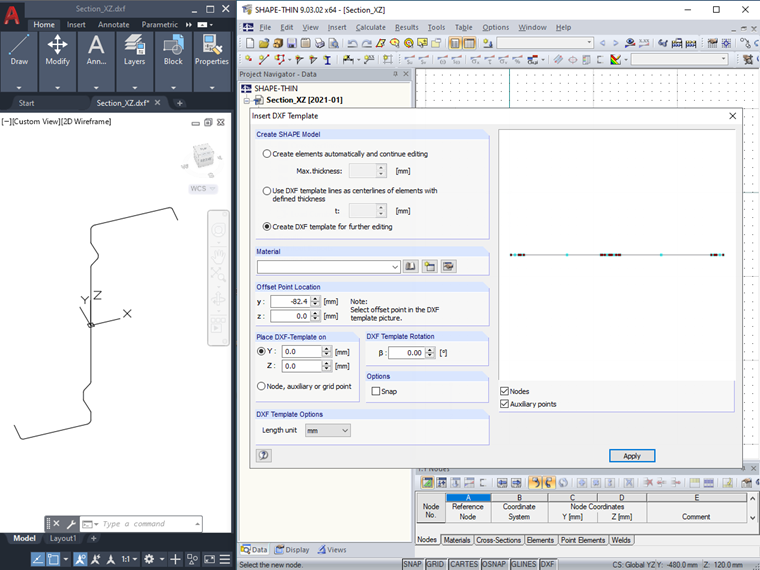

During the dxf import, only objects lying in the XY plane are imported. Therefore, it is necessary to draw the cross-section in the XY-plane in the CAD application. Image 01 shows a cross-section lying in the XZ-plane as well as the import result of this cross-section in SHAPE‑THIN.

FAQ|004913
EN-US | Flag FAQ
FAQ 004913 | In which drawing plane must a cross-section be drawn in a CAD application so that ...
Import of Cross-Section Lying in XZ-Plane
Import of Cross-Section Lying in XZ-Plane

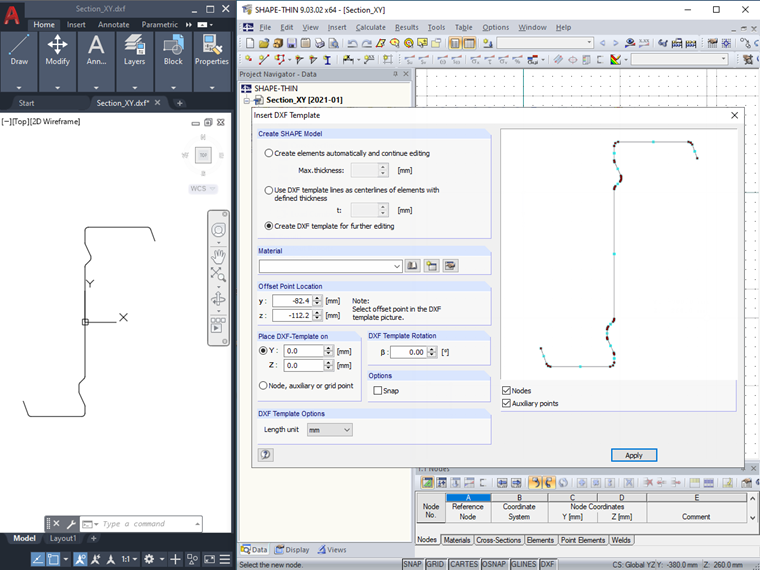

The cross-section lying in the XY-plane is imported into SHAPE‑THIN as desired (Image 02).

Import of Cross-Section Lying in XY-Plane
Import of Cross-Section Lying in XY-Plane
