Why do I get large differences for the design of a longitudinally stiffened buckling panel in comparison with the German and Austrian National Annex?

Answer

According to the national provision of ÖNORM EN 1993‑1‑5:2007, Section 4.5.3(3), it is possible to abandon the increase of σcr,c, allowed in the note, with respect to the elastic critical buckling stress σcr,sl of the longitudinal stiffener adjacent to the compression edge as this results in very conservative results with regard to the resulting reduction factor ρc for the buckling analysis according to ÖNORM EN 1993‑1‑5, Section 4.5.4(1), Equation 4.13. Image 01 shows an example of a longitudinally stiffened buckling panel, designed according to the Austrian National Annex.

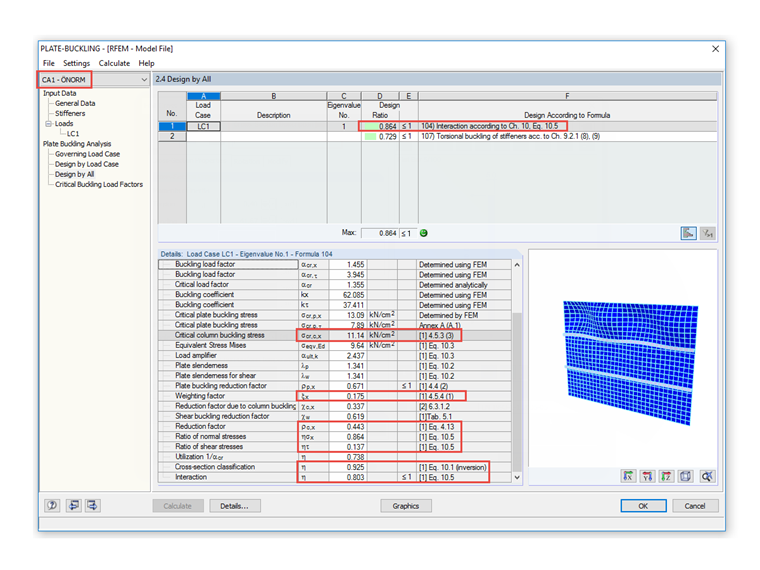

Image 01 - Design According to Austrian National Annex

In DIN EN 1993‑1‑5, the note given in Section 4.5.3(3) applies, so it results in the following difference, see Image 02.

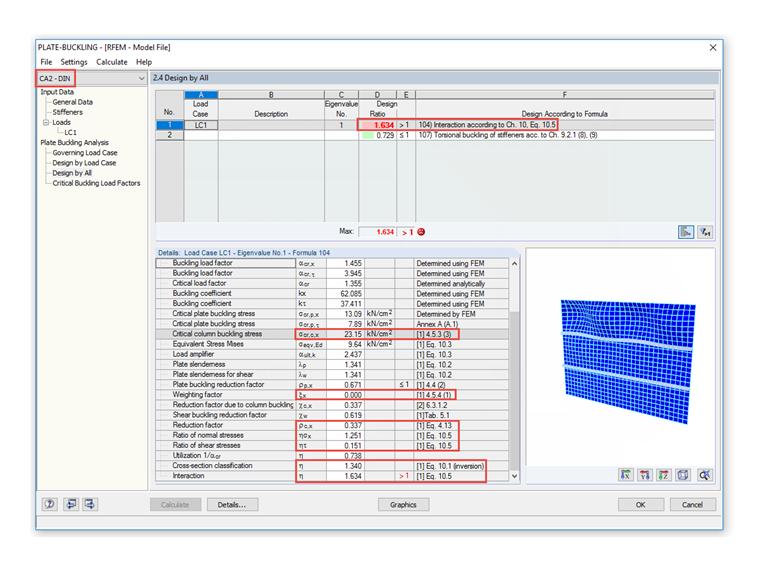

Image 02 - Design According to German National Annex


Keywords

Longitudinal Longitudinal stiffener Stiffened Panel Difference
