Load on Non Coplanar Structures

How do I apply load on members that are non coplanar in RFEM 6?

Answer:

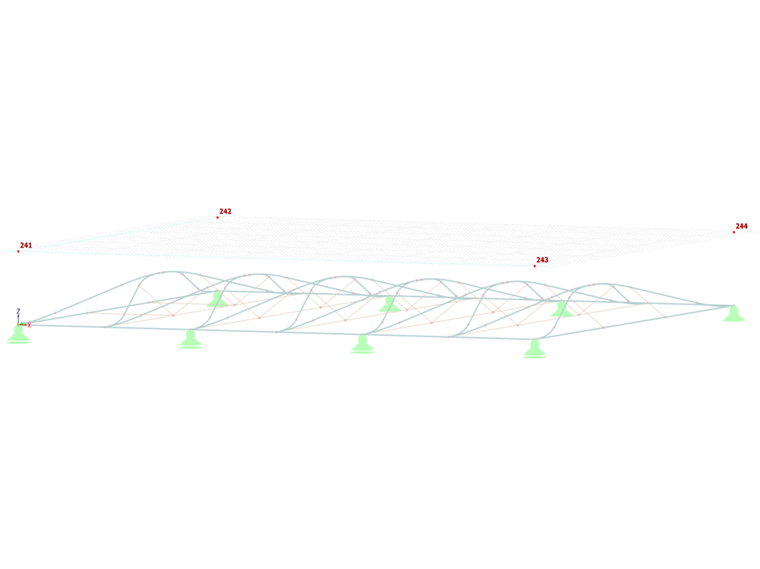

  1. Define a plane that will be used to apply the load. You can do so by creating 4 corner nodes around your structure (Image 01).
    FAQ 005321 | How do I apply load on non-coplanar structures in RFEM 6?
    1 Corner Nodes
  1. Go to Insert→ Load Wizards→ Member Loads from Area Loads. Specify the direction and magnitude in the Main tab (Image 02).
    FAQ 005321 | How do I apply load on non-coplanar structures in RFEM 6?
    2 Member Loads from Area Load Wizard

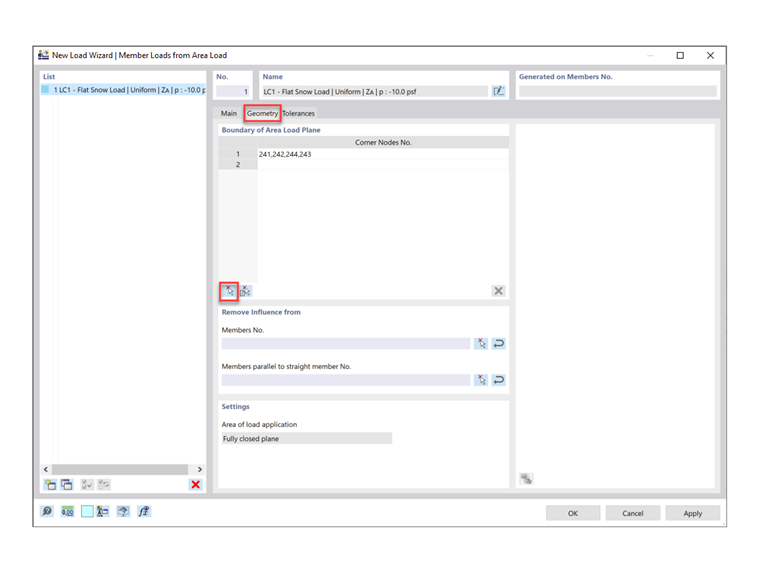

  1. Select the Geometry tab and select the corner nodes that were previously created. (Image 03).
    FAQ 005321 | How do I apply load on non-coplanar structures in RFEM 6?
    3 Select Geometry

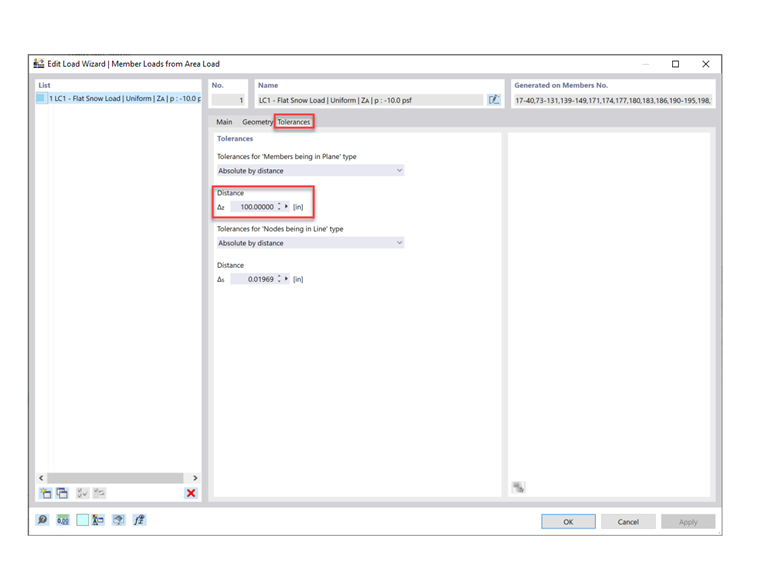

  1. Select the Tolerances tab and enter a distance that will capture the entire width/height of the structure (Image 04). Click OK to exit.
    FAQ 005321 | How do I apply load on non-coplanar structures in RFEM 6?
    4 Specifying Distance

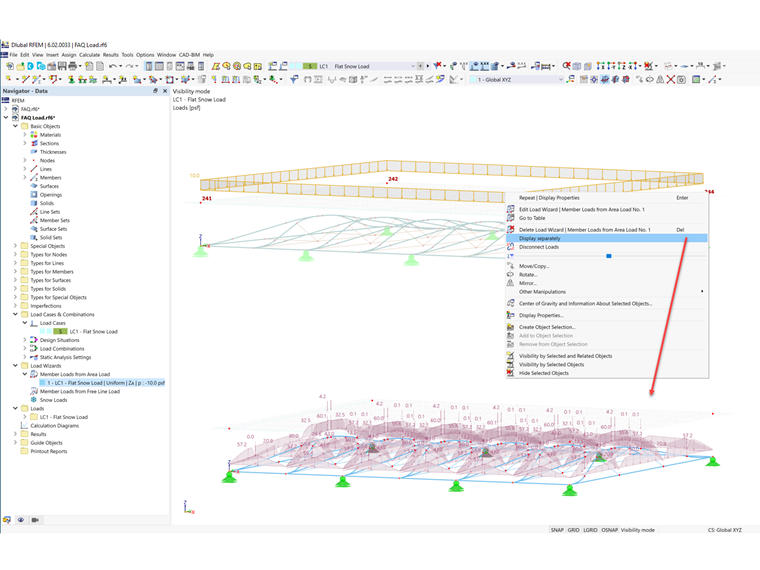

  1. Right click on the area load and select Display separately. The area load is now displayed as member loads (Image 05).
    FAQ|005321
    5 How do I apply load on members that are non coplanar in RFEM 6? 005321
FAQ 005321 | How do I apply load on members that are non-coplanar in RFEM 6?
Displaying Load Separately
