Creating Member with Variable SHAPE-THIN Cross-Section

  • Knowledge Base

Tips & Tricks

This article was translated by Google Translator

View original text

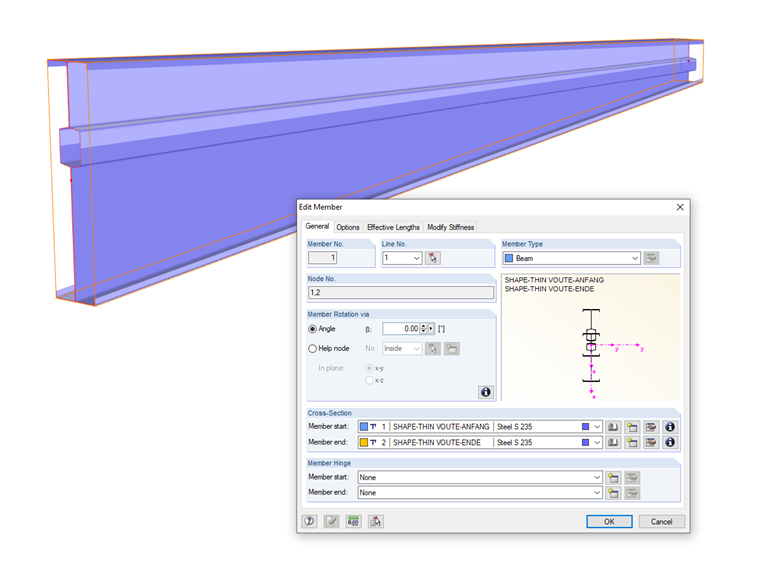

In RFEM and RSTAB, it is possible to analyze members with a variable cross-section, which can also consist of freely defined SHAPE-THIN cross-sections. For the determination of internal forces and deformations, the cross-section properties are interpolated.

Members with a variable SHAPE-THIN cross-section can also be designed if the following is considered during the modeling:

  • In SHAPE-THIN, create the start cross-section and save it after the calculation.
  • Create a copy of the cross-section, for example, by using "File → Save as ..."
  • Adjust the geometric parameters such as height or width to create the end cross-section. Nodes or elements may not be added or deleted!
  • Calculate the cross-section and save it.

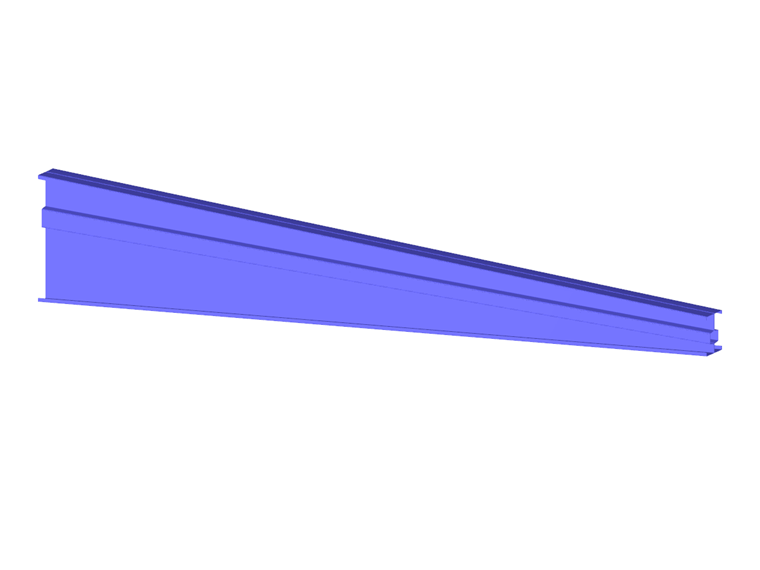

After importing the two cross -sections in RFEM or RSTAB, you can check whether the modeling is correct in the rendering: Only if the cross-section change is displayed as a linear distribution, a design with the modules STEEL or RF-/STEEL EC3 is possible.
