Superpositioning Modal Responses in a Response Spectrum Analysis Using the Equivalent Linear Combination

The response spectrum analysis is one of the most frequently used design methods in the case of earthquakes. This method has many advantages. The most important is the simplification: It simplifies the complexity of an earthquake to such an extent that an analysis can be carried out with reasonable effort. The disadvantage of this method is that a lot of information is lost due to this simplification. One way to mitigate this disadvantage is to use the equivalent linear combination when combining the modal responses. This article explains this option by describing an example.

Theoretical Background

For each natural frequency, the response spectrum method determines one modal response by means of the defined response spectrum. In the case of complex systems, there may be a large number of mode shapes to be considered. The subsequent superposition proves to be difficult because in reality, all natural vibrations would not occur in their full magnitude at the same time. In order to consider this fact in the calculation, the individual modal responses are superimposed quadratically. The European design-relevant standard EN 1998-1 gives two rules for this: the method for the square root of the sum of squares (SRSS rule) and the method of the complete quadratic combination (CQC rule) [1].

Applying these rules usually provides realistic and economical results as opposed to simple addition. However, the direction of the excitation and thus the signs of the results are lost during the superposition. In consequence, the results are always given as maximum values in the positive as well as in the negative direction. Corresponding internal forces and moments, for example a corresponding moment at the maximum axial force, are lost. This should be avoided by modifying the SRSS and CQC rule: The formulas will be written as a linear combination instead of a root. This rule was introduced by Prof. Dr.-Ing. C. Katz [2] and is shown below using the SRSS rule as an example.

ESRSS = E12 + E22 + ... + Ep2

ESRSS = i = 1p fi · Ei     mit     fi = Eij = 1p Ej2

Comparison of Results Using an Example

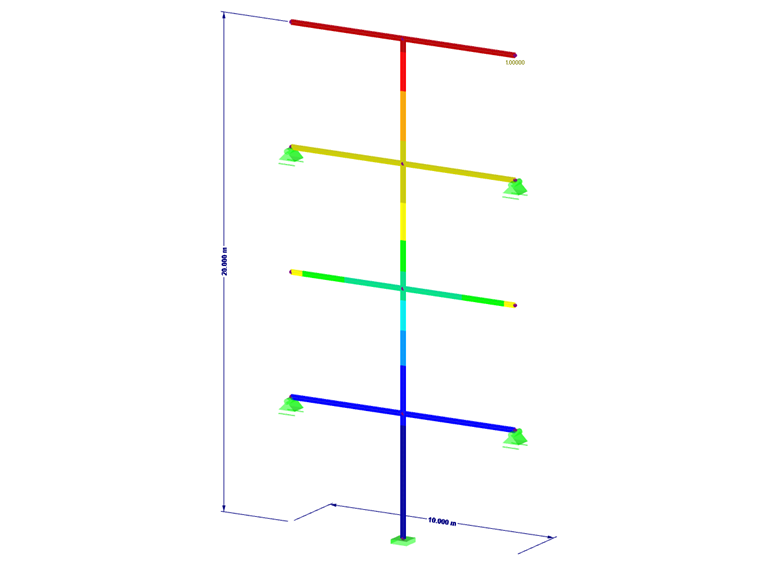

The effect of the equivalent linear combination is explained by a simple two-dimensional steel structure. Three internal forces are considered: axial force N, shear force Vz, and moment My. The  F-DYNAM Pro - Equivalent Loads add-on module is used. The behavior in RF-DYNAM Pro - Forced Vibrations is identical.

Four mode shapes are calculated exclusively in the X-direction and a response spectrum based on EN 1998-1 is used. Activating the equivalent linear combination and selecting the combination rule is done in the "Equivalent Force Analysis" tab under "Dynamic Load Cases" [3].

The results of the individual modal responses are analyzed, for example, on node number 5 (on member number 6 → left side) and are listed in the following table.

 Answer from
Mode Shape 1
Answer from
Mode Shape 2
Answer from
Mode Shape 3
Answer from
Mode Shape 6
Axial force N1.361 kN-0.246 kN0.815 kN-2.322 kN
Shear force Vz0.480 kN-1.635 kN-0.556 kN1.546 kN
Moment My-2.400 kNm8.174 kNm2.781 kNm-7.732 kNm

The following values result from the standard SRSS rule.

NSRSS = (1.361 kN)2 + (-0.246 kN)2 + (0.815 kN)2 + (-2.322 kN)2 = 2.823 kN

Vz,SRSS = (0.480 kN)2 + (-1.635 kN)2 + (-0.556 kN)2 + (1.546 kN)2 = 2.367 kN

My,SRSS = (-2.400 kNm)2 + (8.174 kNm)2 + (2.781 kNm)2 + (-7.732 kNm)2 = 11.836 kNm

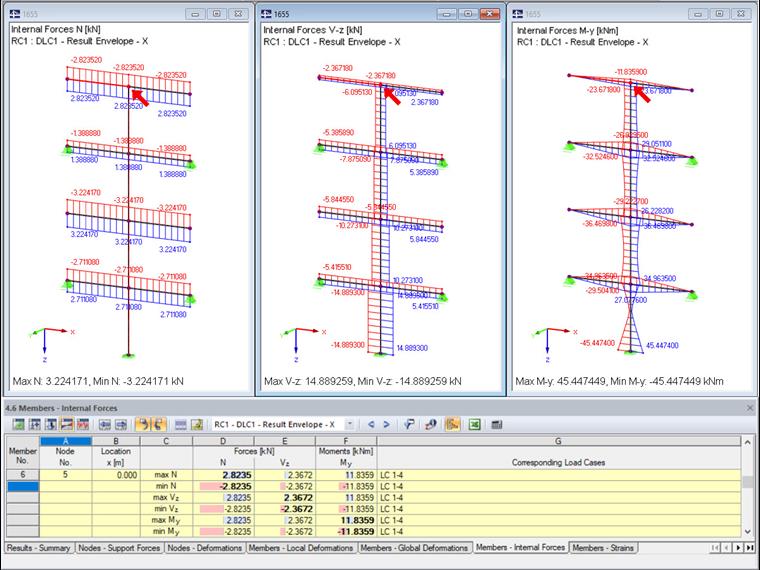

To evaluate these results in RFEM, the generated result combination is considered. The maximum results are shown in the graphic as well as in Table "4.6 Members - Internal Forces".

Now the internal forces are calculated by the modified SRSS rule. Due to the equivalent linear combination, the internal forces and moments are calculated separately for each maximum action. The following internal forces result for the maximum axial force.

fmaxN,LF1 = 1.361 kN2.823 kN = 0.482fmaxN,LF2 = -0.246 kN2.823 kN = -0.087fmaxN,LF3 = 0.815 kN2.823 kN = 0.289fmaxN,LF4 = -2.322 kN2.823 kN = -0.822

NmaxN = 0.482 · 1.361 kN - 0.87 · (-0.246 kN) + 0.289 · 0.815 kN - 0.822 · (-2.322 kN) = 2.823 kN

Vz,maxN = 0.482 · 0.480 kN - 0.087 · (-1.635 kN) + 0.289 · (-0.556 kN) - 0.822 · 1.546 kN = -1.058 kN

My,maxN = 0.482 · (-2.400 kNm) - 0.087 · 8.174 kNm + 0.289 · 2.781 kNm - 0.822 · (-7.732 kNm) = 5.292 kNm

Now, this procedure must be carried out for all actions. The resulting internal forces and moments are shown in the following table.

 Axial force NShear force VzMoment My
Max N2.823 kN-1.058 kN5.292 kNm
Min N-2.823 kN1.058 kN-5.292 kNm
Max Vz-1.263 kN2.367 kN-11.836 kNm
Min Vz1.263 kN-2.367 kN11.836 kNm
Max My1.263 kN-2.367 kN11.836 kNm
Min My-1.263 kN2.367 kN-11.836 kNm

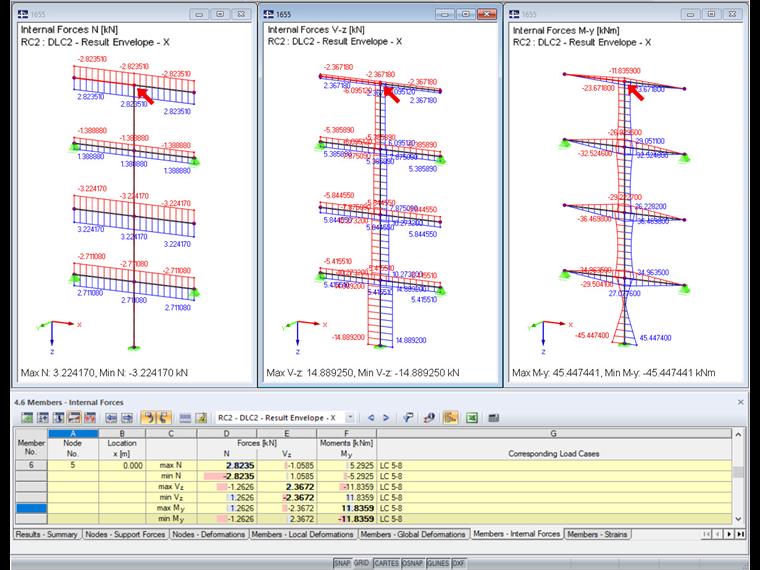

The graphic in RFEM still shows only the maximum internal forces and moments. However, the differences are visible in the table.

Conclusion and Additional Applications

It was possible to show that the corresponding internal forces are preserved by using the equivalent linear combination. If this combination rule is used and imported into the design modules, you usually get more economical results. An example of this use in an add-on module can be found in the links.

It is also possible to use the equivalent linear combination outside of the RF-/DYNAM Pro add-on module. It can be activated in the calculation parameters for any result combination, provided that the SRSS rule is used. The procedure is similar for the CQC rule. However, the CQC rule can only be used for those result combinations in which only load cases of the earthquake category have been used and the parameters of the CQC rule have been defined in the load case itself.

The question that remains unanswered is, which combination rule should finally be used for the design? In any case, the CQC rule provides more accurate results, as it can take into account the relevance of mode shapes lying close to each other. The SRSS rule can be used in manual calculations. In computer-aided calculations, for example in RFEM and RF-DYNAM Pro, we recommend using the CQC rule written as a linear combination, as this provides correct and economical results in all cases. The increased computational effort is negligible.


Author

Ms. Effler is responsible for the development of products for dynamic analysis and provides technical support for our customers.

Links
References
  1. Eurocode 8: Auslegung von Bauwerken gegen Erdbeben - Teil 1: Grundlagen, Erdbebeneinwirkungen und Regeln für Hochbauten; EN 1998-1:2004/A1:2013
  2. Katz, C.: Anmerkung zur Überlagerung von Antwortspektren. D-A-CH Mitteilungsblatt, 2009.
  3. Handbuch RF-DYNAM Pro. Tiefenbach: Dlubal Software, Januar 2020.
