Garage Pétry à ROOST

Structures Analysed with Dlubal Software

  • Customer project

Customer Project

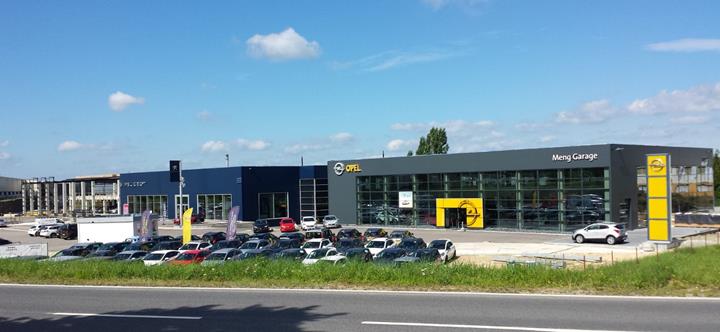

In Roost, Luxembourg, a new building complex is being built that relates to cars. Up to six car dealerships, a parking area, and a paint shop will be built on the site. The construction project was divided into two planning phases. The first phase includes three multi-story car dealerships. They have the same supporting structure.

Investor Jos Petry
124 R. Ste Anne
L-5471 Wellenstein, Luxembourg
Project Management Réalisation Immobilière Industrielle S.A./AG
www.rii-sa.lu
Structural Analysis and Construction SCHATZ Engineering GmbH & Co. KG
www.schatz-engineering.eu

Dimensions of the car dealership

Model

Schatz Engineering, a customer of Dlubal Software, was responsible for the structural and design engineering of the building complex. RSTAB was used for structural design, and Tekla Structures for the design engineering.

Structure

The three structurally identical car dealerships have the external dimensions (L x W x H) of about 121 ft x 92 ft x 43 ft.

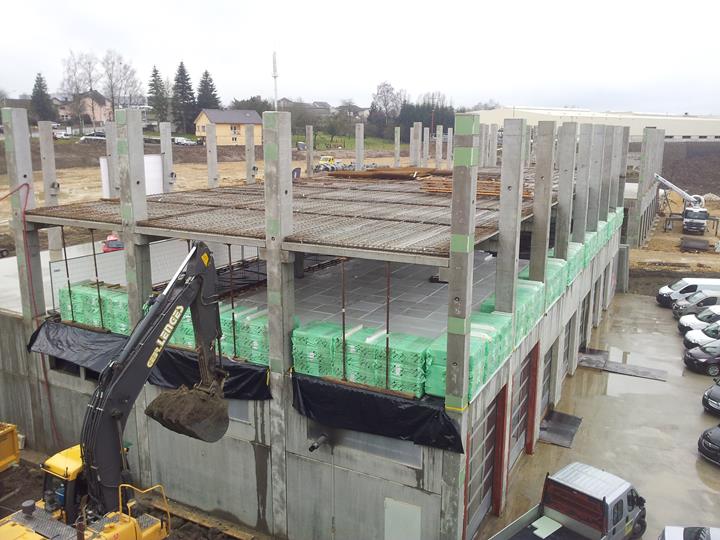

The supporting structure consists of precast columns with molded foundations. Precast concrete supports are placed on column corbels. The walls were designed as concrete hollow walls. The floors and ceilings are made of precast concrete slabs. The roof structure and the façade substructure were designed as a steel structure.

BIM Planning with RSTAB and Tekla Structures

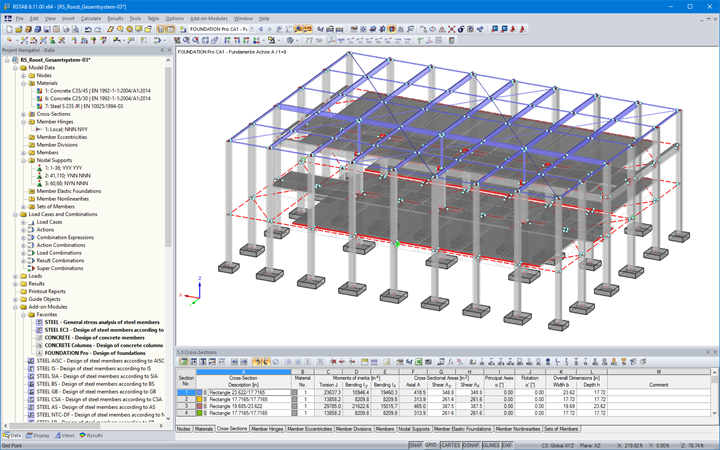

The project planning was carried out in Tekla Structures. The Tekla model was transferred to RSTAB using the direct interface. After performing the structural analysis, beam dimensions were updated in the Tekla model.

Tekla Structures was also used to create formwork and reinforcement drawings for the precast concrete elements, garage design, schemes, and NC data for the steel structure, among other things.

Project Location


Keywords

Luxembourg Concrete structure Steel structure Building
