Residential Complex with Industrialized Steel Framing System in Torrejón de Ardoz, Spain
Customer Project

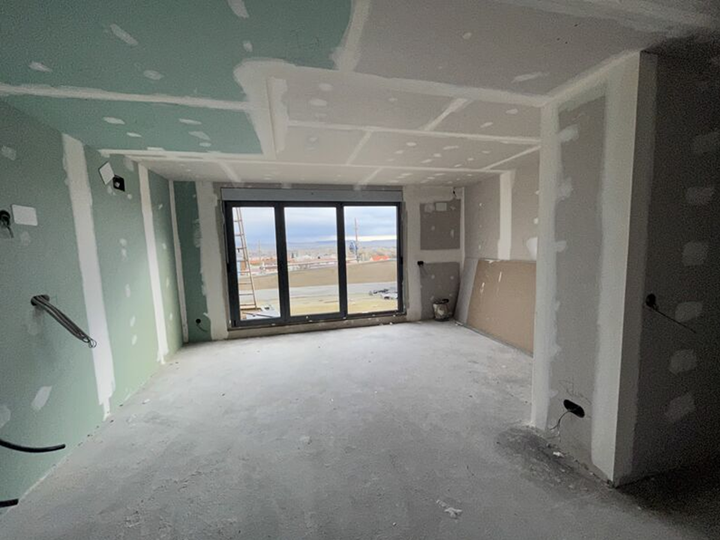

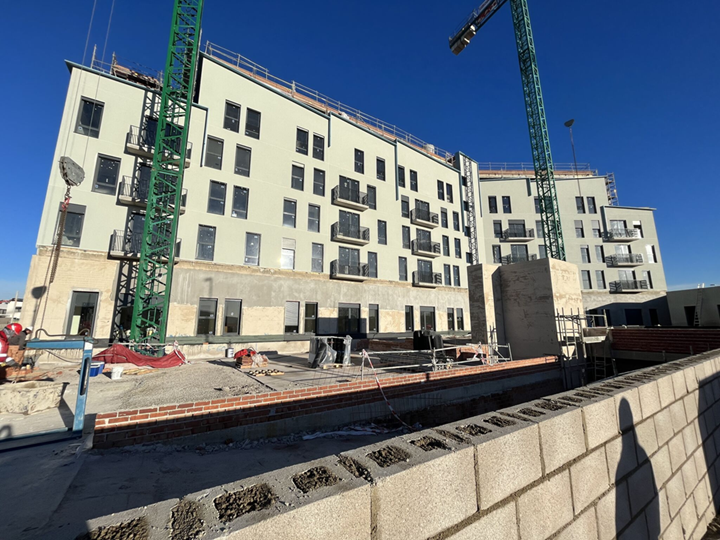

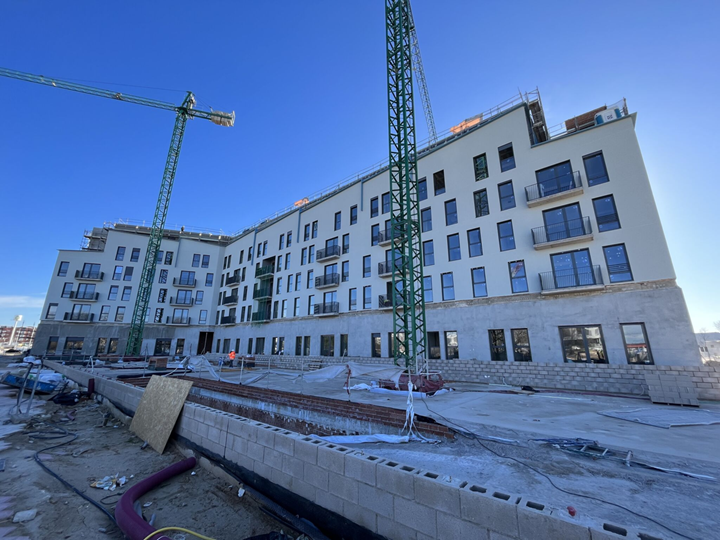

A developer project of 121 apartments in 2 identical buildings for rent with an area of 53,820 ft² each, designed by CIP ARQUITECTOS SL, was built by the construction company ACR in just 13 months of construction, including earthworks, foundations, and basement, using the industrialized Steel Framing system by AFCA Teccon, a customer of Dlubal Software.
| Structural Analysis | AFCA TECCON |
| Architectural Design | CIP ARQUITECTOS SL |
| Construction | ACR |
Model Data
Model

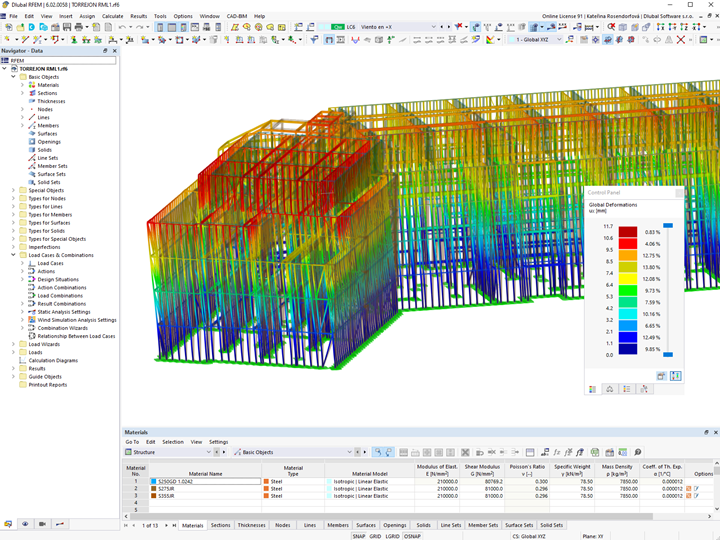

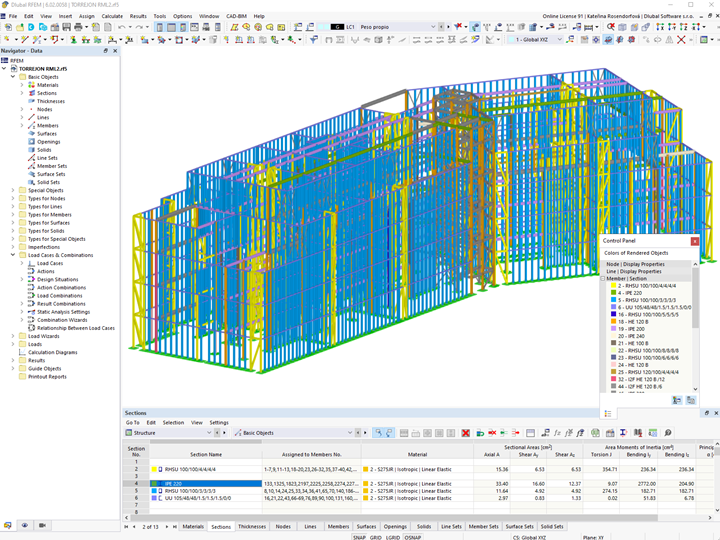

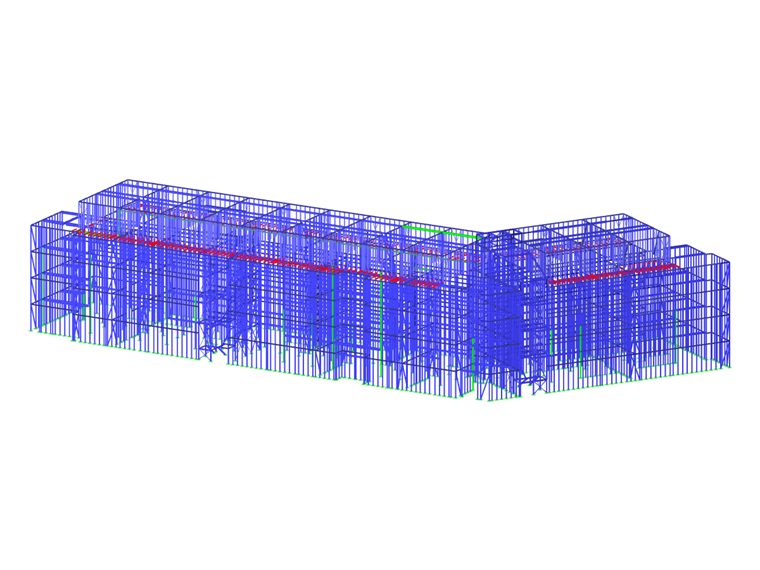

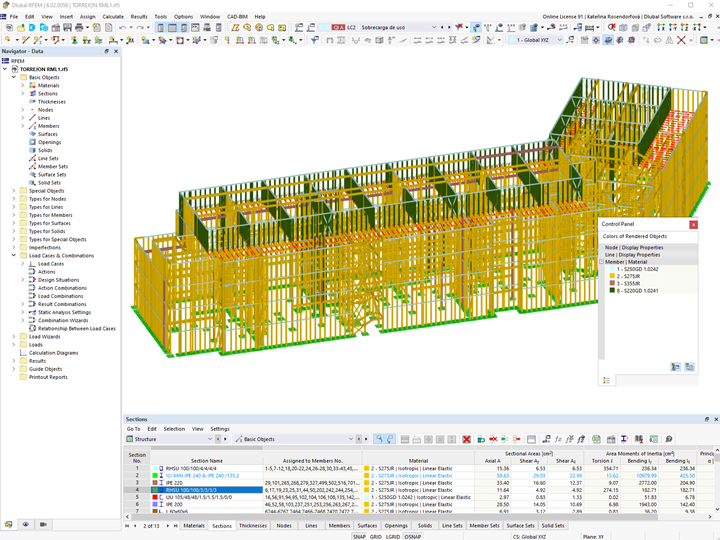

RFEM and the add-ons for steel design, composite floor slabs, stability analysis, and joint analysis were used for the modeling, calculation, and dimensioning of the buildings,
The Afca Teccon system utilizes metal sections (Steel Framing) and a composite floor slab, which form the building skeleton, manufactured using galvanized steel sheets of extremely reduced thickness. This composition makes the structure very light, which has numerous advantages, one of which is the construction speed. In this case, it allowed Afca Teccon to deliver the entire structure and the building enclosure in 14 weeks, moving forward with other craft works on the lower floors while completing the structure. The building will be finished in the next few days.
Project Location
Torrejón de Ardoz, Madrid,Keywords
Residential Building Building Steel Framing
