We provide hints and tips to help you get started with the basic program RFEM.
Structural Analysis & Design of Steel Structures | Dlubal Software
Video
First Steps with RFEM
Description
The structural engineering FEA software RFEM and the frame analysis program RSTAB with steel add-on modules are the optimal solution for the analysis and design of steel structures such as buildings, halls, scaffolding, bridges, silos, cranes, craneways, towers, conservatories, and many others.
Keywords
Steel structure Buckling EN 1993 Earthquake Craneway Connections JOINTS Frame joint Dynamic analysis Design EC Eurocode Eurocodes BIM Building Information Modeling CAD FEA FEM Finite elements Finite element method Structural Design
Links
- Steel Structural Analysis and Design Software
- Product Description | Structural Analysis Program RFEM
- Product Description | Structural Frame Analysis Program RSTAB
Write Comment...
Write Comment...
Contact us
Do you have any questions about our products or need advice on selecting the products needed for your projects?
Contact us via our free e-mail, chat, or forum support or find various suggested solutions and useful tips on our FAQ page.
This technical article analyzes the effects of the connection stiffness on the determination of internal forces as well as the design of connections using the example of a two-story, double-spanned steel frame.

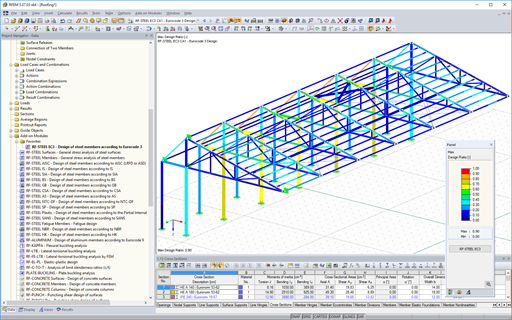

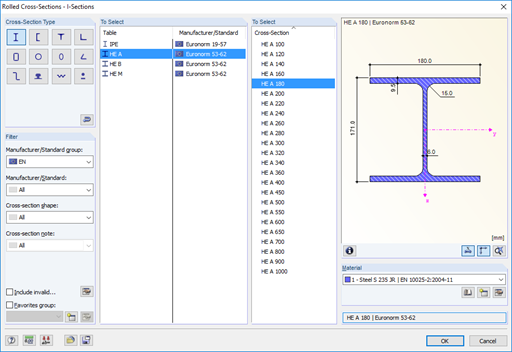

RF-/STEEL EC3 imports the cross-sections defined in RFEM/RSTAB automatically. It is possible to design all thin-walled cross-sections. The program automatically selects the most efficient method according to standards.
The ultimate limit state design takes into account several loads and you can select the interaction designs available in the standard.
The classification of designed cross-sections into the Classes 1 to 4 is an essential part of the analysis according to Eurocode 3. In this way, you can check the limitation of the design and rotational capacity by means of the local buckling of cross-section parts. RF-/STEEL EC3 determines the c/t-ratios of the cross-section parts subjected to compression stress and performs the classification automatically.

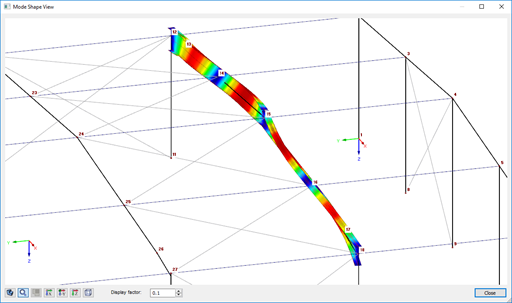

For the stability analysis, you can specify for each member or set of members whether flexural buckling occurs in the y- and/or z-direction. You can also define additional lateral restraints in order to represent the model close to reality. Slenderness ratio and elastic critical load are automatically determined on the basis of the boundary conditions of RF-/STEEL EC3. The elastic critical moment for lateral-torsional buckling required for the lateral-torsional buckling analysis can be determined automatically or specified manually. Also the load application point of transverse loads, affecting the torsional resistance, can be considered by setting of details. In addition, you can take into account rotational restraints (for example trapezoidal sheeting and purlins) and shear panels (for example trapeziodal sheeting and bracing).
In modern construction using more and more slender cross-sections, the serviceability limit state represents an important factor in structural calculations. RF-/STEEL EC3 assigns load cases, load combinations, and result combinations to different design situations. The respective limit deformations are preset in National Annex and can be adjusted, if necessary. In addition, it is possible to define reference lengths and precambers for the design.
