Using Member Hinges with Clearance

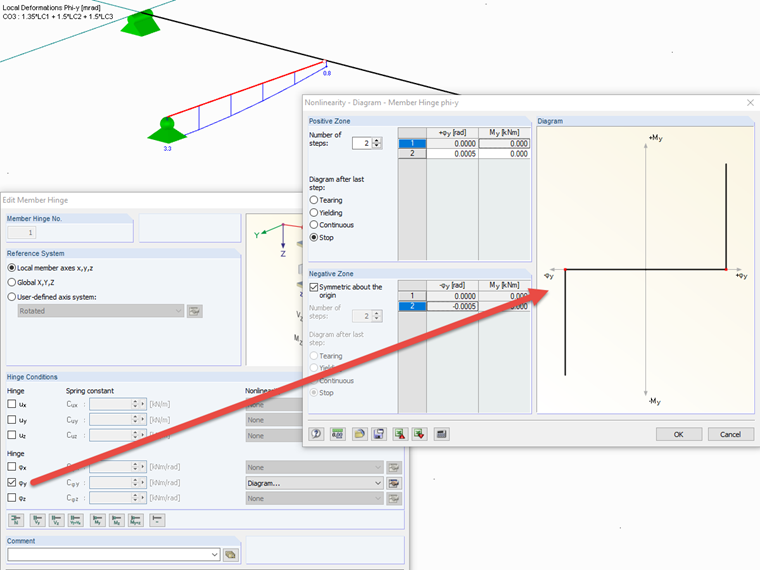

To simulate a support clearance in a connection between members, you can use the "Diagram" function for member hinges. To use this function, first define the according degree of freedom as release. Then, you can select the "Diagram" function form the drop‑down list.

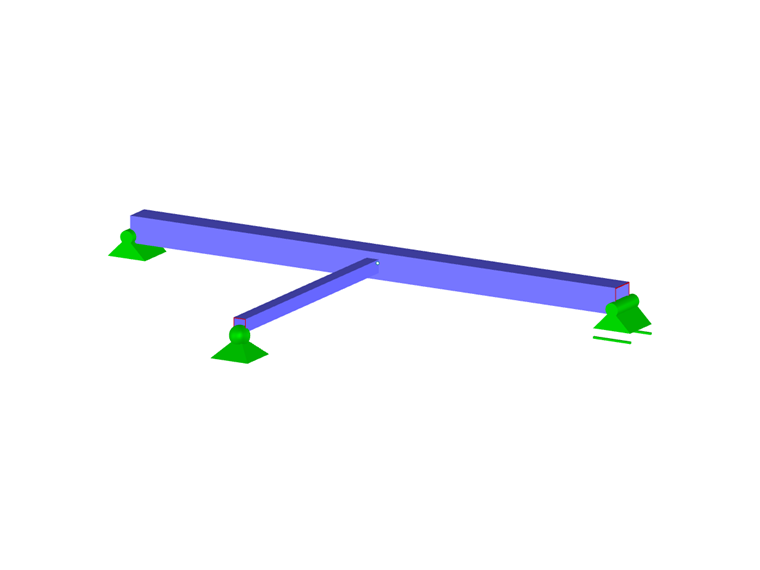

The picture shows an example for the usage of such a clearance. A beam on two supports is connected in the middle by another member that is also supported on its end.
The connection between the beam and the secondary beam has been realized with a member hinge with clearance. Due to this clearance, no torsional moment is reached in the main beam in load combinations 1 and 2. In load combination 3, only the load was increased. Because the support clearance is now fully utilized and the member transfers the full force, the main beam is subjected to torsion.
