# Nonlinear Calculation of a Floor Slab Made of Steel Fiber-Reinforced Concrete in the Ultimate Limit State with RFEM

## Technical Article on the Topic Structural Analysis Using Dlubal Software

### Technical Article

Steel fiber-reinforced concrete is mainly used nowadays for industrial floors or hall floors, foundation plates with low loads, basement walls, and basement floors. Since the publication in 2010 of the first guideline about steel fiber-reinforced concrete by the German Committee for Reinforced Concrete (DAfStb), a structural engineer can use standards for the design of the steel fiber-reinforced concrete composite material, which makes the use of fiber-reinforced concrete increasingly popular in construction. This article describes the nonlinear calculation of a foundation plate made of steel fiber-reinforced concrete in the ultimate limit state with the FEA software RFEM.

An earlier technical article describes how to determine the material properties of steel fiber-reinforced concrete and convert these material parameters in the FEA software RFEM. Pure steel fiber-reinforced concrete is mainly used for industrial floors and moderately loaded foundation plates. A linear elastic determination of internal forces does not provide any economical results for purely fiber-reinforced structural components. Therefore, plastic methods are usually used for the ultimate limit state. However, these plastic approaches are rather unsuitable for the serviceability limit state. A nonlinear FEM calculation is always possible, regardless of the analyzed limit state. We perform the design manually, based on the iteratively determined internal forces.

#### Entering the Topology and Loads

The floor slab is entered as a foundation surface. For the foundation slab of this technical article, the foundation is realized with the "effective soil" method according to Kolar and Nemec [3]. The adjacent soil is taken into account by additional line springs and single springs in the corners (see also this article). You can also calculate the surface elastic foundation with the RF-SOILIN add-on module.

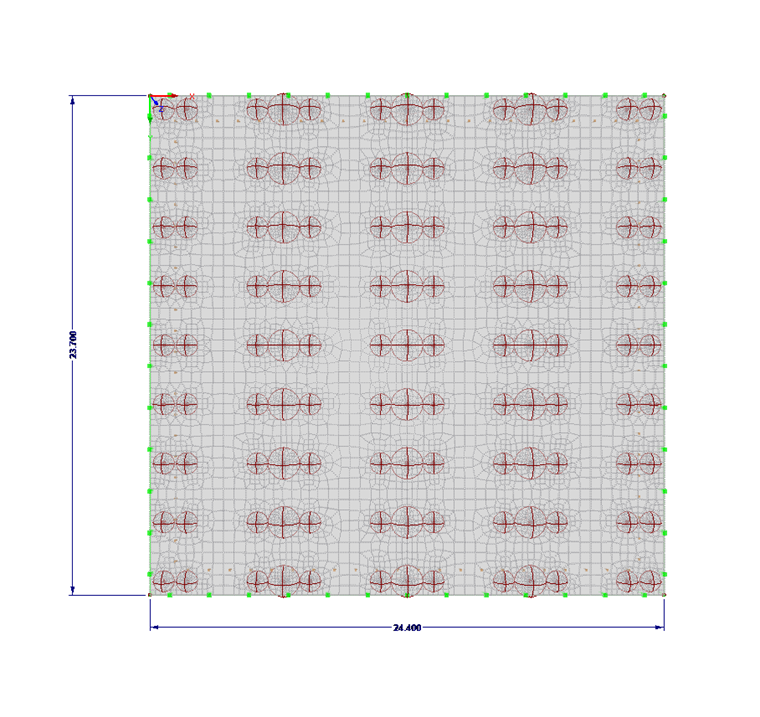

The ultimate limit state design is shown by the loads from the shelf supports and the load under the shelves. The shelf support loads are defined as free rectangular loads. Additionally, points with mesh refinements have been arranged on the shelf supports so that the load is distributed into the base plate distributed over several elements.

#### Defining Material Properties

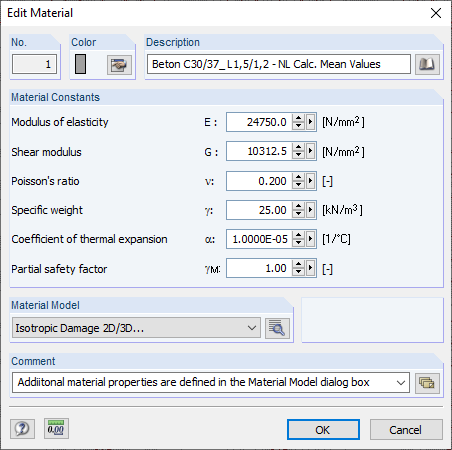

Use the "Isotropic Damage 2D/3D" material model of the RF-MAT NL add-on module to display the material behavior of steel fiber-reinforced concrete in RFEM. For steel fiber-reinforced concrete, we use a C30/37 L1.2/L0.9 concrete according to DIN EN 1992-1-1 [2] and the guideline by the German Committee for Reinforced Concrete (DAfStb) on steel fiber-reinforced concrete [1] with the two performance classes L1/L2 = L1.2/L0.9. For a nonlinear calculation, we apply the parabolic distribution according to 3.1.5 [2] on the compression side of the stress-strain diagram. The following figure shows the characteristic distribution of the working line of the above-mentioned steel fiber-reinforced concrete.

We have to use the characteristic stress-strain curve for the serviceability limit state. For the nonlinear calculation of the ultimate limit state, you have to apply the following according to Chapter 5.7 of the guideline by the German Committee for Reinforced Concrete (DAfStb) on steel fiber-reinforced concrete [1]:

Rd = R (fcR; 1.04 ⋅ ffcrLi; fyR, ftr) / γR
Where
1.04 ⋅ ffcrLi ... is the calculated mean value of the tensile stress that can be absorbed by the steel fiber-reinforced concrete after cracking according to the performance classes L1 or L2
fcR, fyR, ftR ... is the respective mean value of concrete strength according to NA.10, DIN EN 1992-1-1 [2]
γR ... is the partial safety factor for the system resistance. For pure steel fiber-reinforced concrete components, γR is assumed to be 1.4.

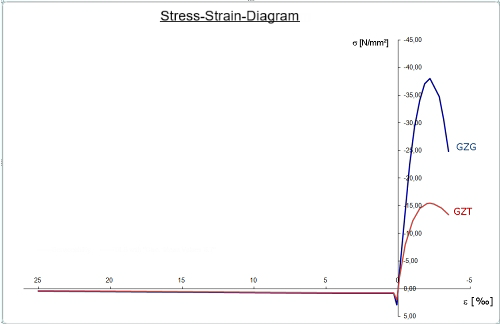

The partial safety factor γR can be considered either on the resistance side, when entering the material properties, or on the action side. In this article, we apply the global partial safety factor γR directly when defining the nonlinear working line. Figure 03 shows the reduced stress-strain curve for the ultimate limit state design in comparison with the characteristic working line for the SLS.

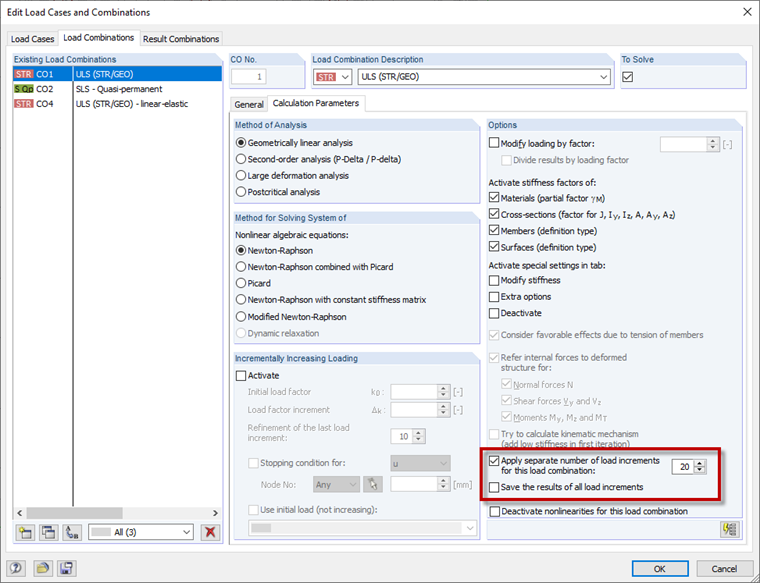

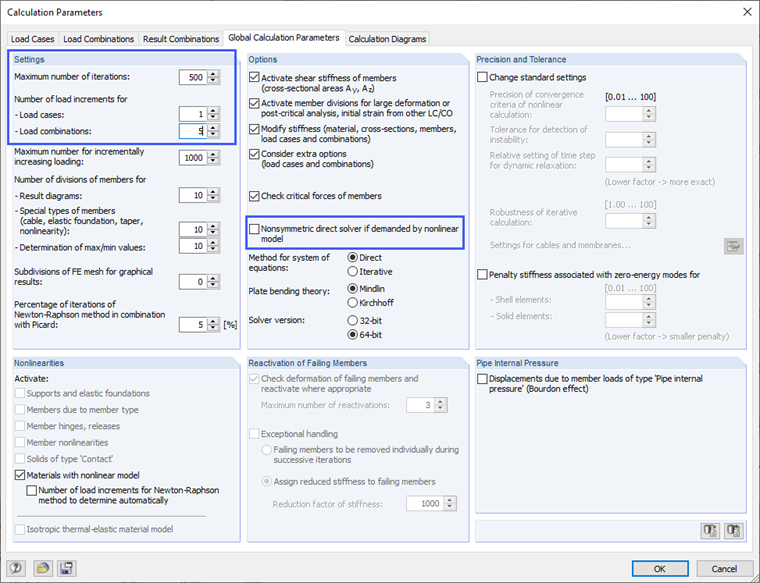

For nonlinear calculations, you have to apply the load step by step. If the calculation of a load increment does not converge within the preset maximum number of iteration steps, increase the maximum number of iteration steps in the calculation parameters. In addition, you can achieve better convergence when using a nonlinear material model by selecting the asymmetrical equation solver in the calculation parameters.

#### Ultimate Limit State Design

The ultimate limit state is considered to be reached if

• the critical ultimate strains of the steel fiber-reinforced concrete εcu1 on the compression side and εfct,u on the tension side are reached.
• the critical state of the indifferent equilibrium is reached in the entire system or in parts of it.

After successful nonlinear calculation of the base plate, the maximum and minimum strains on the top and bottom sides are checked. If the critical ultimate strains are not exceeded, the ultimate limit state design is performed.

Subsequent strains were calculated for the ultimate limit state.

Top side:

• maximum compression strain εmin- = -1.9‰ < 3.5‰
• maximum tensile strain εmax- = 4.2‰ < 25.0‰

Bottom side:

• maximum compression strain εmin+ = -1.05‰ < 3.5‰
• maximum tensile strain εmax+ = 9.9‰ < 25.0‰

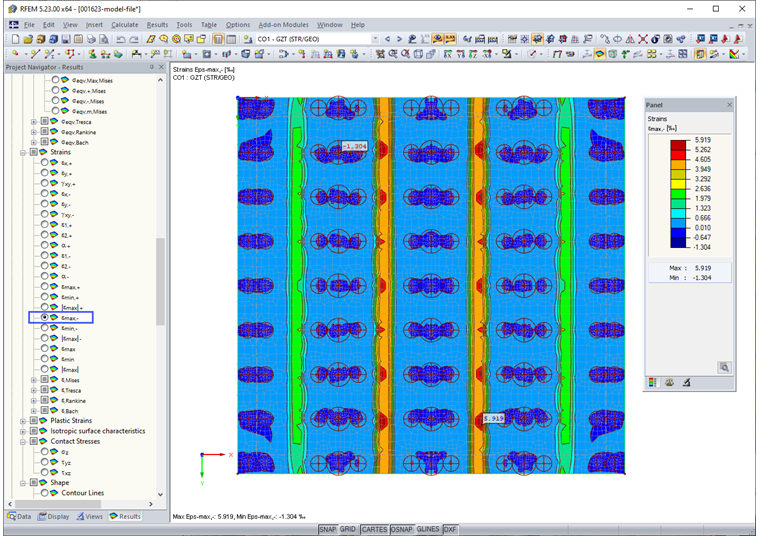

Figure 05 shows the maximum distortion at the top (-z) of the foundation plate.

By adhering to the limit strains, it was possible to successfully determine the ultimate limit state subjected to bending. We have to perform additional designs in the ultimate limit state; for example, punching.

#### Recommendations for Nonlinear Calculation with the "Isotropic Damage 2D/3D" Material Model

Based on the polygonal definition of the stress-strain curve as a diagram, RFEM expects the tangent modulus at the origin of the stress-strain curve as the modulus of elasticity of the steel fiber-reinforced concrete. This means that you have to adjust the preset secant modulus for concrete as well, when entering the steel fiber-reinforced concrete work line. The first polygonal point on the compression or tension side of the work line expects the modulus of elasticity of the material as the slope.

An Excel file is attached to this technical article to support you during the input and calculation of the diagram points. In this Excel file, depending on the analyzed limit state (ULS or SLS), you can determine the stress-strain curve to be used and transfer it to the RFEM input dialog box using the clipboard. This approach is also shown in the attached video.

You can save the defined stress-strain diagrams in RFEM and reuse them in other projects. Thus, you can create your own material library of steel fiber-reinforced concrete in RFEM.

#### Dipl.-Ing. (FH) Alexander Meierhofer

Head of Product Engineering Concrete & Customer Support

Mr. Meierhofer is the development leader of the programs for concrete structures and is available for the customer support team in the case of the questions related to reinforced and prestressed concrete design.

#### Reference

 [1] Stahlfaserbeton - Ergänzungen und Änderungen zu DIN EN 1992-1-1 in Verbindung mit DIN EN 1992-1-1/NA, DIN EN 206-1 in Verbindung mit DIN 1045-2 und DIN EN 13670 in Verbindung mit DIN 1045-3; DAfStb Stahlfaserbeton:2012-11 [2] National Annex - Nationally determined parameters - Eurocode 2: Design of concrete structures - Part 1‑1: General rules and rules for buildings; DIN EN 1992‑1‑1/NA:2013‑04 [3] Vladimír Kolář and Ivan Němec. Modeling of Soil-Structure Interaction. Elsevier Science Publishers with Academica Prague, Amsterdam, edition = 2. 1989.
