KB 001713 | Simplified Blast Design According to AISC Steel Design Guide 26
Video
-
01

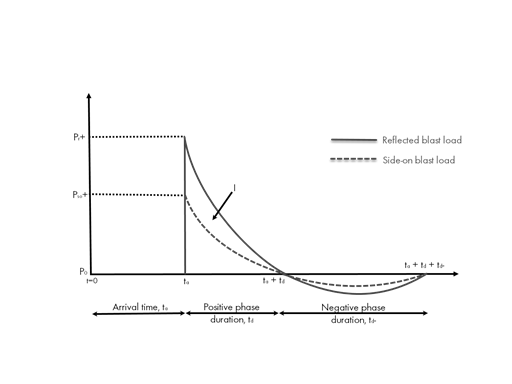

Idealized Blast Pressure-Time History Plot
-
01
Reflected Blast Wave Angle of Incidence
-
01
Simplified Blast Pressure-Time History Diagram
-
01
AISC Design Guide 26 - Example 2.1 Steel Structure in RFEM
-
01
Front Wall Pressure-Time Plot
-
01
Side Walls and Roof Pressure-Time Plot
-
01
Rear Wall Pressure-Time Plot
-
01
Combined Pressure-Time Plot
-
01
Front Wall Area Load Perpendicular to the Blast Load
-
01
RF-DYNAM Pro - Forced Vibrations Time Diagram Definitions
-
01
RF-DYNAM PRO - Forced Vibrations Time Diagram and RFEM Area Load Definitions
-
01
Blast Time History Analysis Steel Structure
First Steps with RFEM
Description
Blast loads from high energy explosives, either accidental or intentional, are rare, but may be a structural design requirement. These dynamic loads differ from standard static loads due to their large magnitude and very short duration. A blast scenario can be carried out directly in a FEA program as a time history analysis to minimize loss of life and evaluate varying levels of structural damage.
