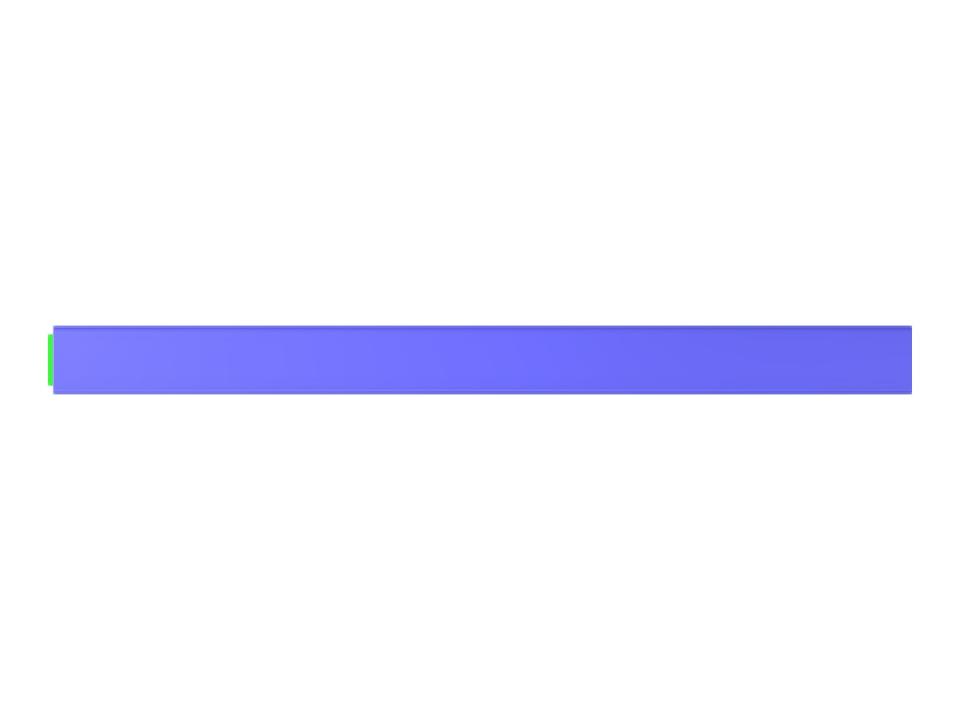

The model shows a cantilever that is restrained on one side, with an I-section cross-section. The warping is restrained at the support. A torsional moment of 10 kNm acts on the free end. The calculation is performed using the Torsional Warping (7 DOF) add-on.
Warping is restrained at the fixed end. The primary torsional moment, Mt,pri, is zero there, and the entire torsional moment is transferred as a secondary torsional moment, Mt,sec, via Warping Torsion. The warping bimoment, Mω, reaches its maximum value of 15.70 kNm² at this point. Toward the free end, St. Venant torsion accounts for the majority (Mt,pri = 9.16 kNm, Mt,sec = 0.84 kNm). At every point, the sum of Mt,pri and Mt,sec yields the applied torsional moment of 10 kNm.
Torsional Warping of Cantilever Beam – Division into Mt,pri and Mt,sec
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.332 t |
| Dimensions (Metric) | 5.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
