Dragon Flight, X-Train Flying Launch Coaster in Ningbo, China

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

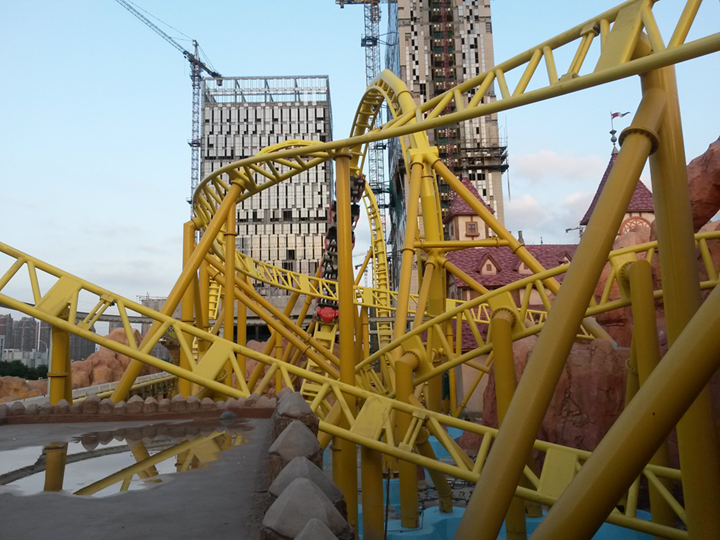

In many industrial sectors, China is the future market. This is also the case for the entertainment field, in which the German company Maurer Söhne works.The Dragon Flight roller coaster is being built for Romon U‑Park, an urban theme park in Ningbo. It is the first X‑Train Flying Launch Coaster designed by Maurer Söhne.

Structural Engineering Structural Design and Fabrication
Maurer Söhne GmbH & Co.KG, Munich, Germany
www.maurer.eu
Investor Romon U-Park
Ningbo, China

Model

The roller coaster has a length of 1,653.5 ft. Its seven roller coaster elements include three inversions. The X‑train has a capacity of 20 passengers. With top speeds of 56 mph, the train reaches up to 4.5 g (g‑force) several times.

Structural System

The base area is 370.7 ft × 167.3 ft. At the highest point of the coaster ride, which is called the top hat, a vertex height of approximately 98 ft is reached. The overall structure consists of a tubular structure with 6,201 members and 86 cross‑sections.

Structural Analysis

The rail structure was calculated in RSTAB. Both model and wheel loads were directly imported from the dynamic simulation using RS‑COM.

The analysis was performed according to Chinese and European standards. The analysis included ultimate limit state design and fatigue design.

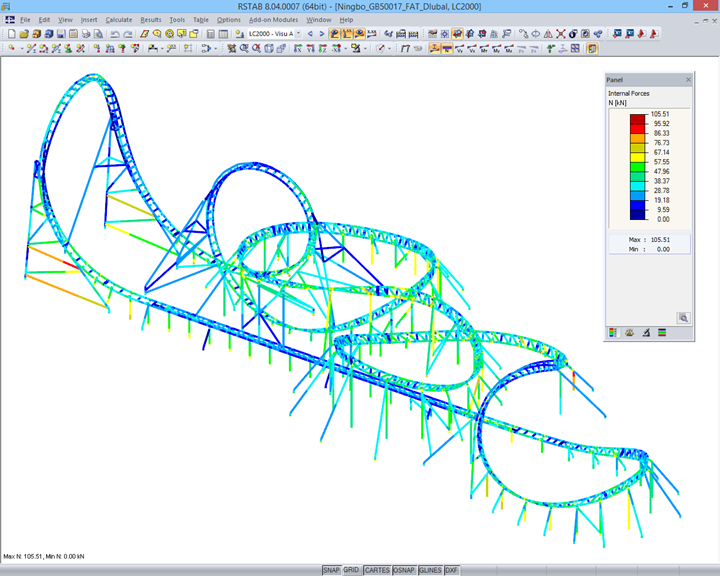

The German engineers accessed the RSTAB results by using RS‑COM again for the fatigue designs. Then, the design according to EN 1993‑1‑9 and GB 50017 was carried out with post-processing programs.

RS-COM was used again to return the results of the post-processing programs to RSTAB in order to represent the results graphically on the rendering of the entire model.
