Mountain and Valley Station of the Klein Matterhorn 3S Cableway in Zermatt, Switzerland
After more than 2 1/2 years of construction, the world’s highest 3S cableway, "Matterhorn glacier ride", opened at the end of September 2018. The $55 million project was developed to increase passenger capacity to the Klein Matterhorn, at an altitude of 12,802 ft. Additionally, it’s now possible to keep the service running when performing maintenance work to the existing tramway.
Zermatt Bergbahnen AG, Switzerland
Peak Architekten, Switzerland
Indermühle Bauingenieure, Switzerland
|Reinforced Concrete Design||
LABAG AG, Switzerland
Brawand Zimmerei AG, Switzerland
Model Data of the Valley Station
Dlubal customer Indermühle Bauingenieure was responsible for the mountain and valley station timber engineering. This included the preliminary project scope, construction supervision, and 3D project planning on behalf of the wood construction company. The structural design was performed in RFEM.
Both station buildings were designed with timber materials rather than steel to meet the 30-minute (R30) fire resistance design requirement. Timber was also the better option due to design and environmental considerations.
Mountain Station Structure
The building dimensions are 125 ft x 89 ft and include a crystal shape similar to the existing mountain station. The structure is designed to withstand snow and avalanche loads up to 1,228.8 lbs/ft²! The building can also endure wind loads up to 65.5 lbs/ft², which is more than three times the wind magnitude for structures designed on the plains.
The timber structure is composed of rigid frames which lean against one another. The span has been reduced by struts oriented toward the rock face. Since it was possible to transport only structural components with a maximum length of 39 ft, the downstand beams and supports were rigidly connected on site.
Valley Station Structure

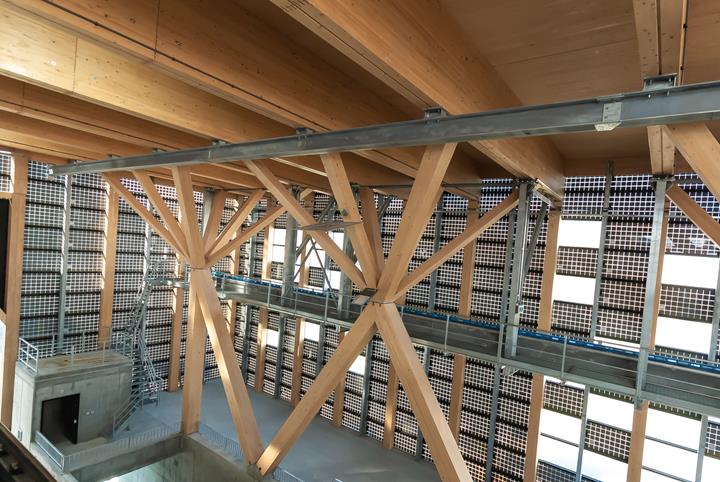

The 131 ft x 499 ft cross-section primary beams consist of a 10 ft, 12 in length, which rest on fan-shaped struts. The concrete slab, which cantilevers 19 ft to the west side, is suspended from the roof structure by façade supports. A similar concept is applied to the parking rails and hall crane.
Do you have questions or need advice?
Contact our free e-mail, chat, or forum support or find various suggested solutions and useful tips on our FAQ page.
In this article, the adequacy of a 2x4 dimension lumber subject to combined bi-axial bending and axial compression is verified using RF-/TIMBER AWC add-on module. The beam-column properties and loading are based on example E1.8 of AWC Structural Wood Design Examples 2015/2018.

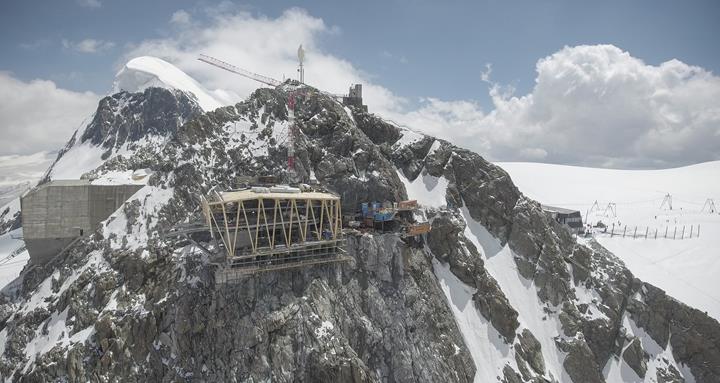

3S Cableway Klein Matterhorn Mountain Station During Assembly with Existing Mountain Station on the Left (© Aircam Zermatt)

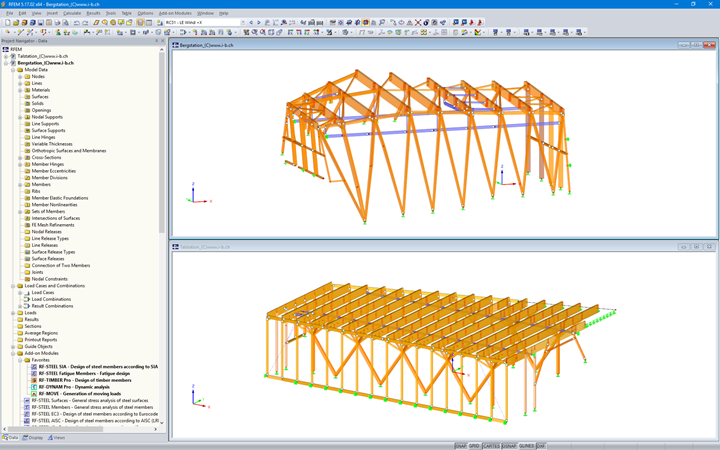

RFEM Model of the Mountain Station (top) and the Valley Station (Bottom) (© Indermühle Bauingenieure)
