Image - Timber Roof of Shopping Mall, Italy
In 2018, Alì Supermercati decided to extend its existing regional commercial network with a new shopping mall located in Via Noalese, Treviso, Italy. The project, designed by Studio Signorotto Architettura of Treviso, includes a glued laminated timber roof, which integrates with the area’s existing wood structures, characterized by a perfect aesthetic design and quality building material.
| Investor |
Alì SpA Via Olanda 2 - 35127 Padua, Italy www.alisupermercati.it |
| Architectural Design |
Signorotto Architects Via Riccati 7 - 31100 Treviso, Italy www.eastsuperdos.com |
| Structural Design and Timber Construction |
Holz Albertani SpA Loc. Forno Allione - 25040 Berzo Demo, Italy www.holzalbertani.it |
Model

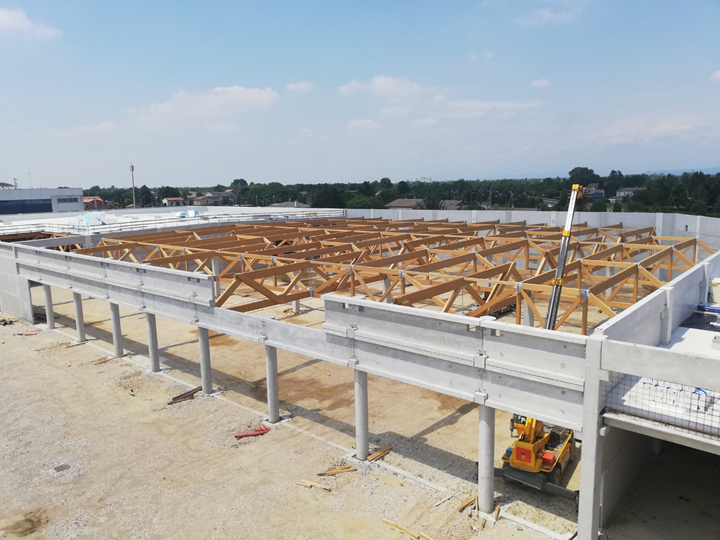

Holz Albertani SpA, an Italian leader in timber construction, was awarded the construction and structural design contract for the timber roof supported by reinforced concrete columns. The 72,118 ft² area roof includes trusses connected transversely with stabilizing members in two main directions and a glued laminated timber decking.
Structural Design

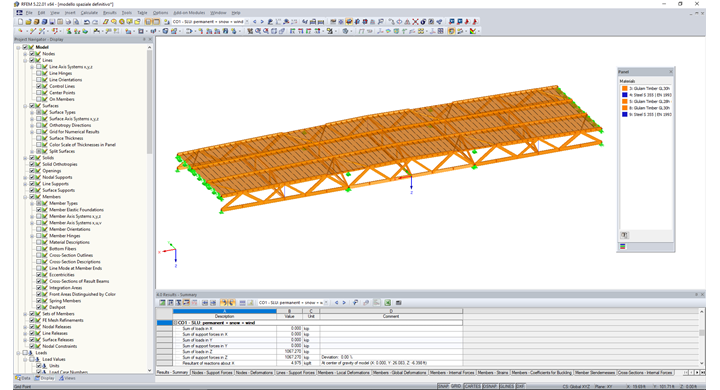

The Holz Albertani SpA engineering office completed the structural design while taking into consideration the architectural requirements set by Signorotto Architects. RFEM structural analysis software and the RF-LAMINATE and RF-DYNAM Pro add-on modules were used in the design calculation for the orthotropic roof surface to evaluate the static analysis in combination with dynamic loads. As the detailed structural design harmonized perfectly with the architectural requirements, the roof was assembled in a relatively short period of time while keeping construction issues to a minimum.

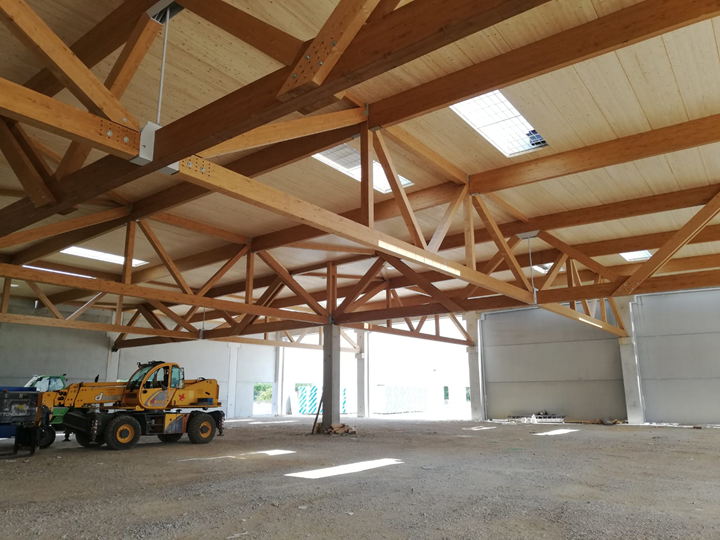

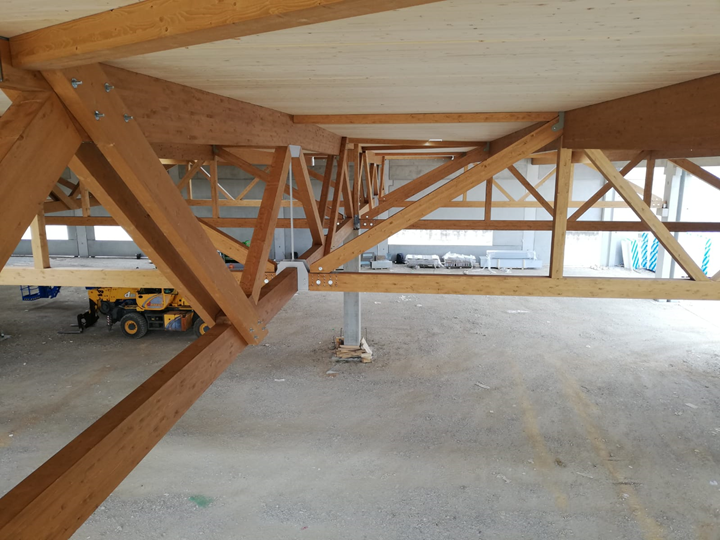

The main structure includes trusses with a maximum span of about 66 ft between the supporting columns. The roof set on the main trusses consists of a 3 5⁄32-inch-thick glued laminated timber slab. The timber members are connected along the trusses as well as to the exterior reinforced concrete frame.
The finished structure includes not only high aesthetic and functional quality, but is also designed to meet the current seismic design requirements.
