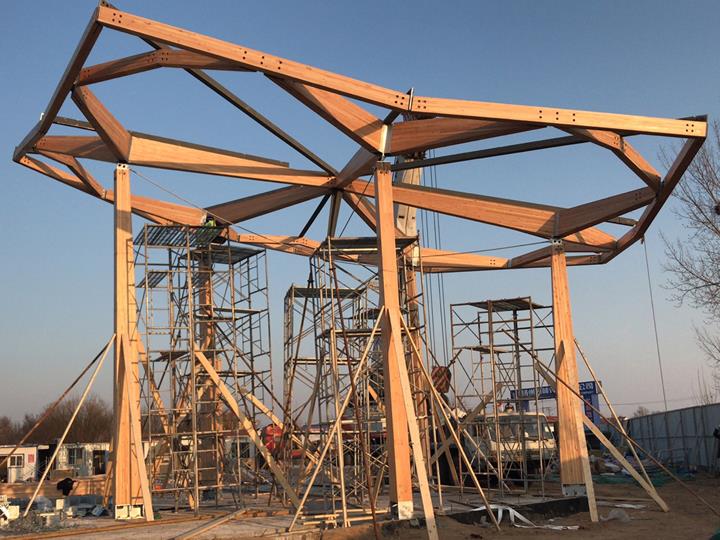

Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01

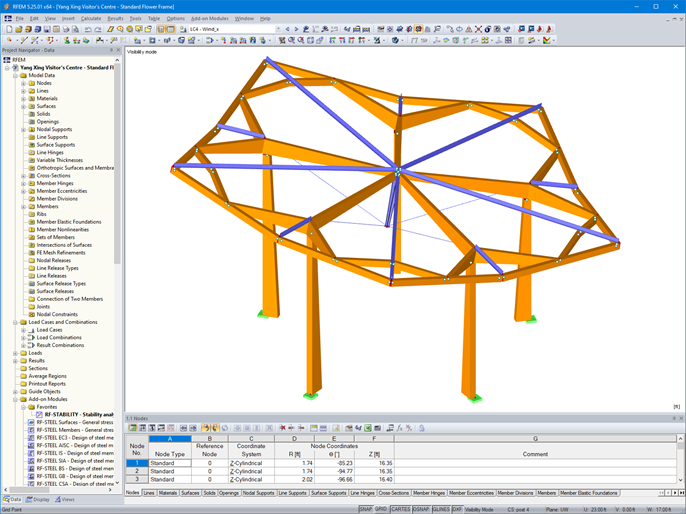

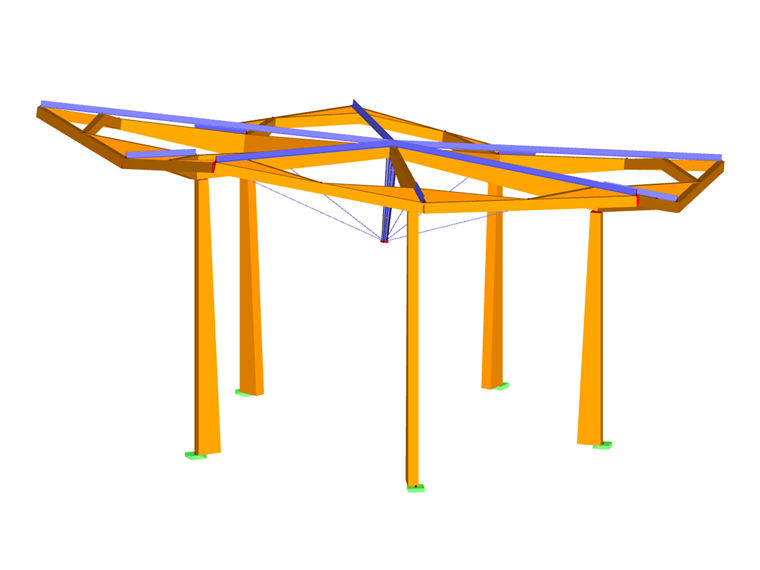

Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01

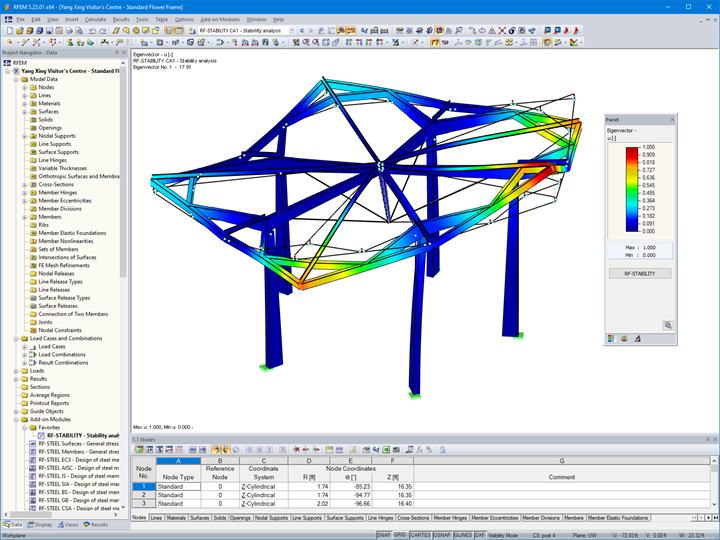

Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01

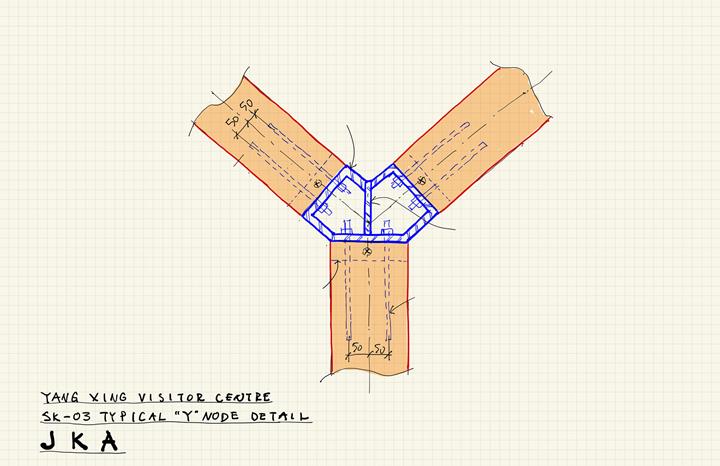

Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
01
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
02
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
02
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
02

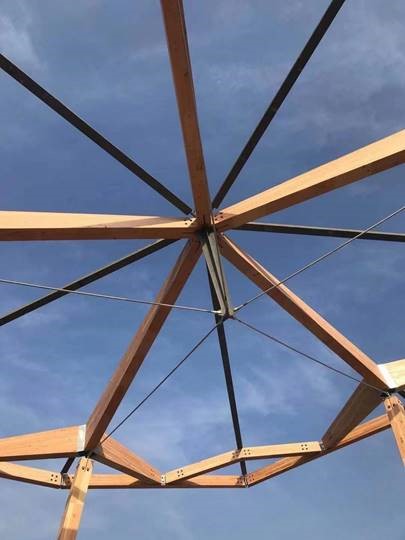

Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
03
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
03
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
04
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
04
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
05
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
05
Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
06
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
06
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
06
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - Installation of Roof Ridge Node (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - Individual Blossom Structure During Construction (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - Rendering of the Visitor Center's Interior (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - 1st Mode Shape Calculated in RF-STABILITY (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - Hand-Drawn Sketch of Y-Shaped Connection (© Jing Kong & Associates Consulting Structural Engineers Inc.)
-
07
Image - The new visitor center is located in Yangxin in the province of Shandong in China.
-
07
Image - 3D Model of Single Element in RFEM (© Jing Kong & Associates Consulting Structural Engineers Inc.)
The new visitors' center is located in Yangxin, in the Chinese province of Shandong.
| Client |
Canada Wood Shanghai Headquarters www.canadawood.cn |
| Architect | Shanghai Lvjian Architectural Decoration Design |
| Structural Design |
Jing Kong & Associates Consulting Structural Engineers Inc. jka20.ca |
Model Parameters of a Single Element
Model
The building's hybrid construction utilizes a mass timber structure including tapered glulam columns and beams, as well as steel elements such as the king post, tension rods, and strengthening elements hidden in the roof above the main structure.
The entire roof structure consists of repetitive individual structures resembling pear blossoms. Together, these blossom elements form a perfectly shaped architectural unit. Each of the individual structures is supported on 5 columns with a height of 16 to 23 ft.
The bottom of each column is fixed with steel parts and glued-in rods are employed to make the connection possible. Glued-in rods are also used for the moment connections at the Y-shaped joint of the roof frame. The RFEM structural analysis program was used to fully model the structure, confirm member sizes, and determine the forces for the connection design. In addition, the RF-STABILITY add-on module was further used to calculate the overall buckling analysis for the flower structure and the local buckling analysis for the king post.
The engineering firm JKA, located in Vancouver, Canada provided the full mass timber consulting services, from preliminary design to the critical connection design. JKA are mass timber experts providing their clients with solutions of Integrity, Simplicity & Beauty.
Project Location
Yangxin, Province of ShandongKeywords
Timber Steel Hybrid Roof Roof structure Glued laminated timber
