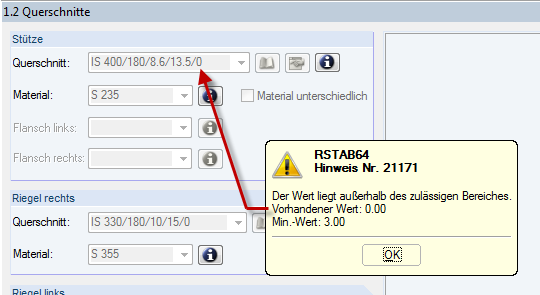

After starting the calculation, RF‑/FRAME‑JOINT Pro opens Window "1.2 Cross‑Sections" and the following message appears: "Value is out of range. Entered value: 0.00 - Min value: 3.00." However, I can't see any error.

Answer

The column consists of a parameterized I‑section (welded cross-section). To be able to use it in RF‑/FRAME‑JOINT Pro, it is also necessary to specify the thickness of the web weld. In the one hand, the weld is determined in the tension area, and on the other hand, the thickness of it is also included in the calculation of the effective length of the T‑stub in RF‑/FRAME‑JOINT Pro.
