Integrated Structural Modeling (ISM) is a standardized data exchange approach by Bentley Systems. With the Bentley ISM interface, beams and surfaces can currently be imported (*ism.dgn *i.dgn). The Bentley ITWIN Analytical Synchronizer and an account for the Bentley Connection Client are required.

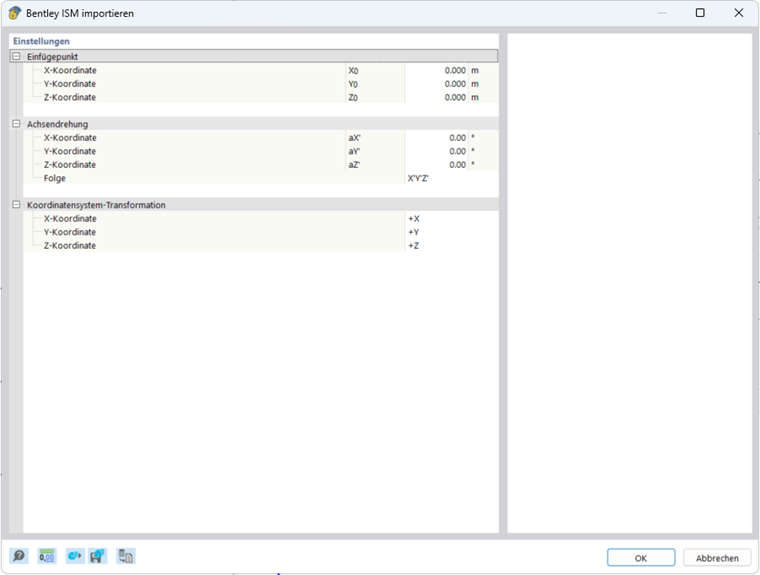

Insertion Point
The insertion point is determined by the model coordinates in RFEM. You can manually change the insertion point along the X, Y, and Z axes.
Axis Rotation
The model can optionally be rotated around the global axes. A positive angle rotates the model clockwise.
The order of axis rotations can be set separately.
Coordinate System Transformation
In the corresponding dropdown menu, you can swap the axes or change the direction of an axis.
