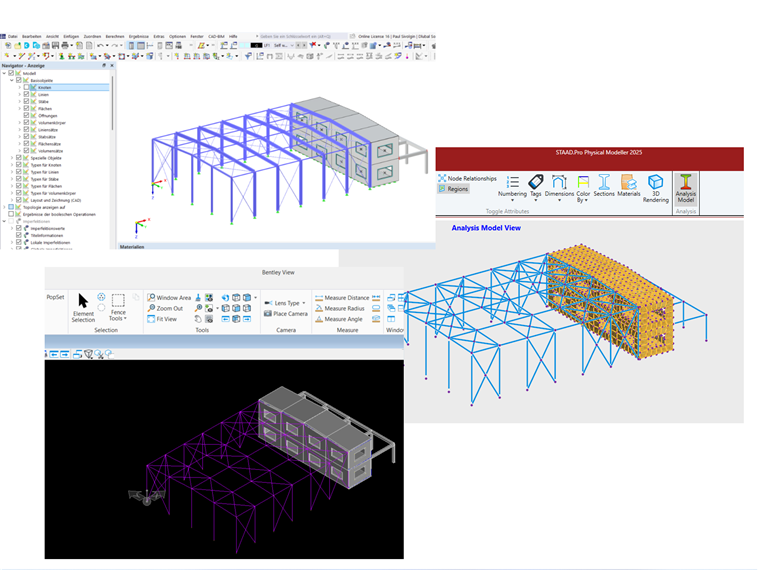

Integrated Structural Modeling (ISM) is a standardized data exchange approach from Bentley Systems.
The Bentley ISM interface can currently be used to transfer members and surfaces (*ism.dgn *i.dgn). The Bentley ITWIN Analytical Synchronizer and an account for the Bentley Connection Client are required.

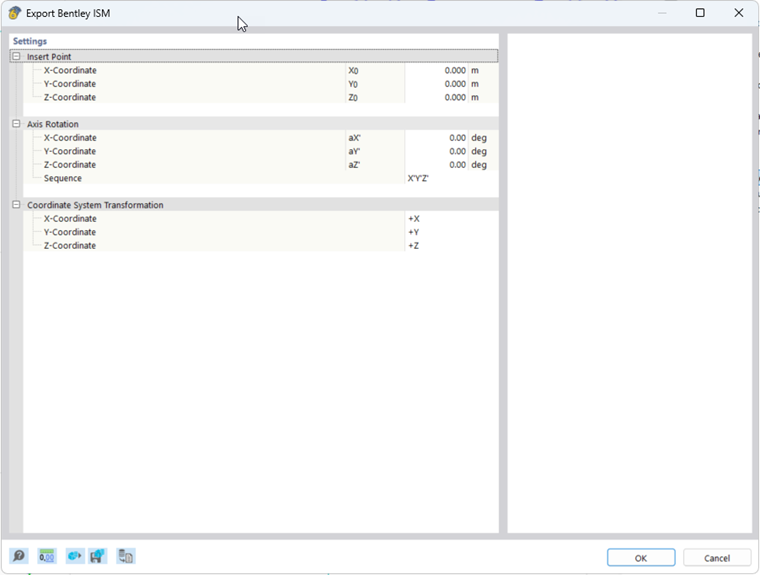

Insert Point
The insert point is based on the model coordinates in RFEM. You can change the insert point manually along the X, Y, and Z axes.
Axis Rotation
The model can optionally be rotated around the global axes. A positive angle rotates the model clockwise.
The sequence of axis rotations can be defined separately.
Coordinate System Transformation
In the corresponding drop-down menu, you can swap the axes or change the direction of an axis.
