Assigning Supports

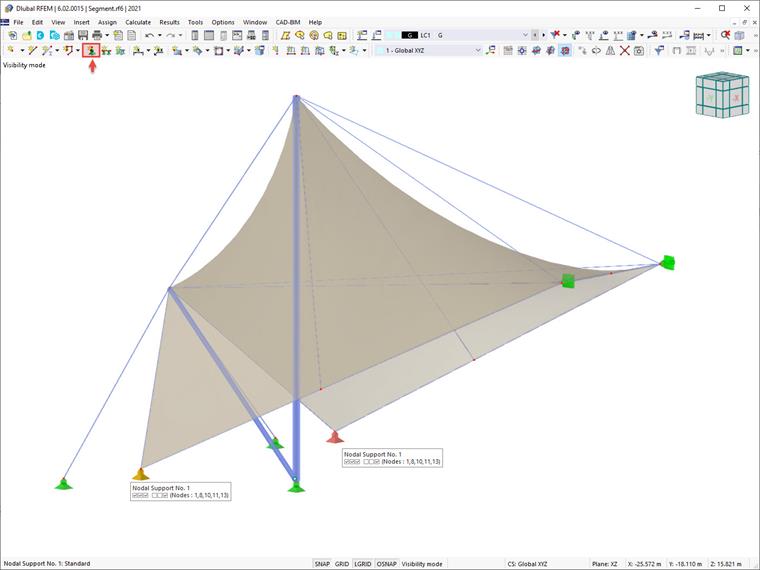

It is also necessary to provide the membrane with supports. Click the Assign Nodal Support button to define a New Nodal Support and assign it to the nodes as shown in Image Nodal Supports.

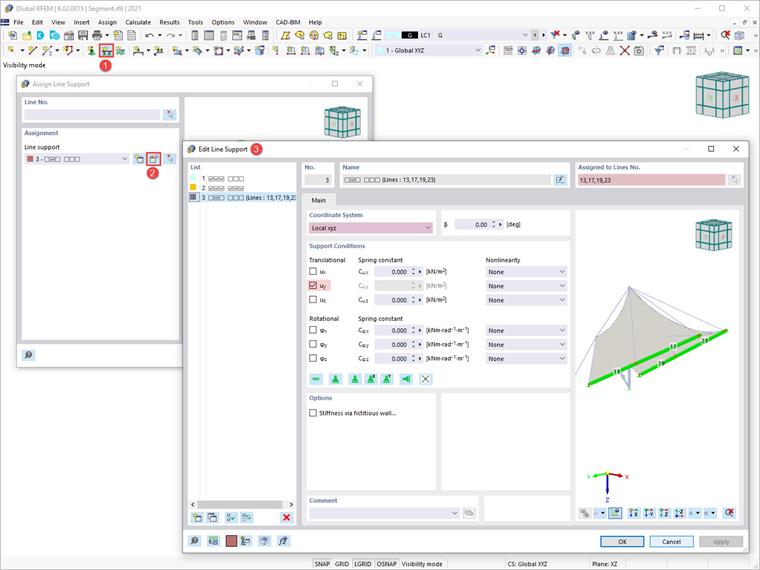

To simulate a rotationally symmetrical support at the edges of the individual segment, arrange line supports there. You can open the corresponding dialog box by clicking the Assign Line Support button in the toolbar. The further process is shown in Image Line Supports.
